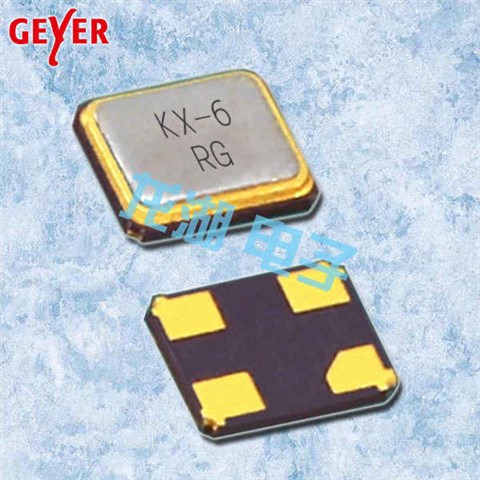

12.86512石英振動子,格耶2520超小型晶振,KX-6物聯網晶振，尺寸2.5x2.0mm，頻率20MHZ，丹麥Geyer晶振，進口無源晶振，石英貼片晶振，SMD晶振，2520mm超小型晶振，無源石英晶體，無源貼片晶振，無源晶振，無源石英晶體，水晶振動子，環保晶振，20MHZ石英晶振，無線網絡晶振，物聯網晶振，智能家居晶振，平板電腦晶振，多媒體設備晶振，游戲設備晶振，儀器設備晶振，健身設備晶振，娛樂信息系統晶振，監控?cái)z像機晶振，高質量晶振，高性能晶振，高精度晶振，低損耗晶振，低功耗晶振，低耗能晶振，具有高精度低損耗的特點。
無源晶振產品常常應用無線網絡，物聯網，智能家居，平板電腦，多媒體設備，游戲設備，儀器設備，健身設備，娛樂信息系統，監控?cái)z像機等領域.12.86512石英振動子,格耶2520超小型晶振,KX-6物聯網晶振.

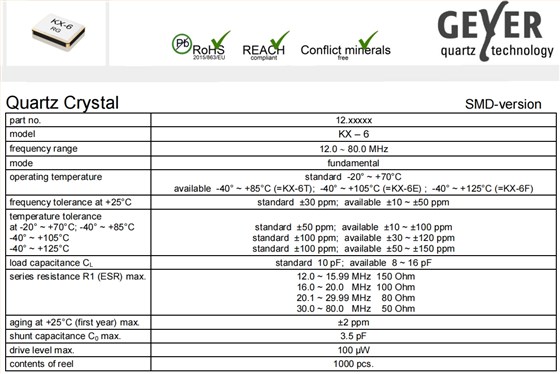

12.86512石英振動子,格耶2520超小型晶振,KX-6物聯網晶振參數表
| part no. | 12.xxxxx | |||
| model | KX - 6 | |||
| frequency range | 20.0 MHz | |||
| mode | fundamental | |||
| operating temperature |
standard-20° ~ +70°C available-40° ~ +85°C (=KX-6T);-40° ~ +105°C (=KX-6E) ;-40° ~ +125°C (=KX-6F) |
|||
| frequency tolerance at +25°C | standard±30 ppm;available±10 ~ ±50 ppm | |||
|
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C |
standard±50 ppm;available±10 ~ ±100 ppm standard±100 ppm;available±30 ~ ±120 ppm standard±100 ppm;available±50 ~ ±150 ppm |
|||
| load capacitance CL | standard10 pF;available8 ~ 16 pF | |||
| series resistance R1 (ESR) max. |
12.0 ~ 15.99 MHz150 Ohm 16.0 ~ 20.0MHz100 Ohm 20.1 ~ 29.99 MHz80 Ohm 30.0 ~ 80.0MHz50 Ohm |
|||
| aging at +25°C (first year) max. | ±2 ppm | |||
| shunt capacitance C0max. | 3.5 pF | |||
| drive level max. | 100 µW | |||
| contents of reel | 1000 pcs. | |||

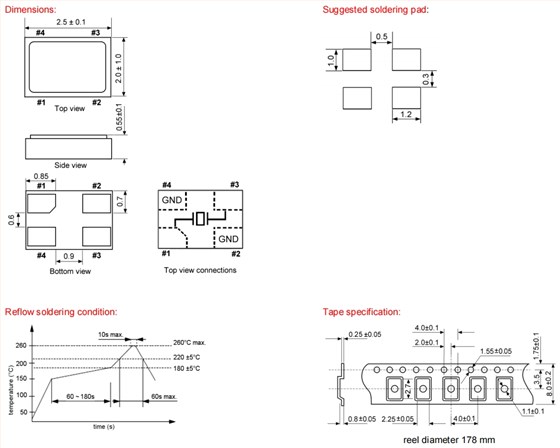

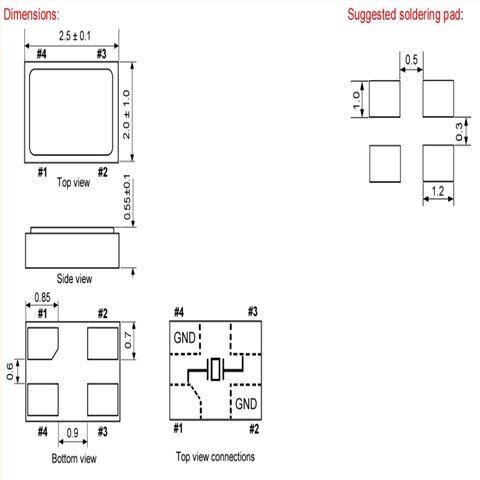

12.86512石英振動子,格耶2520超小型晶振,KX-6物聯網晶振 尺寸圖
12.86512石英振動子,格耶2520超小型晶振,KX-6物聯網晶振
產品特點:
2520貼片晶振單元
符合RoHS無鉛
非常低的老化
超高的可靠性能
| Mfr Part # | Mfr | Description | Series | Frequency | Frequency Stability | Frequency Tolerance |
| 12.60208 | Geyer晶振 | CRYSTAL 26.0MHZ 8PF SMD | KX-7T | 26 MHz | ±10ppm | ±20ppm |
| 12.86531 | Geyer晶振 | Cystal 16.0Mhz 10pF SMD | KX-6T | 16 MHz | ±100ppm | ±30ppm |
| 12.88664 | Geyer晶振 | Crystal 14.3181800Mhz 12pF SMD | KX-7 | 14.31818 MHz | ±50ppm | ±30ppm |
| 12.89495 | Geyer晶振 | Crystal 8.0Mhz SMD KX-9BH 8pF, 4 | KX-9BH | 8 MHz | ±50ppm | ±50ppm |
| 12.89103 | Geyer晶振 | Crystal 10.0Mhz SMD KX-9AE 16pF, | KX-9AE | 10 MHz | ±50ppm | ±30ppm |
| 12.887 | Geyer晶振 | Crystal 30.0Mhz 12pF SMD | KX-7 | 30 MHz | ±50ppm | ±30ppm |
| 12.89131 | Geyer晶振 | Crystal 48.0Mhz SMD KX-9AT 16pF, | KX-9AT | 48 MHz | ±50ppm | ±30ppm |
| 12.86512 | Geyer晶振 | Cystal 20.0Mhz 10pF SMD | KX-6 | 20 MHz | ±50ppm | ±30ppm |
| 12.89126 | Geyer晶振 | Crystal 13.560Mhz SMD KX-9AE 16p | KX-9A | 13.56 MHz | ±120ppm | ±30ppm |
| 12.8655 | Geyer晶振 | Crystal 16.0Mhz 10pF SMD | KX-6E | 16 MHz | ±150ppm | ±30ppm |
| 12.86526 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6T | 26 MHz | ±20ppm | ±10ppm |
| 12.6009 | Geyer晶振 | CRYSTAL 24.0MHZ 12PF SMD | KX-7T | 24 MHz | ±20ppm | ±20ppm |
| 12.88701 | Geyer晶振 | Crystal 40.0Mhz 12pF SMD | KX-7T | 40 MHz | ±100ppm | ±30ppm |
| 12.88493 | Geyer晶振 | Crystal 33.33Mhz SMD KX-7T 12pF, | KX-7T | 33.33333 MHz | ±100ppm | ±30ppm |
| 12.85521 | Geyer晶振 | CYSTAL 26.0MHZ 10PF SMD | KX-5T | 26 MHz | ±20ppm | ±10ppm |
| 12.89078 | Geyer晶振 | Crystal 27.0Mhz SMD KX-9AT 16pF, | KX-9AT | 27 MHz | ±150ppm | ±30ppm |
| 12.86517 | Geyer晶振 | Cystal 24.0Mhz 10pF SMD | KX-6 | 24 MHz | ±50ppm | ±30ppm |
| 12.84812 | Geyer晶振 | Crystal 25.0MHz 8pF SMD | KX-4 | 25 MHz | ±50ppm | ±30ppm |
| 12.88508 | Geyer晶振 | Crystal 24.0Mhz 12pF SMD | KX-7T | 24 MHz | ±50ppm | ±20ppm |
| 12.88711 | Geyer晶振 | Crystal 25.0Mhz SMD KX-7T 12pF, | KX-7T | 25 MHz | ±30ppm | ±30ppm |
| 12.85519 | Geyer晶振 | CYSTAL 20.0MHZ 8PF SMD | KX-5T | 20 MHz | ±50ppm | ±20ppm |
| 12.89027 | Geyer晶振 | Crystal 25.0Mhz SMD KX-9A 16pF, | KX-9A | 25 MHz | ±30ppm | ±30ppm |
| 12.85539 | Geyer晶振 | CYSTAL 40.0MHZ 8PF SMD | KX-5T | 48 MHz | ±20ppm | ±10ppm |
| 12.88721 | Geyer晶振 | Crystal 16.0Mhz 12pF SMD | KX-7T | 16 MHz | ±30ppm | ±30ppm |
| 12.88667 | Geyer晶振 | Crystal 25.0Mhz SMD KX-7 12pF, 4 | KX-7 | 25 MHz | ±50ppm | ±30ppm |
| 12.85517 | Geyer晶振 | CYSTAL 54.0MHZ 8PF SMD | KX-5T | 54 MHz | ±100ppm | ±30ppm |
| 12.89017 | Geyer晶振 | Crystal 13.560Mhz SMD KX-9A 16pF | KX-9A | 13.56 MHz | ±50ppm | ±30ppm |
| 12.89082 | Geyer晶振 | Crystal 26.0Mhz SMD KX-9AT 16pF, | KX-9AT | 26 MHz | ±50ppm | ±30ppm |
| 12.60075 | Geyer晶振 | Cystal 30.0Mhz 8pF SMD | KX-7 | 30 MHz | ±50ppm | ±30ppm |
| 12.89155 | Geyer晶振 | Crystal 32.0Mhz SMD KX-9AT 16pF, | KX-9AT | 32 MHz | ±30ppm | ±30ppm |
| 12.88522 | Geyer晶振 | Crystal 11.059200Mhz 12pF SMD | KX-7T | 11.0592 MHz | ±50ppm | ±30ppm |
| 12.88752 | Geyer晶振 | Crystal 10.0Mhz 12pFSMD晶振 | KX-7 | 10 MHz | ±50ppm | ±30ppm |
| 12.85569 | Geyer晶振 | CYSTAL 27.120MHZ 8PF SMD | KX-5T | 27.12 MHz | ±15ppm | ±10ppm |
| 12.88565 | Geyer晶振 | Crystal 8.0Mhz 12pF SMD | KX-7E | 8 MHz | ±50ppm | ±30ppm |
| 12.85538 | Geyer晶振 | CYSTAL 24.5760MHZ 8PF SMD | KX-5T | 24.576 MHz | ±100ppm | ±30ppm |
| 12.86533 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6T | 26 MHz | ±100ppm | ±30ppm |
| 12.89209 | Geyer晶振 | Crystal 16.0Mhz SMD KX-9AE 20pF, | KX-9AE | 16 MHz | ±50ppm | ±30ppm |
| 12.8652 | Geyer晶振 | Cystal 27.0Mhz 10pF SMD | KX-6 | 27 MHz | ±50ppm | ±30ppm |
| 12.86574 | Geyer晶振 | Crystal 27.0Mhz 8pF SMD | KX-6F | 27 MHz | ±150ppm | ±30ppm |
| 12.85541 | Geyer晶振 | CYSTAL 30.0MHZ 8PF SMD | KX-5 | 30 MHz | ±30ppm | ±30ppm |
| 12.84818 | Geyer晶振 | Crystal 24.0MHz 8pF SMD | KX-4 | 24 MHz | ±50ppm | ±30ppm |
| 12.86527 | Geyer晶振 | Cystal 20.0Mhz 10pF SMD | KX-6T | 20 MHz | ±15ppm | ±10ppm |
| 12.85534 | Geyer晶振 | CYSTAL 27.0MHZ 8PF SMD | KX-5T | 27 MHz | ±50ppm | ±30ppm |
| 12.86505 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6 | 26 MHz | ±50ppm | ±30ppm |
| 12.60024 | Geyer晶振 | Cystal 27.0Mhz 12pF SMD | KX-7E | 27 MHz | ±100ppm | ±30ppm |
| 12.84803 | Geyer晶振 | Crystal 26.0MHz 8pF SMD | KX-4 | 26 MHz | ±20ppm | ±10ppm |
| 12.85518 | Geyer晶振 | CYSTAL 20.0MHZ 8PF SMD | KX-5E | 20 MHz | ±50ppm | ±30ppm |
| 12.8873 | Geyer晶振 | Crystal 26.0Mhz 12pF SMD | KX-7T | 26 MHz | ±50ppm | ±30ppm |
| 12.86556 | Geyer晶振 | Crystal 40.0Mhz 8pF SMD | KX-6T | 40 MHz | ±20ppm | ±10ppm |
| 12.88643 | Geyer晶振 | Crystal 14.3181800Mhz 12pF SMD | KX-7T | 14.31818 MHz | ±50ppm | ±30ppm |
| 12.86511 | Geyer晶振 | Crystal 18.4320Mhz 10pF SMD | KX-6 | 18.432 MHz | ±50ppm | ±30ppm |
| 12.88523 | Geyer晶振 | Crystal 40.0Mhz 12pF SMD | KX-7F | 40 MHz | ±50ppm | ±30ppm |
| 12.89288 | Geyer晶振 | Crystal 24.5760Mhz SMD KX-9AT 20 | KX-9AT | 24.576 MHz | ±30ppm | ±20ppm |
| 12.86536 | Geyer晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6 | 14.31818 MHz | ±50ppm | ±30ppm |
| 12.89029 | Geyer晶振 | Crystal 27.0Mhz SMD KX-9A 16pF, | KX-9A | 27 MHz | ±50ppm | ±30ppm |
| 12.88799 | Geyer晶振 | Crystal 12.0Mhz 10pF SMD | KX-7 | 12 MHz | ±30ppm | ±30ppm |
| 12.8481 | Geyer晶振 | Crystal 48.0MHz 8pF SMD | KX-4 | 48 MHz | ±50ppm | ±30ppm |
| 12.84814 | Geyer晶振 | Crystal 32.0MHz 8pF SMD | KX-4 | 32 MHz | ±15ppm | ±10ppm |
| 12.88756 | Geyer晶振 | Crystal 10.0Mhz 12pF SMD | KX-7E | 26 MHz | ±50ppm | ±10ppm |
| 12.8556 | Geyer晶振 | CYSTAL 16.0MHZ 8PF SMD | KX-5T | 16 MHz | ±30ppm | ±30ppm |
| 12.86561 | Geyer晶振 | Crystal 40.0Mhz 10pF SMD | KX-6T | 40 MHz | ±20ppm | ±10ppm |
| 12.8877 | Geyer晶振 | Crystal 30.0Mhz 12pF SMD | KX-7T | 30 MHz | ±10ppm | ±10ppm |
| 12.86564 | Geyer晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6T | 14.31818 MHz | ±100ppm | ±30ppm |
| 12.86592 | Geyer晶振 | Crystal 25.0Mhz SMD KX-6T 12pF, | KX-6T | 25 MHz | ±20ppm | ±10ppm |
| 12.87159 | Geyer晶振 | CRYSTAL 32.7680kHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm |
| 12.87163 | Geyer晶振 | CRYSTAL 32.768KHZ 7PF SMD | KX-327RT | 32.768 kHz | -0.036ppm | ±20ppm |
| 12.87151 | Geyer晶振 | CRYSTAL 32.7680kHz 9pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±30ppm |
| 12.8717 | Geyer晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327FT | 32.768 kHz | - | ±20ppm |
