223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ,歐美進口晶振,奧斯康利無源晶振,貼片無源晶振,陶瓷晶振,輕薄型晶振,32.768K貼片晶振,音叉晶體,陶瓷諧振器,SMD晶振,8038mm晶體諧振器,尺寸8.0x3.8mm,頻率32.768KHZ,負載6.0pF,無鉛環保晶振,高性能晶振,高可靠晶振,低損耗晶振,無線鼠標晶振,電話機晶振,數字電表晶振,時鐘應用晶振.
223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ特點:
低調,長期穩定性
貼片晶體行業標準占地面積,卓越的抗震性能
卓越的環境特性,磁帶和卷軸
RoHs/無鉛合規

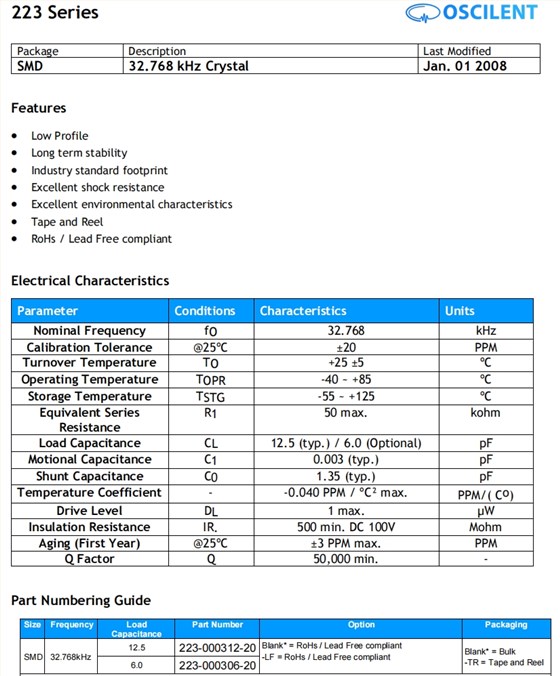

223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ 參數表
| Parameter | Conditions | Characteristics | Units | |||||
| Nominal Frequency | fO | 32.768 | kHz | |||||
| Calibration Tolerance | @25ºC | ±20 | PPM | |||||
| Turnover Temperature | TO | +25 ±5 | ºC | |||||
| Operating Temperature | TOPR | -40 ~ +85 | ºC | |||||
| Storage Temperature | TSTG | -55 ~ +125 | ºC | |||||
|
Equivalent Series Resistance |
R1 | 50 max. | kohm | |||||
| Load Capacitance | CL | 12.5 (typ.) / 6.0 (Optional) | pF | |||||
| Motional Capacitance | C1 | 0.003 (typ.) | pF | |||||
| Shunt Capacitance | C0 | 1.35 (typ.) | pF | |||||
| Temperature Coefficient | - | -0.040 PPM / ºC² max. | PPM/( Co) | |||||
| Drive Level | DL | 1 max. | µW | |||||
| Insulation Resistance | IR. | 500 min. DC 100V | Mohm | |||||
| Aging (First Year) | @25ºC | ±3 PPM max. | PPM | |||||
| Q Factor | Q | 50,000 min. | - | |||||

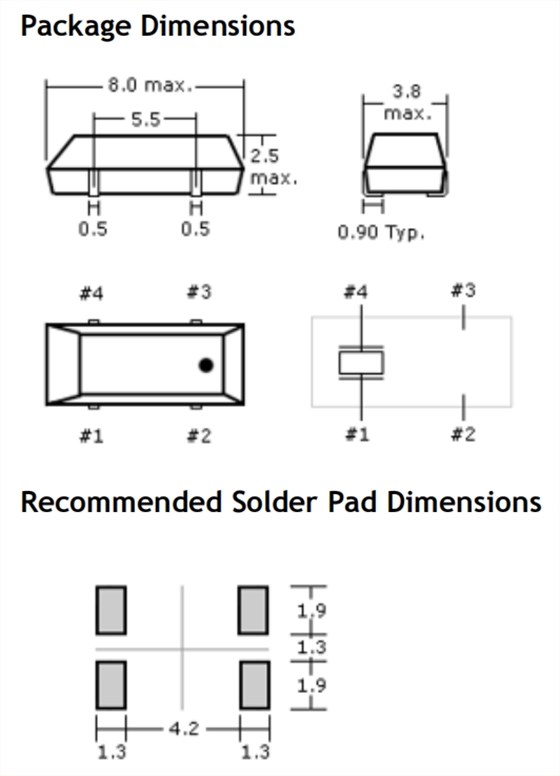

223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ 尺寸圖
