5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振，尺寸5.0x3.2mm，頻率范圍10~40MHZ，MTI-milliren溫補振蕩器，加拿大進口振蕩器，四腳有源晶振，有源溫補振蕩器，溫補晶體振蕩器，5032mm微型振蕩器，環保有源振蕩器，石英溫補振蕩器，貼片溫補晶振，低電壓有源晶振，低功耗有源晶振，低耗能有源晶振，低抖動有源晶振，低相位有源晶振，低相噪有源晶振，高品質有源晶振，全球定位系統有源晶振，AOA定位有源晶振，光通信模塊有源晶振，移動設備有源晶振，空中雷達有源晶振，具有低抖動低電壓的特點。
TCXO晶振產品超級適合用于全球定位系統，AOA定位，光通信模塊，移動設備，空中雷達等應用。5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振.

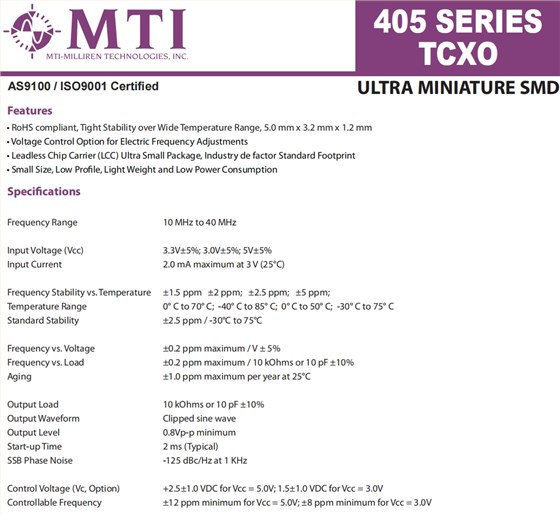

5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振參數表
| Frequency Range | 10 MHz to 40 MHz | ||||||
| Input Voltage (Vcc) |
3.3V±5%; 3.0V±5%; 5V±5% 2.0 mA maximum at 3 V (25°C) |
||||||
| Input Current | |||||||
| Frequency Stability vs. Temperature | ±1.5 ppm±2 ppm;±2.5 ppm;±5 ppm; | ||||||
| Temperature Range |
0° C to 70° C;-40° C to 85° C;0° C to 50° C;-30° C to 75° C ±2.5 ppm / -30°C to 75°C |
||||||
| Standard Stability | |||||||
| Frequency vs. Voltage | ±0.2 ppm maximum / V ± 5% | ||||||
| Frequency vs. Load |
±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C |
||||||
| Aging | |||||||
| Output Load |
10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 2 ms (Typical) |
||||||
| Output Waveform | |||||||
| Output Level | |||||||
| Start-up Time | |||||||
| SSB Phase Noise | -125 dBc/Hz at 1 KHz | ||||||
| Control Voltage (Vc, Option) | +2.5±1.0 VDC for Vcc = 5.0V; 1.5±1.0 VDC for Vcc = 3.0V | ||||||
| Controllable Frequency | ±12 ppm minimum for Vcc = 5.0V; ±8 ppm minimum for Vcc = 3.0V | ||||||

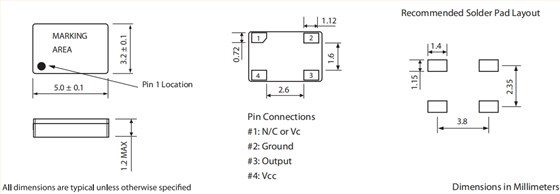

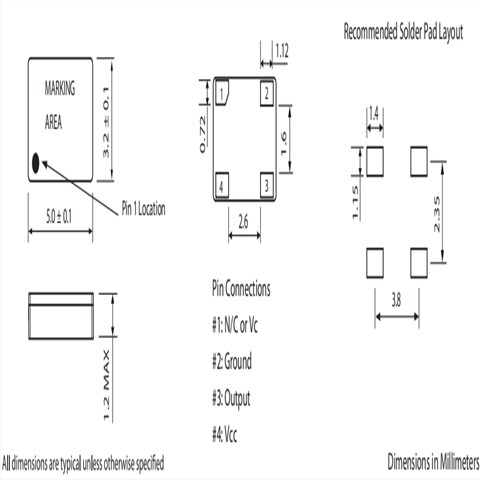

5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振 尺寸圖
5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振
進口有源晶振產品特點:
符合RoHS標準，在寬溫度范圍內具有緊密的穩定性，5.0毫米x 3.2毫米x 1.2毫米
用于電氣頻率調整的電壓控制選項
無引線芯片載體（LCC）超小型封裝，行業標準封裝
體積小、利潤低、重量輕、功耗低
