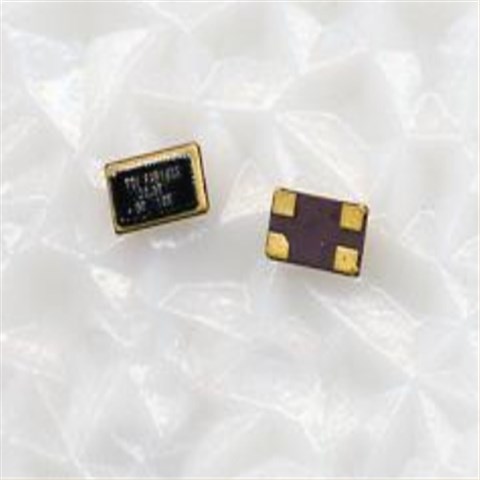

C3水晶振動子,美國PDI小體積晶振,3225mm晶體諧振器,美國進口晶振,PDI無源晶振,3225mm晶體,石英晶體諧振器,輕薄型晶振,貼片石英晶振,貼片晶振,尺寸3.2x2.5mm,頻率范圍12~50MHZ,低成本晶振,無鉛環保晶振,高性能晶振,高精度晶振,智能語音晶振,數字視頻晶振,通信設備晶振,尋呼機晶振.
C3水晶振動子,美國PDI小體積晶振,3225mm晶體諧振器特點:
低成本,Quartz crystal非常適合高密度曲面
安裝•可使用無鉛
支持自定義選項

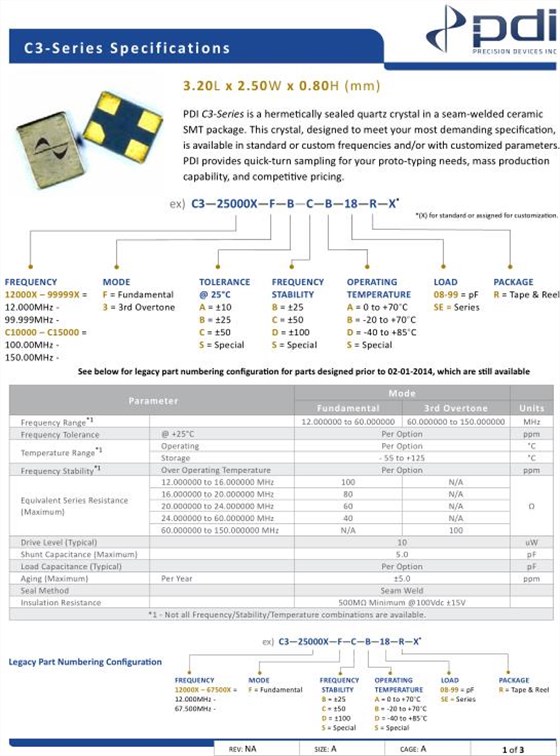

C3水晶振動子,美國PDI小體積晶振,3225mm晶體諧振器 參數表
| PARAMETER |
MINI- MUM |
MAXI- MUM |
UNITS | |||||
| Center Frequency | 12MHz | 50MHz | MHz | |||||
| Frequency Stability at +25°C (See Note 2) | +10 | + 50 | ppm | |||||
| Frequency Stability Over Temperature | +10 | +50 | ppm | |||||
| Operating Temperature Range (See Note 2) | -20 to 70 | °C | ||||||
| Storage Temperature Range | -55 to 125 | °C | ||||||
| Drive Level | 100uW | uW | ||||||
| Shunt Capacitance | 5.0 | 7.0 | pF | |||||
| Motional Capacitance | Customer Specified | fF | ||||||
| Load Capacitance | 18 Standard or Series | pF | ||||||
| Aging per year | +5 | ppm | ||||||

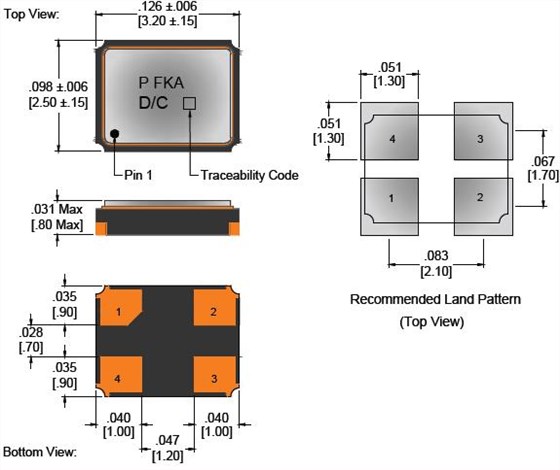

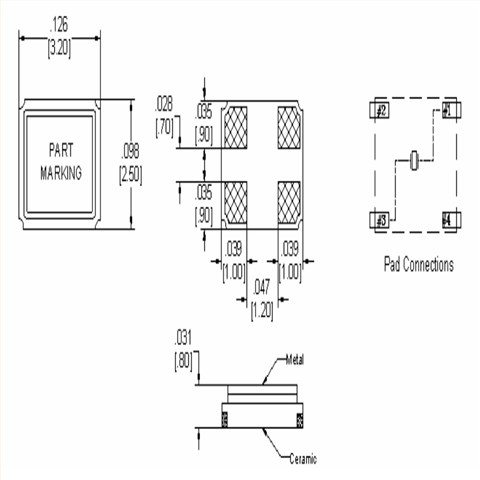

C3水晶振動子,美國PDI小體積晶振,3225mm晶體諧振器 尺寸圖
