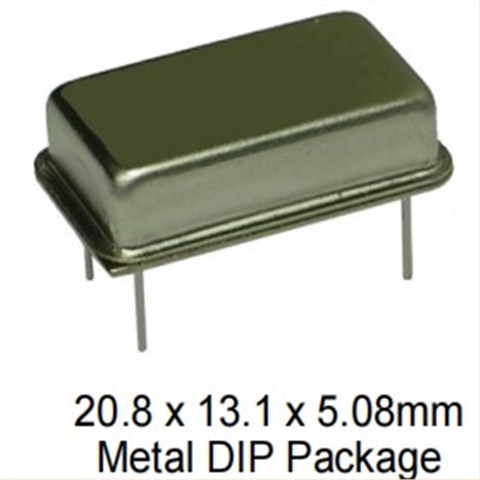

CPPLC1-BP-155.52PD,155.52MHz,Cardinal時鐘振蕩器，美國進口晶振，Cardinal卡迪納爾晶振，型號：CPPL1系列，編碼為CPPLC1-BP-155.52PD，電壓：5.0V，頻率為：155.52MHz，頻率穩定性：±50ppm，CMOS輸出晶振，尺寸為：20.8x13.1x5.08mm金屬DIP封裝，石英晶振，石英晶體振蕩器，時鐘振蕩器，有源晶振。應用程序：驅動A/D，D/As，FPGAs，數字視頻，以太網，GbE，醫療設備，存儲區域網絡，COTS，寬帶接入，SONET/SDH/DWDM，測試和測量。
CPPLC1-BP-155.52PD,155.52MHz,Cardinal時鐘振蕩器，產品特點：
•CMOS輸出（將與TTL設備接口）
•啟用/禁用功能（可選待機功能）
•3.3V或5.0V標稱電源電壓
•完整DIP14封裝石英晶振
•工廠編程

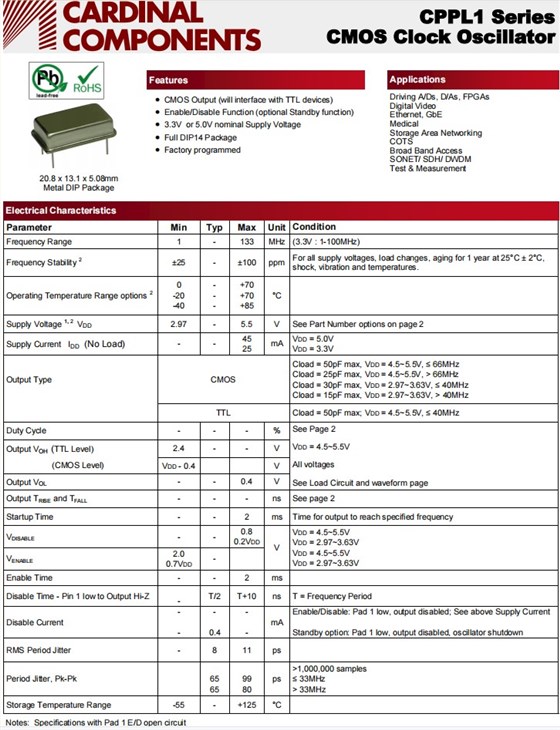

CPPLC1-BP-155.52PD,155.52MHz,Cardinal時鐘振蕩器,參數表
Electrical Characteristics CPPL1
Parameter
Min
Typ
Max
Unit
Condition
Frequency Range
155.52
MHz
(3.3V : 1-100MHz)
Frequency Stability
2
±25
-
±100
ppm
For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures.
0
-
70
Operating Temperature Range options
2
-20
-
70
°C
-40
-
85
Supply Voltage1, 2VDD
2.97
-
5.5
V
See Part Number options on page 2
Supply Current IDD(No Load)
-
-
45
mA
VDD= 5.0V
25
VDD= 3.3V
Cload = 50pF max, VDD= 4.5~5.5V, ≤ 66MHz
Output Type
CMOS
Cload = 25pF max, VDD= 4.5~5.5V, > 66MHz
Cload = 30pF max, VDD= 2.97~3.63V, ≤ 40MHz
Cload = 15pF max, VDD= 2.97~3.63V, > 40MHz
TTL
Cload = 50pF max; VDD= 4.5~5.5V, ≤ 40MHz
Duty Cycle
-
-
-
%
See Page 2
Output VOH(TTL Level)
2.4
-
-
V
VDD= 4.5~5.5V
(CMOS Level)
VDD- 0.4
V
All voltages
Output VOL
-
-
0.4
V
See Load Circuit and waveform page
Output TRISEand TFALL
-
-
-
ns
See page 2
Startup Time
-
-
2
ms
Time for output to reach specified frequency
VDISABLE
-
-
0.8 0.2VDD
VDD= 4.5~5.5V
V
VDD= 2.97~3.63V
VDD= 4.5~5.5V
VENABLE
2.0 0.7VDD
-
VDD= 2.97~3.63V
Enable Time
-
-
2
ms
Disable Time - Pin 1 low to Output Hi-Z
T/2
T+10
ns
T = Frequency Period
-
Disable Current
-
-
-
mA
Enable/Disable: Pad 1 low, output disabled; See above Supply Current
-
0.4
-
Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter
-
8
11
ps
Period Jitter, Pk-Pk
65
99
ps
>1,000,000 samples
65
80
≤ 33MHz
> 33MHz
Storage Temperature Range
-55
-
125
°C

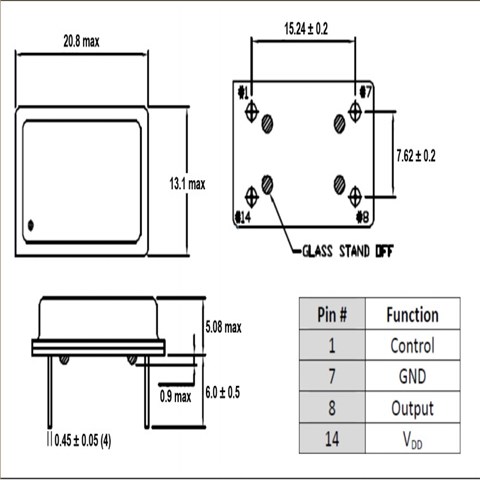

CPPLC1-BP-155.52PD,155.52MHz,Cardinal時鐘振蕩器,尺寸圖
