CX325電信晶振,CX325Z-A5B2C5-50-20.0D18,Cardinal水晶振動子，尺寸3.2x2.5mm，頻率20MHZ，卡迪爾納爾無源晶振，Cardinal無源晶振，歐美進口晶振，石英貼片晶振，石英晶振，SMD晶振，石英晶體諧振器，無源石英晶體，無源晶振，3225mm貼片晶振，四腳貼片晶振，輕薄型晶振，水晶振動子，低損耗晶振，高質量晶振，高性能晶振，電信應用晶振，物聯網晶振，便攜式設備晶振，娛樂設備晶振，智能家電晶振，智能手機晶振，藍牙晶振，無線網絡晶振，筆記本電腦晶振，具有高性能高質量的特點.
Quartz crystal產品被廣泛用于各大應用之中，比較適合用于電信應用，物聯網，便攜式設備，娛樂設備，智能家電，智能手機，藍牙，無線網絡等領域.CX325電信晶振,CX325Z-A5B2C5-50-20.0D18,Cardinal水晶振動子.
CX325電信晶振,CX325Z-A5B2C5-50-20.0D18,Cardinal水晶振動子參數表
| Parameter | Min | Typ | Max | Unit | Condition(Consult factory for other options) | |||||||||||||||||||||||||||||||||
| Frequency Range |
|
20.0 |
|
MHz | ||||||||||||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±50 | ppm | at +25°C ± 3°C,see part number guide below for available options | |||||||||||||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | |||||||||||||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | |||||||||||||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | ||||||||||||||||||||||||||||||||||
|
Equivalent Series Resistance (ESR) |
- | - |
500 150 100 80 60 50 100 80 |
a |
8 MHz ≤ Freq < 10 MHz 10 MHz ≤ Freq < 12 MHz 12 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 22 MHz 22 MHz ≤ Freq ≤ 54MHz 60 MHz ≤ Freq < 125 MHz (3rd Overtone) 125 MHz ≤ Freq < 150 MHz (3rd Overtone) |
|||||||||||||||||||||||||||||||||
| Drive Level | - | - | 100 | µW | Use 10µW for testing | |||||||||||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 5.0 | pF | Pad to Pad Capacitance | |||||||||||||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year | |||||||||||||||||||||||||||||||||
| - | - | ±2 | ppm | Per year after the first year | ||||||||||||||||||||||||||||||||||

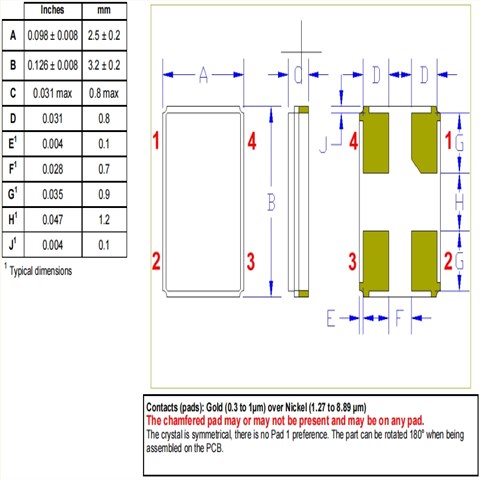

CX325電信晶振,CX325Z-A5B2C5-50-20.0D18,Cardinal水晶振動子 尺寸圖

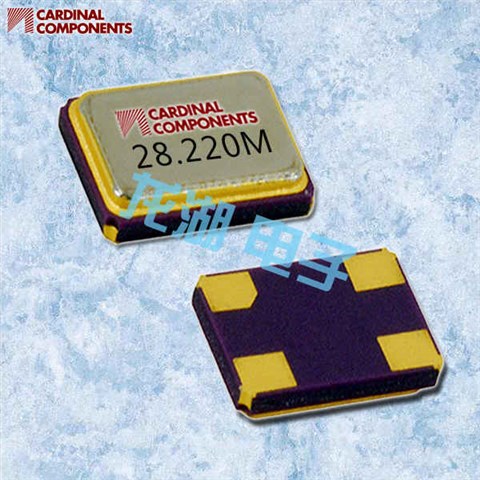

CX325電信晶振,CX325Z-A5B2C5-50-20.0D18,Cardinal水晶振動子
SMD晶振產品特點:
小型薄型表面貼裝水晶。
包裝是自動表面安裝的理想選擇組裝和回流實踐。
磁帶和卷軸包裝。
AT切割水晶
8MHz至150MHz
| Manufacturer Part Number原廠編碼 | Manufacturer廠家 | Description 參數 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Operating Temperature工作溫度 |
| CSM4Z-A2B3C3-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM4 | 12MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-25.0D18-F | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CSM4 | 25MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX532 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CX5 | 7.3728MHz | ±50ppm | -40°C ~ 125°C |
| CX325Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX325 | 20MHz | ±50ppm | -20°C ~ 70°C |
| CX635A-A5B2C3-40-18.432D13 | Cardinal晶振 | CRYSTAL 18.4320MHZ 13PF SMD | CX635A | 18.432MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CSM4 | 10MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CSM4 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-6.0D18 | Cardinal晶振 | CRYSTAL 6.0000MHZ 18PF SMD | CSM4 | 6MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM4 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-29.49152D18-F | Cardinal晶振 | CRYSTAL 29.49152MHZ 18PF SMD | CSM4 | 29.49152MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CRYSTAL 26.0000MHZ 18PF SMD | CSM4 | 26MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM4 | 4MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CRYSTAL 9.8304MHZ 18PF SMD | CSM4 | 9.8304MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM4 | 11.0592MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM4 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM4 | 7.3728MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX5 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CX5 | 24.576MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -10°C ~ 70°C |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -10°C ~ 60°C |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CRYSTAL 19.6608MHZ 18PF SMD | CX532 | 19.6608MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CX532 | 33MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CRYSTAL 17.7456MHZ 18PF SMD | CX532 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CRYSTAL 50.0000MHZ 18PF SMD | CX532 | 50MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CRYSTAL 30.0000MHZ 18PF SMD | CX532 | 30MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -20°C ~ 70°C |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX532 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-14.7456D18 | Cardinal晶振 | CRYSTAL 14.7456MHZ 18PF SMD | CSM4 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX5 | 12MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX5 | 12MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX635BZ-A1B2C3-80-14.31818D20 | Cardinal晶振 | CRYSTAL 14.31818MHZ 20PF SMD | CX635B | 14.31818MHz | ±50ppm | -10°C ~ 70°C |
| CX532Z-A5B3C5-70-18.432D18 | Cardinal晶振 | CRYSTAL 18.4320MHZ 18PF SMD | CX532 | 18.432MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CSM4 | 33MHz | ±30ppm | -40°C ~ 85°C |
