SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm,韓國進口晶振,三呢晶體諧振器,SMD晶振,石英無源晶振,48MHZ輕薄型晶振,5032mm貼片晶體,石英振動子,四腳貼片晶振,石英晶振,尺寸5.0x3.2mm,頻率為48MHZ,無鉛晶振,高頻晶振,高性能晶振,智能手機晶振,視聽設備晶振,測試測量晶振,儀器儀表晶振,小型設備晶振.

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm特點:

接縫密封,卓越的可焊性

石英晶體卓越的抗振性和抗沖擊性,高頻穩定性

出色的熱滯后,TTS-16949認證

無鉛和RoHS合規,AAEC-Q200合格

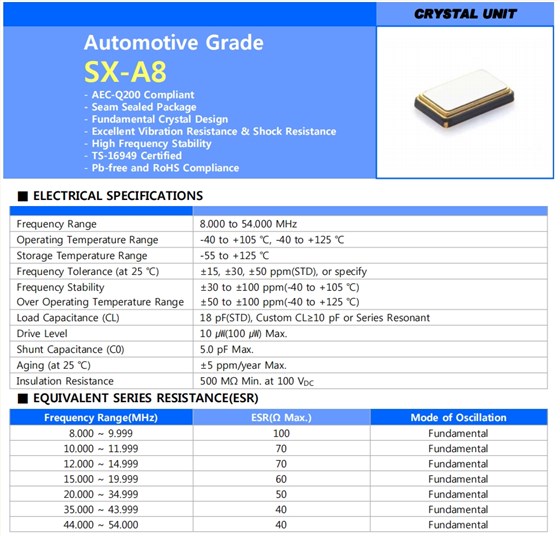

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm 參數表

Frequency Range						48.000 MHz
Operating Temperature Range						-40 to +105 ℃, -40 to +125 ℃
Storage Temperature Range						-55 to +125 ℃
Frequency Tolerance (at 25 ℃)						±15, ±30, ±50 ppm(STD), or specify
Frequency Stability Over Operating Temperature Range						±30 to ±100 ppm(-40 to +105 ℃) ±50 to ±100 ppm(-40 to +125 ℃)
Load Capacitance (CL)						18 pF(STD), Custom CL≥10 pF or Series Resonant
Drive Level						10 μw(100 μw) Max.
Shunt Capacitance (C0)						5.0 pF Max.
Aging (at 25 ℃)						±5 ppm/year Max.
Insulation Resistance						500 MΩ Min. at 100 VDC

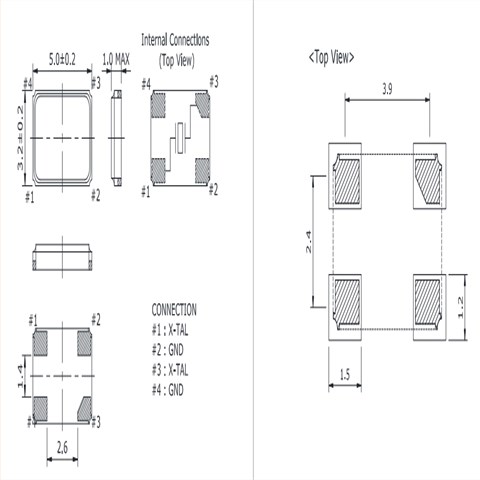

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶體,5032mm尺寸圖
