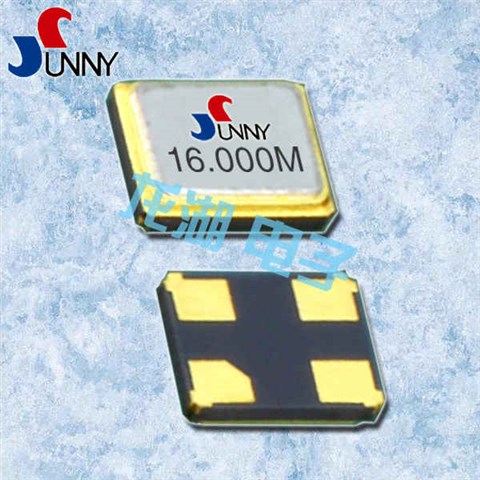

韓國三呢石英晶體,SR8130J6-25.00000-T&R,SX-21系列,25MHZ,2016mm,進口無源晶振,Sunny Crystal,2016mm水晶振動子,超小型晶振,四腳貼片晶振,SMD晶振,石英無源晶振,無源貼片晶振,SX-21系列諧振器,尺寸2.0x1.6mm,頻率25MHZ,負載8pF,高可靠晶振,高穩定性晶振,綠色環保晶振,娛樂設備晶振,尋呼機晶振,可穿戴設備晶振,數字電子晶振.

韓國三呢石英晶體,SR8130J6-25.00000-T&R,SX-21系列,25MHZ,2016mm特點:

四焊盤陶瓷SMD晶振封裝,基本水晶設計

精密公差/穩定性

使用高可靠性接縫焊接方法

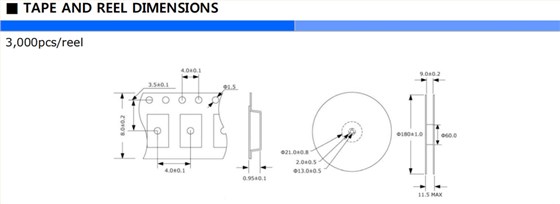

可提供分接和卷軸，可自動安裝

無鉛和RoHS合規性

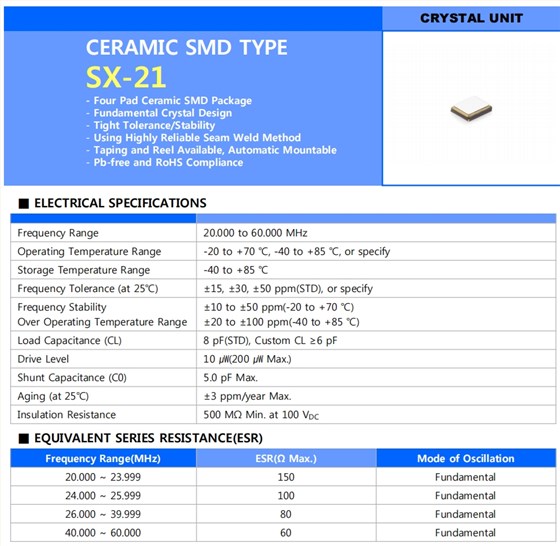

韓國三呢石英晶體,SR8130J6-25.00000-T&R,SX-21系列,25MHZ,2016mm 參數表

Frequency Range						26.000 MHz
Operating Temperature Range						-20 to +70 ℃, -40 to +85 ℃, or specify
Storage Temperature Range						-40 to +85 ℃
Frequency Tolerance (at 25℃)						±15, ±30, ±50 ppm(STD), or specify
Frequency Stability Over Operating Temperature Range						±10 to ±50 ppm(-20 to +70 ℃) ±20 to ±100 ppm(-40 to +85 ℃)
Load Capacitance (CL)						8 pF(STD), Custom CL ≥6 pF
Drive Level						10μw(200 μw Max.)
Shunt Capacitance (C0)						5.0 pF Max.
Aging (at 25℃)						±3 ppm/year Max.
Insulation Resistance						500 MΩ Min. at 100 VDC

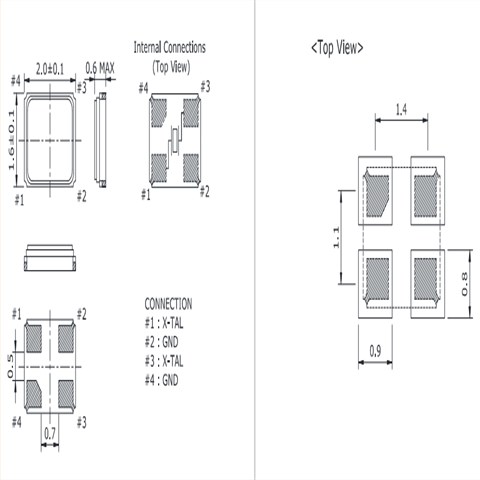

韓國三呢石英晶體,SR8130J6-25.00000-T&R,SX-21系列,25MHZ,2016mm尺寸圖
