韓國SHINSUNG晶振|SX-SS-20-30D3-25.000MHz-16pF|6G以太網晶體，尺寸5.0mmX3.2mm，頻率25MHZ，新松晶體，無源貼片晶振，石英晶體諧振器，金屬面貼片晶振，石英SMD晶振，石英無源晶體，無源四腳晶振，水晶振動子，5032mm石英晶體，SMD晶振，綠色環保晶振，高質量石英晶振，低損耗無源晶體，蜂窩專用晶振，微處理器時鐘晶振，以太網專用晶振，數字電視晶振，視頻專用晶振，蜂窩電話晶振，無線設備晶振，貼片晶體產品具有高質量低損耗的特點，適用于范圍十分廣泛，尤其適合用于微處理器時鐘，蜂窩、SONET、DSP，以太網、局域網，數字電視、視頻，ISDN，蜂窩電話等領域。韓國SHINSUNG晶振|SX-SS-20-30D3-25.000MHz-16pF|6G以太網晶體.

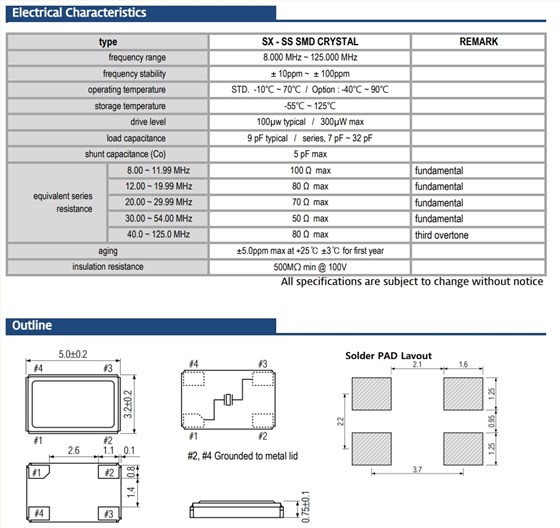

韓國SHINSUNG晶振|SX-SS-20-30D3-25.000MHz-16pF|6G以太網晶體 參數表
type
SX - SS SMD CRYSTAL
REMARK
frequency range
25.000 MHz
frequency stability
± 10ppm ~± 100ppm
operating temperature
STD.-10℃~ 70℃/Option : -40℃~ 90℃
storage temperature
-55℃~ 125℃
drive level
100µw typical/300µW max
load capacitance
9 pF typical/series, 7 pF ~ 32 pF
shunt capacitance (Co)
5 pF max
equivalent series
resistance
8.00 ~ 11.99 MHz
100 Ωmax
fundamental
12.00 ~ 19.99 MHz
80 Ωmax
fundamental
20.00 ~ 29.99 MHz
70 Ωmax
fundamental
30.00 ~ 54.00 MHz
50 Ωmax
fundamental
40.0 ~ 125.0 MHz
80 Ωmax
third overtone
aging
±5.0ppm max at +25℃±3℃for first year
insulation resistance
500MΩmin @ 100V

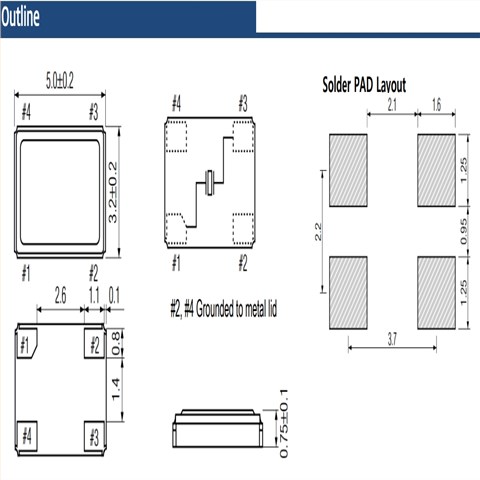

韓國SHINSUNG晶振|SX-SS-20-30D3-25.000MHz-16pF|6G以太網晶體 尺寸圖

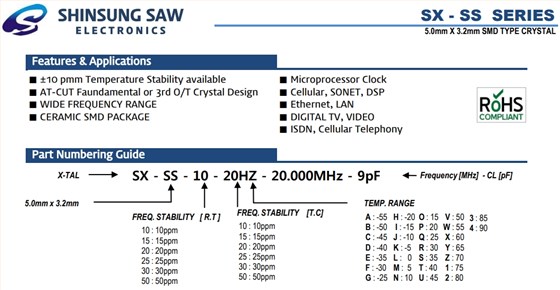

石英晶體產品特性：
±10pmm溫度穩定性可用
AT-CUT仿制品或第三代O/T水晶設計
寬頻率范圍
陶瓷SMD封裝
更多相關韓國SHINSUNG晶振型號，請聯系我們！
