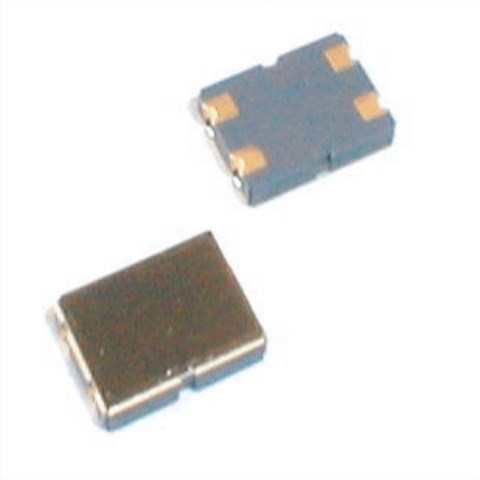

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm,美國進口晶振,美國富通晶體,石英貼片晶振,10MHZ石英晶體,四腳貼片晶振,7050mm微型晶振,水晶振動子,石英晶體諧振器,尺寸7.0×5.0mm,頻率10MHZ,負載20pF,無鉛晶振,低頻晶振,低損耗晶振,高精度晶振,無線局域網晶振,尋呼機晶振,可視化電話晶振,移動通信晶振,藍牙晶振.

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm特點:

符合RoHS（無鉛），重要低頻范圍石英環保晶振

AT切割晶體，真空密封，具有優異的老化性能，擴展的溫度范圍

行業標準占地面積，緊湊尺寸（7x 5mm），最大高度1.3mm

卓越的可焊性

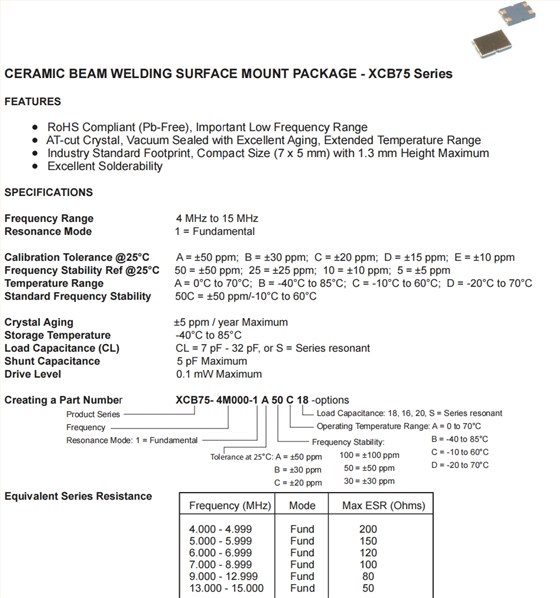

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm 參數表

Frequency Range					10 MHz
Resonance Mode					1 = Fundamental
Calibration Tolerance @25°C					A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C					50 = ±50 ppm;25 = ±25 ppm;10 = ±10 ppm;5 = ±5 ppm
Temperature Range					A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Standard Frequency Stability					50C = ±50 ppm/-10°C to 60°C
Crystal Aging					±5 ppm / year Maximum
Storage Temperature					-40°C to 85°C
Load Capacitance (CL)					CL = 7 pF - 32 pF, or S = Series resonant
Shunt Capacitance					5 pF Maximum
Drive Level					0.1 mW Maximum

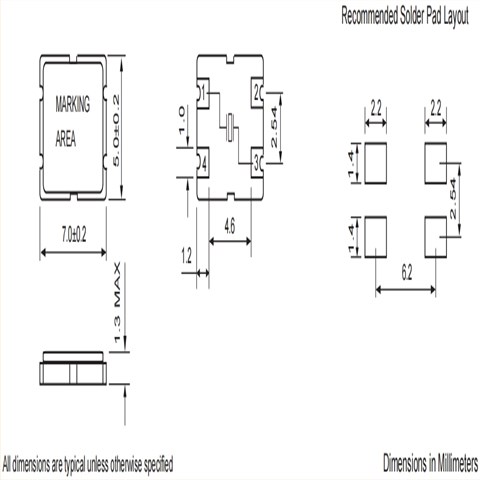

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm 尺寸圖
