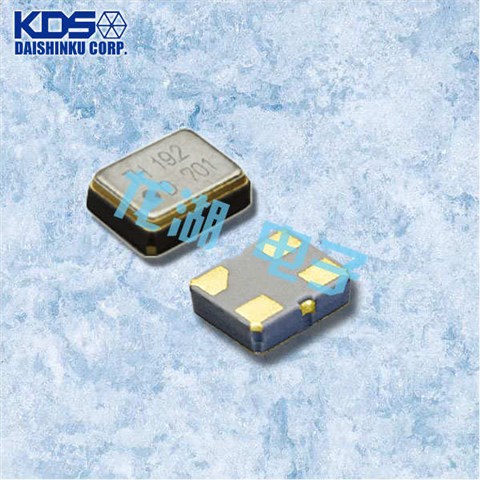

KDS智能手機晶振,DSR211STH熱敏晶振,1RAK38400CKA，尺寸2.0x1.6mm，頻率38.4MHZ，精度12ppm，負載7pF，日本進口晶振，大真空無源晶振，石英振動子，2016mm石英晶振，石英貼片晶振，四腳貼片晶振，帶熱敏電阻晶振，無源貼片晶振，貼片石英晶振，無源晶振，SMD晶體，石英晶體諧振器，熱敏晶振，智能手機專用晶振，GPS全球定位系統晶振，可穿戴設備石英晶振，儀器設備晶振，娛樂設備晶振，小型設備晶振，無線藍牙晶振，低損耗晶振，低功耗晶振，低耗能晶振，高質量晶振，具有良好的穩定性能。
產品特別適合用于智能手機晶振，GPS全球定位系統，可穿戴設備，儀器設備，娛樂設備，小型設備，無線藍牙等應用場景。KDS智能手機晶振,DSR211STH熱敏晶振,1RAK38400CKA.

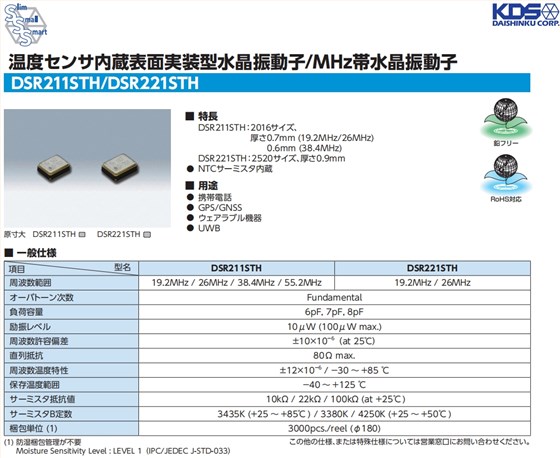

KDS智能手機晶振,DSR211STH熱敏晶振,1RAK38400CKA參數表
| 項目型名 | DSR211STH | DSR221STH | |||||||||||||||||
| 周波數範囲 | 38.4MHz | 19.2MHz / 26MHz | |||||||||||||||||
| オーバトーン次數 | Fundamental | ||||||||||||||||||
| 負荷容量 | 6pF, 7pF, 8pF | ||||||||||||||||||
| 勵振レベル | 10μW (100μW max.) | ||||||||||||||||||
| 周波數許容偏差 | ±10×10−6（at 25℃) | ||||||||||||||||||
| 直列抵抗 | 80Ω max. | ||||||||||||||||||
| 周波數溫度特性 | ±12×10−6/ −30 ~ +85 ℃ | ||||||||||||||||||
| 保存溫度範囲 | −40 ~ +125 ℃ | ||||||||||||||||||
| サーミスタ抵抗値 | 10kΩ / 22kΩ / 100kΩ (at +25℃ ) | ||||||||||||||||||
| サーミスタB定數 | 3435K (+25 ~ +85℃ ) / 3380K / 4250K (+25 ~+50℃ ) | ||||||||||||||||||
| 梱包単位 (1) | 3000pcs./reel (φ180) | ||||||||||||||||||

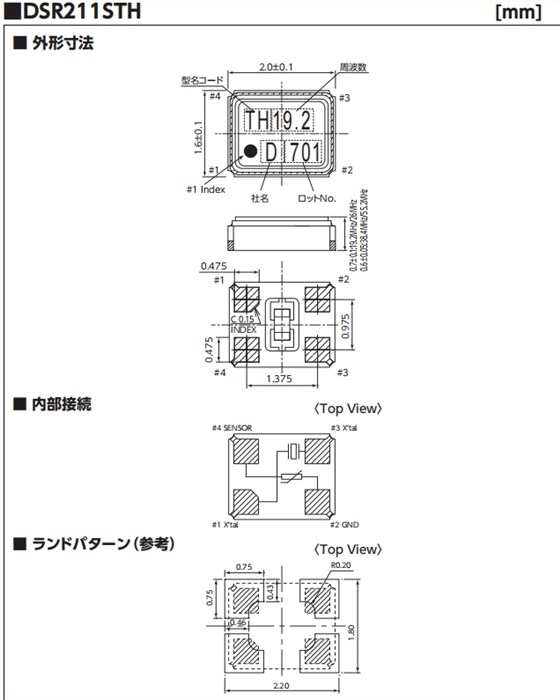

KDS智能手機晶振,DSR211STH熱敏晶振,1RAK38400CKA 尺寸圖
KDS智能手機晶振,DSR211STH熱敏晶振,1RAK38400CKA
石英晶體產品特點:
DSR211STH: 2016尺寸，
厚度0.7mm (19.2MHz/ 26mhz)
0.6 mm (38.4 mhz)
DSR221STH: 2520尺寸，厚度0.9mm
內置NTC熱敏器
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 |
| KDS晶振 | 1AJ16000EEL | SMD-49 | 16.000M | ||
| KDS晶振 | 1AJ160003D | SMD-49 | 16.000M | ||
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408M | 16PF |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000M | 16PF |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000M | 16PF |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000M | 16PF |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576M | 18PF |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576M | 20PF |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576M | |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000M | 20PF |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000M | 12.9PF |
| KDS晶振 | 1AR270002CG | SMD-49 | 11*4.6 | 27.000M | 10PF |
| KDS晶振 | 1AR270002CGA | SMD-49 | 11*4.6 | 27.000M | 10PF |
| KDS晶振 | 1AR270002EH | SMD-49 | 11*4.6 | 27.000M | 12PF |
| KDS晶振 | 1AV270002BA | SMD-49 | 11*4.6 | 27.000M | 16PF |
| KDS晶振 | 1AR270002CQ | SMD-49 | 11*4.6 | 27.000M | 10PF |
| KDS晶振 | 1AJ270002CH | SMD-49 | 11*4.6 | 27.000M | 10PF |
| KDS晶振 | 1AJ270002DT | SMD-49 | 11*4.6 | 27.000M | 12PF |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400M | 12PF |
| KDS晶振 | 1AC112893EA | AT-49 | 11*4.6 | 11.2893M | 10PF |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291M | 8.8PF |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900M | 12PF |
| KDS晶振 | SB103CE1MM | SINGLE | |||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | ||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | |
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | |
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | |
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | |
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | |
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | |
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | |
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | |
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | |
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V |
| KDS晶振 | 1XXD24000MBA | DSB211SDN | 2016 | 24.000M | |
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | |
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | |
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | |
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | |
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | |
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | |
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M |
