思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振，尺寸7.0×5.0mm，頻率125MHZ，輸出邏輯LVPECL，電壓3.3V，7050mm差分晶振，貼片差分振蕩器，有源差分晶體振蕩器，LVPECL輸出振蕩器，LVPECL差分晶振，OSC差分晶振，SMD差分晶振，智能家居差分晶振，物聯網專用差分晶振，娛樂設備差分晶振，人工智能差分晶振，航空電子專用差分晶振，6G電信差分晶振，測試測量差分晶振，路由器差分晶振，高質量差分晶振，高性能差分晶振，低抖動差分晶振，低功耗差分晶振，低電壓差分晶振，具有高性能低抖動低電壓的特點.

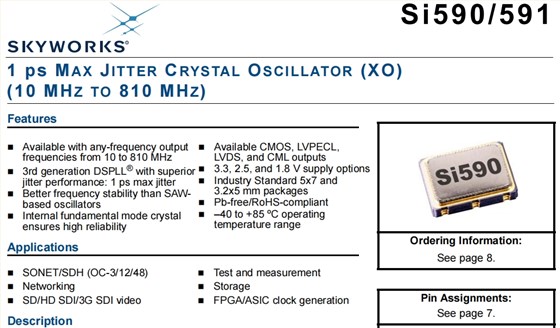

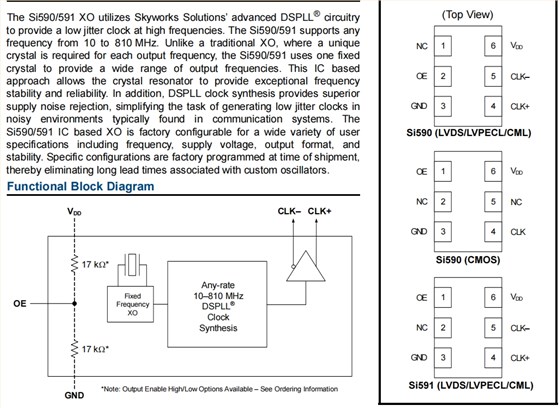

Si590/591 XO有源晶振采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si590/591支持任何頻率為10至810MHz。不同于傳統的XO每個輸出頻率都需要晶體，Si590/591有源石英晶振使用一個固定的晶體，以提供寬范圍的輸出頻率。此IC基于這種方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了卓越的性能電源噪聲抑制，簡化了在通常在通信系統中發現的噪聲環境。思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振.
思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | |||||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | |||||||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
110 100 90 80 |
125 110 100 90 |
mA | ||||||||||||||||||||
| Tristate mode | — | 60 | 75 | |||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||||||
| VIL | — | — | 0.5 | |||||||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | ºC | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 10 | — | 810 | MHz | ||||||||||||||||||||
| CMOS | 10 | — | 160 | |||||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
| Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
| Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
| Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
| Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
| second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
| second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
| second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Powerup Time5 | tOSC | — | — | 10 | ms | |||||||||||||||||||||

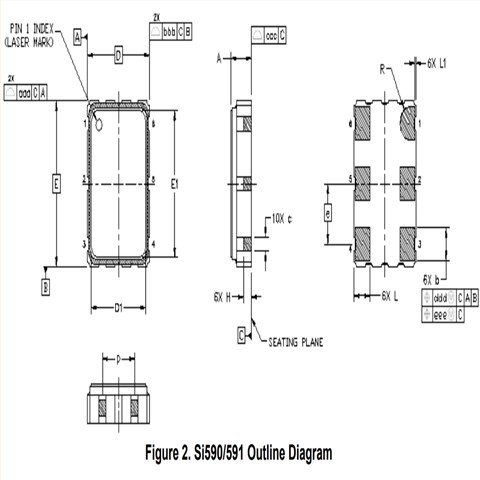

思佳訊低抖動晶振-591AD150M000DG-Si591差分晶振-6G網絡晶振尺寸圖
有源晶體振蕩器產品特性：
可用于任何頻率輸出頻率從10到810兆赫
具有卓越性能的第三代DSPLL®抖動性能：最大抖動1ps
比SAW振蕩器具有更好的頻率穩定性
內部基模晶體確保高可靠性
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7和3.2x5 mm包裝
無鉛/符合RoHS
–40至+85ºC運行溫度范圍
更多相關Skyworks晶振型號
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply | Frequency Stability |
| 591KD156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ CML SMD | Si591 | 156.25 MHz | CML | 1.8V | ±7ppm |
| 591KD212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ CML SMD | Si591 | 212.5 MHz | CML | 1.8V | ±7ppm |
| 591ND166M667DGR | Skyworks有源晶振 | XTAL OSC XO 166.6670MHZ LVDS SMD | Si591 | 166.667 MHz | LVDS | 3.3V | ±7ppm |
| 591DD160M000DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si591 | 160 MHz | CML | 3.3V | ±7ppm |
| 591KD000292DGR | Skyworks有源晶振 | XO DIFF OE PIN 1 10-810MHZ | Si591 | 161.1328 MHz | CML | 1.8V | ±7ppm |
| 591FD156M250DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 591FD004691DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 127.221875 MHz | LVDS | 2.5V | ±7ppm |
| 591SD156M250DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 591FB000127DGR | Skyworks有源晶振 | XTAL OSC XO 127.0000KHZ LVDS SMD | Si591 | 127 kHz | LVDS | 2.5V | ±25ppm |
| 591AB250M000DG | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVPECL | Si591 | 250 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB307M200DG | Skyworks有源晶振 | XTAL OSC XO 307.2000MHZ LVPECL | Si591 | 307.2 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVPECL | Si591 | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB340M000DG | Skyworks有源晶振 | XTAL OSC XO 340.0000MHZ LVPECL | Si591 | 340 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB345M000DG | Skyworks有源晶振 | XTAL OSC XO 345.0000MHZ LVPECL | Si591 | 345 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB360M000DG | Skyworks有源晶振 | XTAL OSC XO 360.0000MHZ LVPECL | Si591 | 360 MHz | LVPECL | 3.3V | ±25ppm |
| 591BB250M000DG | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVDS SMD | Si591 | 250 MHz | LVDS | 3.3V | ±25ppm |
| 591BB275M000DG | Skyworks有源晶振 | XTAL OSC XO 275.0000MHZ LVDS SMD | Si591 | 275 MHz | LVDS | 3.3V | ±25ppm |
| 591BB295M000DG | Skyworks有源晶振 | XTAL OSC XO 295.0000MHZ LVDS SMD | Si591 | 295 MHz | LVDS | 3.3V | ±25ppm |
| 591BB312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si591 | 312.5 MHz | LVDS | 3.3V | ±25ppm |
| 591BB360M000DG | Skyworks有源晶振 | XTAL OSC XO 360.0000MHZ LVDS SMD | Si591 | 360 MHz | LVDS | 3.3V | ±25ppm |
| 591FB266M666DG | Skyworks有源晶振 | XTAL OSC XO 266.6660MHZ LVDS SMD | Si591 | 266.666 MHz | LVDS | 2.5V | ±25ppm |
| 591FB270M000DG | Skyworks有源晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | Si591 | 270 MHz | LVDS | 2.5V | ±25ppm |
| 591FB312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si591 | 312.5 MHz | LVDS | 2.5V | ±25ppm |
| 591FB320M000DG | Skyworks有源晶振 | XTAL OSC XO 320.0000MHZ LVDS SMD | Si591 | 320 MHz | LVDS | 2.5V | ±25ppm |
| 591FB400M000DG | Skyworks有源晶振 | XTAL OSC XO 400.0000MHZ LVDS SMD | Si591 | 400 MHz | LVDS | 2.5V | ±25ppm |
| 591MB400M000DG | Skyworks有源晶振 | XTAL OSC XO 400.0000MHZ LVPECL | Si591 | 400 MHz | LVPECL | 3.3V | ±25ppm |
| 591NB270M000DG | Skyworks有源晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | Si591 | 270 MHz | LVDS | 3.3V | ±25ppm |
| 591AB250M000DGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVPECL | Si591 | 250 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB307M200DGR | Skyworks有源晶振 | XTAL OSC XO 307.2000MHZ LVPECL | Si591 | 307.2 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVPECL | Si591 | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB340M000DGR | Skyworks有源晶振 | XTAL OSC XO 340.0000MHZ LVPECL | Si591 | 340 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB345M000DGR | Skyworks有源晶振 | XTAL OSC XO 345.0000MHZ LVPECL | Si591 | 345 MHz | LVPECL | 3.3V | ±25ppm |
| 591AB360M000DGR | Skyworks有源晶振 | XTAL OSC XO 360.0000MHZ LVPECL | Si591 | 360 MHz | LVPECL | 3.3V | ±25ppm |
| 591BB250M000DGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVDS SMD | Si591 | 250 MHz | LVDS | 3.3V | ±25ppm |
| 591BB275M000DGR | Skyworks oscillator | XTAL OSC XO 275.0000MHZ LVDS SMD | Si591 | 275 MHz | LVDS | 3.3V | ±25ppm |
| 591BB295M000DGR | Skyworks有源晶振 | XTAL OSC XO 295.0000MHZ LVDS SMD | Si591 | 295 MHz | LVDS | 3.3V | ±25ppm |
| 591BB300M000DGR | Skyworks有源晶振 | XTAL OSC XO 300.0000MHZ LVDS SMD | Si591 | 300 MHz | LVDS | 3.3V | ±25ppm |
| 591BB312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si591 | 312.5 MHz | LVDS | 3.3V | ±25ppm |
| 591BB360M000DGR | Skyworks有源晶振 | XTAL OSC XO 360.0000MHZ LVDS SMD | Si591 | 360 MHz | LVDS | 3.3V | ±25ppm |
| 591FB266M666DGR | Skyworks有源晶振 | XTAL OSC XO 266.6660MHZ LVDS SMD | Si591 | 266.666 MHz | LVDS | 2.5V | ±25ppm |
| 591FB270M000DGR | Skyworks有源晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | Si591 | 270 MHz | LVDS | 2.5V | ±25ppm |
| 591FB312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si591 | 312.5 MHz | LVDS | 2.5V | ±25ppm |
| 591FB320M000DGR | Skyworks有源晶振 | XTAL OSC XO 320.0000MHZ LVDS SMD | Si591 | 320 MHz | LVDS | 2.5V | ±25ppm |
| 591FB400M000DGR | Skyworks有源晶振 | XTAL OSC XO 400.0000MHZ LVDS SMD | Si591 | 400 MHz | LVDS | 2.5V | ±25ppm |
| 591MB400M000DGR | Skyworks有源晶振 | XTAL OSC XO 400.0000MHZ LVPECL | Si591 | 400 MHz | LVPECL | 3.3V | ±25ppm |
| 591NB270M000DGR | Skyworks有源晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | Si591 | 270 MHz | LVDS | 3.3V | ±25ppm |
| 591NB500M000DGR | Skyworks有源晶振 | XTAL OSC XO 500.0000MHZ LVDS SMD | Si591 | 500 MHz | LVDS | 3.3V | ±25ppm |
| 591BB270M000DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si591 | 270 MHz | LVDS | 3.3V | ±25ppm |
| 591BB257M812DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 257.812 MHz | LVDS | 3.3V | ±25ppm |
| 591NB000274DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 322.265625 MHz | LVDS | 3.3V | ±25ppm |
| 591BB004647DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 257.8125 MHz | LVDS | 3.3V | ±25ppm |
| 591KB333M330DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 333.33 MHz | CML | 1.8V | ±25ppm |
| 591BB000274DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 322.265625 MHz | LVDS | 3.3V | ±25ppm |
| 591FF266M667DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 266.667 MHz | LVDS | 2.5V | ±25ppm |
| 591AD000391DG | Skyworks有源晶振 | XTAL OSC XO 391.0000KHZ LVPECL | Si591 | 391 kHz | LVPECL | 3.3V | ±7ppm |
| 591AD004636DG | Skyworks有源晶振 | XTAL OSC XO 4.6360MHZ LVPECL SMD | Si591 | 4.636 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD148M500DG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVPECL | Si591 | 148.5 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVPECL | Si591 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD152M520DG | Skyworks有源晶振 | XTAL OSC XO 152.5200MHZ LVPECL | Si591 | 152.52 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si591 | 155.52 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si591 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD156M254DG | Skyworks有源晶振 | XTAL OSC XO 156.2540MHZ LVPECL | Si591 | 156.254 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD165M000DG | Skyworks有源晶振 | XTAL OSC XO 165.0000MHZ LVPECL | Si591 | 165 MHz | LVPECL | 3.3V | ±7ppm |
| 591AD165M254DG | Skyworks有源晶振 | XTAL OSC XO 165.2540MHZ LVPECL | Si591 | 165.254 MHz | LVPECL | 3.3V | ±7ppm |
| 591BD000285DG | Skyworks有源晶振 | XTAL OSC XO 170.678278MHZ LVDS | Si591 | 170.678278 MHz | LVDS | 3.3V | ±7ppm |
| 591BD000292DG | Skyworks有源晶振 | XTAL OSC XO 292.0000KHZ LVDS SMD | Si591 | 292 kHz | LVDS | 3.3V | ±7ppm |
| 591BD148M500DG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si591 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 591BD155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si591 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 591BD156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si591 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 591BD160M000DG | Skyworks有源晶振 | XTAL OSC XO 160.0000MHZ LVDS SMD | Si591 | 160 MHz | LVDS | 3.3V | ±7ppm |
| 591BD200M000DG | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si591 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 591BD210M000DG | Skyworks有源晶振 | XTAL OSC XO 210.0000MHZ LVDS SMD | Si591 | 210 MHz | LVDS | 3.3V | ±7ppm |
| 591FD147M456DG | Skyworks有源晶振 | XTAL OSC XO 147.4560MHZ LVDS SMD | Si591 | 147.456 MHz | LVDS | 2.5V | ±7ppm |
| 591FD148M500DG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si591 | 148.5 MHz | LVDS | 2.5V | ±7ppm |
| 591FD200M000DG | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si591 | 200 MHz | LVDS | 2.5V | ±7ppm |
| 591KD136M773DG | Skyworks有源晶振 | XTAL OSC XO 136.7730MHZ CML SMD | Si591 | 136.773 MHz | CML | 1.8V | ±7ppm |
| 591KD153M000DG | Skyworks有源晶振 | XTAL OSC XO 153.0000MHZ CML SMD | Si591 | 153 MHz | CML | 1.8V | ±7ppm |
| 591KD153M600DG | Skyworks有源晶振 | XTAL OSC XO 153.6000MHZ CML SMD | Si591 | 153.6 MHz | CML | 1.8V | ±7ppm |
| 591KD155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ CML SMD | Si591 | 155.52 MHz | CML | 1.8V | ±7ppm |
| 591KD156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ CML SMD | Si591 | 156.25 MHz | CML | 1.8V | ±7ppm |
| 591KD212M500DG | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ CML SMD | Si591 | 212.5 MHz | CML | 1.8V | ±7ppm |
| 591ND166M667DG | Skyworks有源晶振 | XTAL OSC XO 166.6670MHZ LVDS SMD | Si591 | 166.667 MHz | LVDS | 3.3V | ±7ppm |
| 591DD160M000DG | Skyworks有源晶振 | XTAL OSCILLATOR | Si591 | 160 MHz | CML | 3.3V | ±7ppm |
| 591KD000292DG | Skyworks有源晶振 | XO DIFF OE PIN 1 10-810MHZ | Si591 | 161.1328 MHz | CML | 1.8V | ±7ppm |
| 591FD156M250DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 591SD156M250DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 591FD004691DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 127.221875 MHz | LVDS | 2.5V | ±7ppm |
| 591FC296M703DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si591 | 296.703 MHz | LVDS | 2.5V | ±20ppm |
| 591FC297M000DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si591 | 297 MHz | LVDS | 2.5V | ±20ppm |
| 591BG437M500DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 437.5 MHz | LVDS | 3.3V | ±20ppm |
| 591BG004679DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 322.2656 MHz | LVDS | 3.3V | ±20ppm |
| 591BG333M333DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 333.333 MHz | LVDS | 3.3V | ±20ppm |
| 591EG400M000DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 400 MHz | LVPECL | 2.5V | ±20ppm |
| 591AG000274DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 274 MHz | LVPECL | 3.3V | ±20ppm |
| 591BC312M800DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 312.8 MHz | LVDS | 3.3V | ±20ppm |
| 591AG004673DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si591 | 322.289795 MHz | LVPECL | 3.3V | ±20ppm |
| 591AC245M760DGR | Skyworks有源晶振 | XTAL OSC XO 245.7600MHZ LVPECL | Si591 | 245.76 MHz | LVPECL | 3.3V | ±20ppm |
| 591AC312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVPECL | Si591 | 312.5 MHz | LVPECL | 3.3V | ±20ppm |
| 591AC500M000DGR | Skyworks有源晶振 | XTAL OSC XO 500.0000MHZ LVPECL | Si591 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 591BC270M000DGR | Skyworks有源晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | Si591 | 270 MHz | LVDS | 3.3V | ±20ppm |
| 591BC312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si591 | 312.5 MHz | LVDS | 3.3V | ±20ppm |
| 591BC435M000DGR | Skyworks有源晶振 | XTAL OSC XO 435.0000MHZ LVDS SMD | Si591 | 435 MHz | LVDS | 3.3V | ±20ppm |
| 591BC500M000DGR | Skyworks有源晶振 | XTAL OSC XO 500.0000MHZ LVDS SMD | Si591 | 500 MHz | LVDS | 3.3V | ±20ppm |
