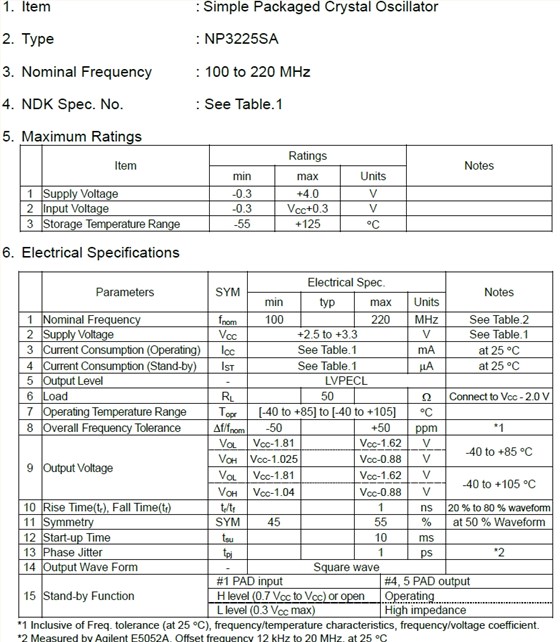

日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振參數表
| Item | Ratings | Notes | |||||||||||||||||||
| min | max | Units | |||||||||||||||||||
| 1 | Supply Voltage | -0.3 | +4.0 | V | |||||||||||||||||
| 2 | Input Voltage | -0.3 | VCC+0.3 | V | |||||||||||||||||
| 3 | Storage Temperature Range | -55 | +125 | 。C | |||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | ||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||
| 1 | Nominal Frequency | fnom |
|
100 |
|
MHz | See Table.2 | ||||||||||||||
| 2 | Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | ||||||||||||||||
| 3 | Current Consumption (Operating) | ICC | See Table.1 | mA | at 25。C | ||||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | See Table.1 | μA | at 25。C | ||||||||||||||||
| 5 | Output Level | - | LVPECL | ||||||||||||||||||
| 6 | Load | RL | 50 | Ω | Connect to VCC- 2.0 V | ||||||||||||||||
| 7 | Operating Temperature Range | Topr | [-40 to +85] to [-40 to +105] | 。C | |||||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | |||||||||||||||
| 9 | Output Voltage | VOL | VCC- 1.81 | VCC- 1.62 | V | -40 to +85。C | |||||||||||||||
| VOH | VCC- 1.025 | VCC-0.88 | V | ||||||||||||||||||
| VOL | VCC- 1.81 | VCC- 1.62 | V | -40 to +105。C | |||||||||||||||||
| VOH | VCC- 1.04 | VCC-0.88 | V | ||||||||||||||||||
| 10 | Rise Time(tr), Fall Time(tf) | tr/tf | 1 | ns | 20 % to 80 % waveform | ||||||||||||||||
| 11 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | |||||||||||||||
| 12 | Start-up Time | tsu | 10 | ms | |||||||||||||||||
| 13 | Phase Jitter | tpj | 1 | ps | *2 | ||||||||||||||||
| 14 | Output Wave Form | - | Square wave | ||||||||||||||||||
| 15 | Stand-by Function | #1 PAD input | #4, 5 PAD output | ||||||||||||||||||
| H level (0.7 VCCto VCC) or open | Operating | ||||||||||||||||||||
| L level (0.3 VCCmax) | High impedance | ||||||||||||||||||||

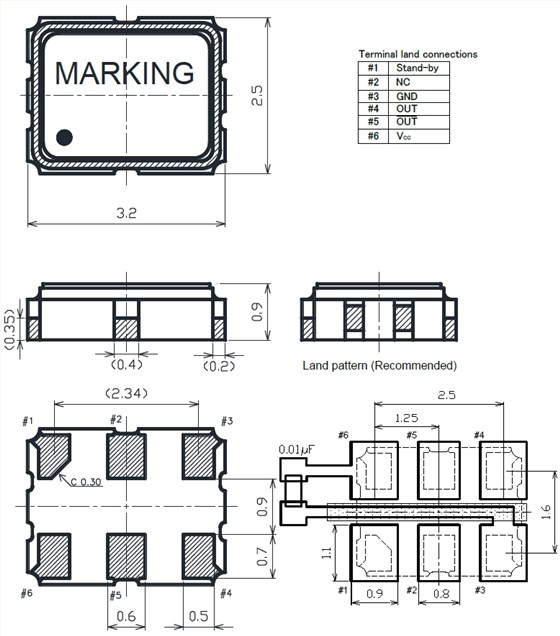

日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振 尺寸圖

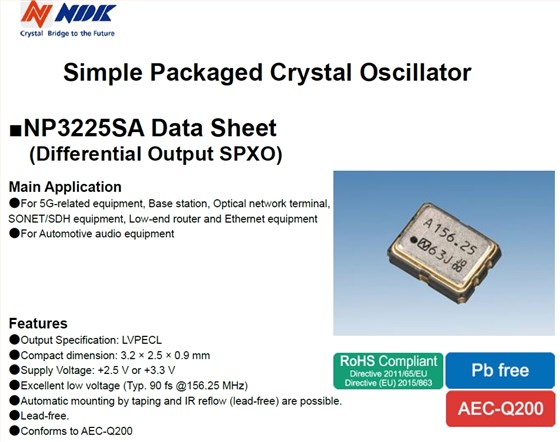

產品特性：
LVPECL差分輸出SPXO有源晶振
緊湊型:3.2 x 2.5 x 0.9毫米
電源電壓:+2.5V或者+3.3V
低相位抖動:典型。156.25 MHz時90fs
通過纏繞自動安裝和IR回流(無鉛)是可能的
符合AEC-Q100/200
更多相關日本電波NDK晶振型號
| 進口晶振 | Nominal frequency[MHz] | Specification number | Manufacturer | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] | Storage temperature range[℃] | Supply voltage[V] |
| NP3225SA | 122.88MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 100MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5235A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5235A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5235B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5235B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5237A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5237A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5237B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5237B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5236A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5236B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5238A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5344B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5344B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5344B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5344B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5344B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5344B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5238B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5082A | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5082A | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5345B | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5345B | NDK晶振 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
