A152-303.5M1,7050mm,安克SAW濾波器,303.5MHZ,A152系列諧振器,AEK無源諧振器,俄國進口晶振,7050mm輕薄型晶振,無源貼片晶振,聲表面濾波器,303.5MHZ晶體諧振器,SMD晶振,尺寸7.0×5.0mm,頻率302.5MHZ,低功耗晶振,低耗能晶振,耐高溫晶振,高品質晶振,無線局域網晶振,微處理器晶振,視聽設備晶振,小型設備晶振.

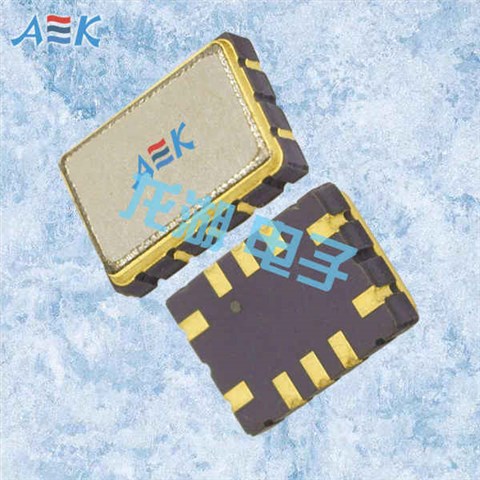

A152-303.5M1,7050mm,安克SAW濾波器,303.5MHZ,A152系列諧振器特點:
貼片類型包裝7.0×5.0mmSAW濾波器
低耗能高品質高可靠性能
符合無鉛環保標準

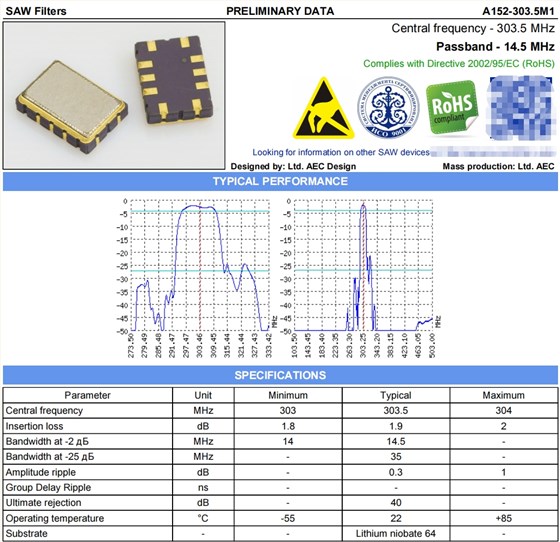

A152-303.5M1,7050mm,安克SAW濾波器,303.5MHZ,A152系列諧振器 參數表
| SPECIFICATIONS | |||||||||||||||||||||||
| Parameter | Unit | Minimum | Typical | Maximum | |||||||||||||||||||
| Central frequency | MHz | 303 | 303.5 | 304 | |||||||||||||||||||
| Insertion loss | dB | 1.8 | 1.9 | 2 | |||||||||||||||||||
| Bandwidth at -2 дБ | MHz | 14 | 14.5 | - | |||||||||||||||||||
| Bandwidth at -25 дБ | MHz | - | 35 | - | |||||||||||||||||||
| Amplitude ripple | dB | - | 0.3 | 1 | |||||||||||||||||||
| Group Delay Ripple | ns | - | - | - | |||||||||||||||||||
| Ultimate rejection | dB | - | 40 | - | |||||||||||||||||||
| Operating temperature | °C | -55 | 22 | +85 | |||||||||||||||||||
| Substrate | - | - | Lithium niobate 64 | - | |||||||||||||||||||

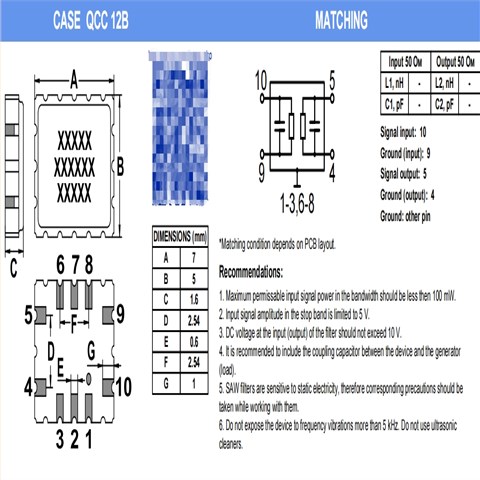

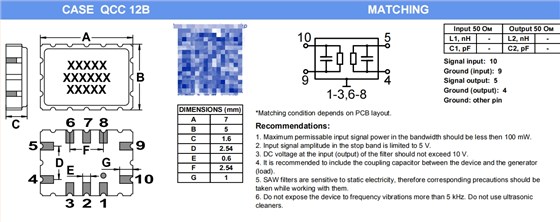

A152-303.5M1,7050mm,安克SAW濾波器,303.5MHZ,A152系列諧振器 尺寸圖
