亞馬遜、蘋果與谷歌、三星開源智能家居設備商兼容性FA-20H愛普生晶振Q24FA20H0016600
Zigbee和藍牙都是不適配IPv6的底層協議,例如ZigBee,它規定了要求的底層協議、專用的網絡層/傳輸層和專用的應用層.所以Matter與Zigbee、藍牙是互斥的協議,無法共同存在;而與Wi-Fi則是依賴關系.由此可見,Matter是基于傳輸層之上的應用層協議,愛普生晶振它依賴于以太網、Wi-Fi、Thread等底層協議.應用層為Matter、傳輸層為TCP/UDP、網絡層為IPv6、底層為適配IPv6的協議以太網、Wi-Fi、Thread,等等.智能家居設備商兼容性Matter1.0的誕生2019年12月智能家居開源標準Matter首次由亞馬遜、蘋果、谷歌、三星Smart Things和Zig Bee聯盟聯合發起提出.
FA-20H愛普生晶振Q24FA20H0016600,亞馬遜蘋果與谷歌三星開源智能家居設備晶振
當時還被稱為IP互聯家庭項目Project Connected HomeoverIP,簡稱CHIP.該項目旨在開發、推廣一項免除專利費的新連接協議,將Zigbee、Thread、藍牙和Wi-Fi等不同組件整合到一個總體標準中,以簡化智能家居設備商開發成本,石英晶振提高產品之間兼容性.展示了Matter與Zig Bee、藍牙、Wi-Fi的關系.OSI七層網絡模型大家都比較熟悉了,從高到低,依次為:應用層、表示層、會話層、傳輸層、網絡層、數據鏈路層、物理層.這里簡化了一下,將會話層和表示層合并到應用層,數據鏈路層和物理層合并到底層,形成新的網絡模型:應用層、傳輸層、網絡層、底層.
愛普生晶振編碼
長x寬x高
型號
石英晶振頻率
負載
頻率25°C
頻率公差
工作溫度范圍
Q24FA20H0015500
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
8 pF
+/-10 ppm
+/-15 ppm
-30 to +85 °C
Q24FA20H0015600
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
7 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C

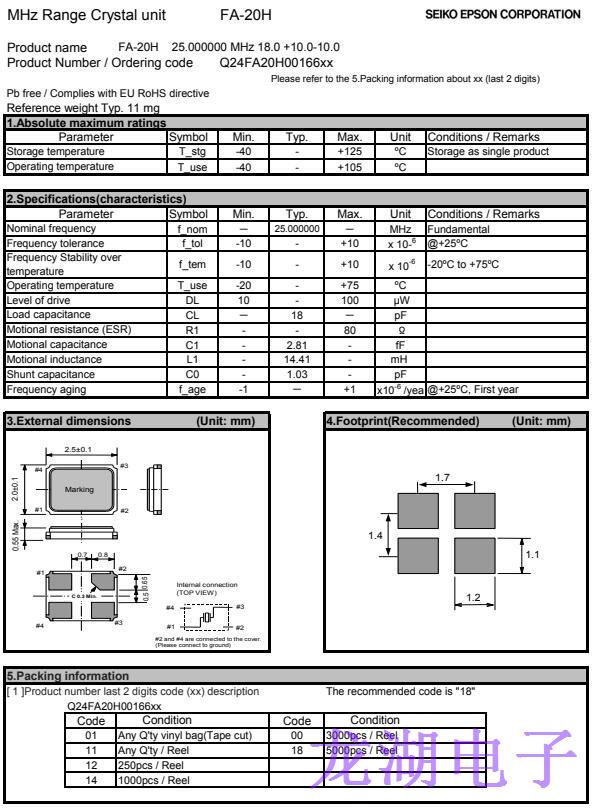

Q24FA20H0016600
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
18 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0016900
2.5 x 2 x 0.55mm
FA-20H
40.000000 MHz
12 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0017200
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
20 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
Q24FA20H0017500
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
Q24FA20H0017600
2.5 x 2 x 0.55mm
FA-20H
20.000000 MHz
9 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0019300
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
10 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
Q24FA20H0019600
2.5 x 2 x 0.55mm
FA-20H
32.000000 MHz
8 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0020100
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
10 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0020200
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
14 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
Q24FA20H0020800
2.5 x 2 x 0.55mm
FA-20H
32.000000 MHz
13 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0020900
2.5 x 2 x 0.55mm
FA-20H
40.000000 MHz
9 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
Q24FA20H0021400
2.5 x 2 x 0.55mm
FA-20H
40.000000 MHz
10 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
Q24FA20H0022300
2.5 x 2 x 0.55mm
FA-20H
30.000000 MHz
12 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
Q24FA20H0022500
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
8 pF
+/-10 ppm
+/-12 ppm
-20 to +70 °C
Q24FA20H0022800
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-30 to +85 °C
Q24FA20H0022900
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
6 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0023200
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
12 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
Q24FA20H0023300
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
12 pF
+/-10 ppm
+/-12 ppm
-20 to +85 °C
Q24FA20H0023800
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
12 pF
+/-10 ppm
+/-19 ppm
-40 to +85 °C
Q24FA20H0024100
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
12 pF
+/-30 ppm
+/-50 ppm
-20 to +70 °C
Q24FA20H0024200
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
12 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0024700
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
16 pF
+/-10 ppm
+/-30 ppm
-40 to +85 °C
Q24FA20H0024900
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
7 pF
+/-30 ppm
+/-20 ppm
-20 to +70 °C
Q24FA20H0025100
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
10 pF
+/-25 ppm
+/-25 ppm
-20 to +75 °C
Q24FA20H0026000
2.5 x 2 x 0.55mm
FA-20H
32.000000 MHz
10 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
Q24FA20H0026600
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-40 to +85 °C
Q24FA20H0027000
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-30 to +85 °C
Q24FA20H0027100
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
10 pF
+/-20 ppm
+/-14 ppm
-30 to +70 °C
FA-20H愛普生晶振Q24FA20H0016600,亞馬遜蘋果與谷歌三星開源智能家居設備晶振
