汽車遙控器應用晶振FA-238V愛普生無源晶振編碼Q22FA23V0014900
出眾的工業設計有助于提高產品的辨識度,從眾多競爭對手中脫穎而出,美國蘋果公司就是工業設計典型的成功案例.生產橡膠按鈕制品發展至今客戶已經遍及全球,愛普生晶振其50%以上的產品遠銷海外.盡管遭遇金融風暴但獲利狀況反而逆勢增長,究其原因在于惡劣的經濟環境是考驗企業生存力的試金石,一些運營狀況不佳的企業挺不過危機被淘汰,從而形成新的市場格局,而堅持到最后的企業可能取得更多的市場份額.

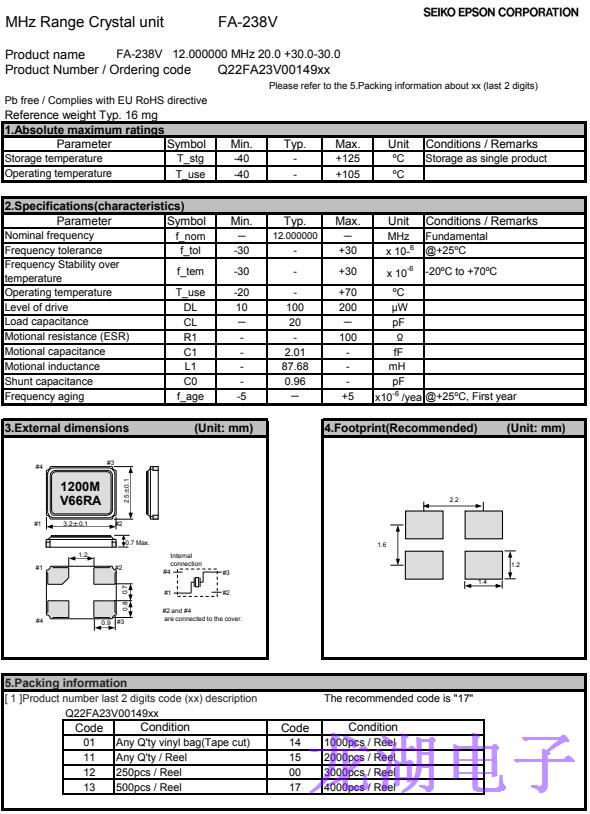

FA-238V愛普生無源晶振編碼Q22FA23V0014900,汽車遙控器應用晶振
與往年展出電子元件不同的是上海站電子元器件專區出現了外觀設計相關零配件的展臺,顯示出電子行業對工業設計的注重正與日俱增.石英晶體諧振器展臺幾乎是按鈕的世界,遙控器、手機、電腦鍵盤、電話數字按鈕、汽車遙控鑰匙按鈕各種鍵盤. 目前已經躋身全球導電橡膠前十強行列,擁有4家制造廠分別位于中國臺灣地區、上海、中國香港地區以及廣東.如果說IC是電子產品的器官,電子元件是連接各臟器的血管神經,那么按鈕、外殼就相當于一層皮膚. FA-238V愛普生無源晶振編碼Q22FA23V0014900,汽車遙控器應用晶振
愛普生晶振編碼
長x寬x高
型號
石英晶振頻率
負載
頻率25°C
頻率公差
工作溫度范圍
ESR最大
Q22FA23V0006900
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
10 pF
+/-15 ppm
+/-15 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0008200
3.2 x 2.5 x 0.7mm
FA-238V
14.318180 MHz
16 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
Q22FA23V0008500
3.2 x 2.5 x 0.7mm
FA-238V
12.288000 MHz
8 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0008600
3.2 x 2.5 x 0.7mm
FA-238V
14.745600 MHz
12 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
Q22FA23V0009500
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
16 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0010300
3.2 x 2.5 x 0.7mm
FA-238V
14.318180 MHz
12.5 pF
+/-30 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
Q22FA23V0010600
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
11 pF
+/-30 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0010700
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
10 pF
+/-50 ppm
+/-50 ppm
-40 to +85 °C
≤ 100 Ω
Q22FA23V0011400
3.2 x 2.5 x 0.7mm
FA-238V
14.318180 MHz
18 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
Q22FA23V0011900
3.2 x 2.5 x 0.7mm
FA-238V
12.500000 MHz
16 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0012300
3.2 x 2.5 x 0.7mm
FA-238V
13.560000 MHz
12 pF
+/-20 ppm
+/-30 ppm
-40 to +85 °C
≤ 80 Ω
Q22FA23V0013100
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
18 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0013600
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
8 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0014400
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
10 pF
+/-15 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0014900
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
20 pF
+/-30 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0015000
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
10 pF
+/-10 ppm
+/-10 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0016000
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
16 pF
+/-30 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0016200
3.2 x 2.5 x 0.7mm
FA-238V
12.288000 MHz
10 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0016400
3.2 x 2.5 x 0.7mm
FA-238V
14.318180 MHz
9 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
Q22FA23V0017000
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
12 pF
+/-30 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0017800
3.2 x 2.5 x 0.7mm
FA-238V
13.560000 MHz
18 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
Q22FA23V0017900
3.2 x 2.5 x 0.7mm
FA-238V
12.500000 MHz
10 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0018000
3.2 x 2.5 x 0.7mm
FA-238V
14.745600 MHz
16 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
Q22FA23V0019200
3.2 x 2.5 x 0.7mm
FA-238V
12.288000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
Q22FA23V0019300
3.2 x 2.5 x 0.7mm
FA-238V
12.000000 MHz
12.5 pF
+/-50 ppm
+/-30 ppm
-20 to +70 °C
≤ 100 Ω
