蘋果在發(fā)布會上說,A16Bionic著力于3個部分,分別是能效powerefficiency、顯示display和攝像頭camera.拋開后兩個不談,只說能效而不說性能,或許說明了A16單純在性能上的提升并不大-我們此前說A15以及相同CPU微架構的M2的CPU性能提升就不算特別大.愛普生晶振這是否表明了蘋果這兩年在芯片設計上遇到了瓶頸?當然能效上的打磨價值也非常大,這也一直是蘋果的優(yōu)勢.前不久還談過今年更早的那批所謂的4nm芯片大概率都是假4nm,而A16極有可能才是真4nm,是不是應該有點滿意?

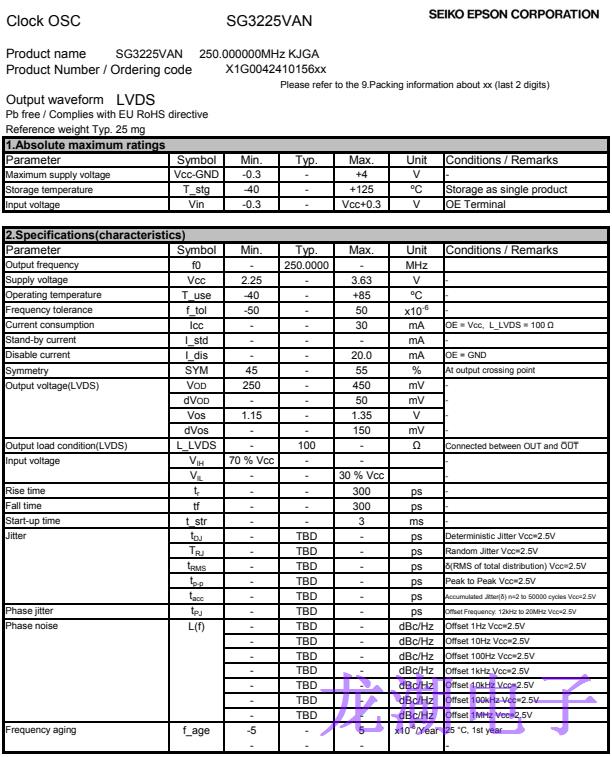

SG3225VAN愛普生晶振X1G004241015600,蘋果手機A16芯片晶體
愛普生有源晶振編碼
型號
頻率
長X寬X高
輸出波
電源電壓
工作溫度
頻差
X1G004241014800
SG3225VAN
116.713000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241014900
SG3225VAN
322.265625 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241015000
SG3225VAN
133.333333 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241015100
SG3225VAN
108.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241015300
SG3225VAN
300.120000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241015400
SG3225VAN
160.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241015500
SG3225VAN
148.351648 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241015600
SG3225VAN
250.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241015800
SG3225VAN
243.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241016200
SG3225VAN
148.351648 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
+/-20 ppm
X1G004241016300
SG3225VAN
108.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
+/-20 ppm
X1G004241016400
SG3225VAN
148.351600 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
+/-20 ppm
X1G004241016500
SG3225VAN
625.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241016700
SG3225VAN
144.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241016900
SG3225VAN
415.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241017100
SG3225VAN
128.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
+/-50 ppm
X1G004241017200
SG3225VAN
128.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241017300
SG3225VAN
161.132812 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241017400
SG3225VAN
656.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241018000
SG3225VAN
657.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241018100
SG3225VAN
625.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-30 ppm
X1G004241018400
SG3225VAN
148.350000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-40 to 85 °C
+/-50 ppm
X1G004241018500
SG3225VAN
300.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
+/-20 ppm
X1G004241018700
SG3225VAN
234.375000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
+/-30 ppm
X1G004241018800
SG3225VAN
117.187500 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.250 to 3.630 V
-20 to 70 °C
+/-30 ppm
蘋果A16堆了160億個晶體管——A15實則也有150億晶體管,以及這顆新的SoC芯片在顯示引擎和ISP上下了點工夫,那么堆料上能夠分派給CPU、GPU的余地也就不大了.石英晶振所以性能提升真的不做好.不過A16用上了臺積電的4nm工藝,比5nm先進不是?今年蘋果iPhone14系列新品發(fā)布會,談到A16芯片的部分信息算是很少；連往常都要出面談兩句Apple Silicon架構的Johny Srouji都沒出現,就A16芯片都沒有怎么介紹,實在是手機APSoC愛好者的不理解.
