當前位置：首頁 » 進口晶振 » Cardinal晶振 » CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振

prevnext

CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振

頻率：12MHZ

尺寸：20.80mmx13.20mm

CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振，尺寸20.80mmx13.20mm,頻率為12MHZ，石英晶體振蕩器，歐美進口晶振，有源晶體振蕩器，時鐘晶體振蕩器，OSC晶振，低抖動晶振，低相位晶振，儀器設備晶振，無線通信晶振，6G模塊晶振，6G放大器晶振，網絡設備晶振，物聯網晶振，智能家居晶振，電子產品專用晶振。

有源振蕩器產品主要應用：儀器設備，無線通信，6G模塊，6G放大器，網絡設備，物聯網，智能家居，電子產品等領域。CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振.

訂購熱線：0755-29952551

LH-1

LH-2

CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振 參數表

Description

Min

Typ

Max

Unit

Frequency Range:
Programmable to any discrete frequency

MHz

Available Stability Options:

-100
-50
-25

+100
+50
+25

PPM

Programmable Supply Voltage:

(1-133 MHz)
(1-100 MHz)
(1-66.0 MHz)

4.5
3.0
2.5

5.0
3.3
2.7

5.5
3.6
3.0

V
V
V

Operating Temperature Range Options:

-55
-20
-40

+125
+70
+85

°C
°C
°C

Storage Temperature:

--55

+125

°C

Aging:
Ta=°25C,Vdd=5V/3.3V

±5

PPM/Year

Description

Test Conditions

Min

Typ

Max

Unit

Duty Cycle:
TTL @ 1.4V
4.5‐5.5 VDD

≤ 50 MHz, CL = 50 pF
50 ‐ 66 MHz, CL = 15 pF
66 ‐ 125 MHz, CL = 25 pF
125 ‐ 133 MHz, CL = 15 pF

45

45

40

40

‐

‐

‐

‐

55

55

60

60

%
%
%
%

Duty Cycle:
CMOS @ VDD/2
4.5‐5.5 VDD

3.0‐3.6 VDD

≤ 66 MHz, CL ≤ 25 pF
66 ‐ 125 MHz, CL ≤ 25 pF
125 ‐ 133 MHz, CL ≤ 15 pF

≤ 40 MHz, CL ≤ 30 pF
40 ‐ 100 MHz, CL ≤ 15 pF

45

40

60

45

40

‐

‐

‐

‐

‐

55

60

60

55

60

%
%
%
%
%

Rise/Fall:

0.8V ‐ 2.0V, 4.5 ‐ 5.5 VDD, CL = 50 pF
0.8V ‐ 2.0V, 4.5 ‐ 5.5 VDD, CL = 25 pF
0.8V ‐ 2.0V, 4.5 ‐ 5.5 VDD, CL = 15 pF

0.2V ‐ 0.8 * VDD, 4.5 ‐ 5.5 VDD, CL = 50 pF
0.2V ‐ 0.8 * VDD, 3.0 ‐ 3.6 VDD, CL = 30 pF
0.2V ‐ 0.8 * VDD, 3.0 ‐ 3.6 VDD, CL = 15 pF

1.8

1.2

0.9

3.4

4.0

2.4

ns
ns
ns

ns
ns
ns

Start Up Time

From Power On

‐

Power Down Delay Time
Synchronous
Asynchronous

PWR_DOWN pin LOW to output Hi‐Z,
T = Frequency Oscillator Period

T/2
10

T+10

15

ns
ns

Output Disable Time
Synchronous
Asynchronous

OE pin LOW to output Hi‐Z,
T = Frequency Oscillator Period

T/2
10

T+10

15

ns
ns

Output Enable Time

100

RMS Period Jitter

≤ 33.000 MHz
> 33.000 MHz

11

8

13

11

ps
ps

Peak to Peak*

≤ 33.000 MHz
> 33.000 MHz

80

65

110

80

ps
ps

Description

Test Conditions

Min

Typ

Max

Unit

Input Characteristics (Pin 1):

VIL, Low‐ Level Input Voltage
(To Tri‐State or Power Down)

VDD = 5.0 V
VDD = 3.3 V
VDD = 2.7 V

‐

‐

‐

0.8

0.2 * VDD
0.2 * VDD

V

V

V

VIH, High‐ Level Input Voltage
(To Enable Output or Open)

VDD = 5.0 V
VDD = 3.3 V

2.0

0.7 * VDD

‐

‐

V

V

IIL, Input Low Current

VIN = 0 V

‐

µA

IIH, Input High Current

VIN = VDD

‐

µA

Output Characteristics:

VOL, Low‐ Level Output Voltage

VDD = 5.0 V, IOL = 16mA
VDD = 3.3 V, IOL = 8mA

‐

‐

0.4

0.4

V

V

VIHTTL, High‐ Level Output Voltage

VDD = 5.0 V, IOL = ‐ 16mA

2.4

‐

VIHCMOS, High‐ Level Output Voltage

VDD = 5.0 V, IOL = ‐ 16mA
VDD = 3.3 V, IOL = ‐8mA

VDD‐0.4
VDD‐0.4

‐

‐

V

V

Power Supply Current:
(Unloaded)

VDD = 5.0 V , FO ≤ 133 MHz
VDD = 3.3 V , FO ≤ 100 MHz
VDD = 2.7 V , FO ≤ 66.0 MHz

‐

‐

‐

45

25

20

mA

mA

mA

Standby Current:

‐

µA

Tri‐State Leakage Current

VDD = 5.0 V

‐

µA

Output Enable Mode:

Output is Tri‐Stated

Power Down Mode:

Output is Tri‐Stated

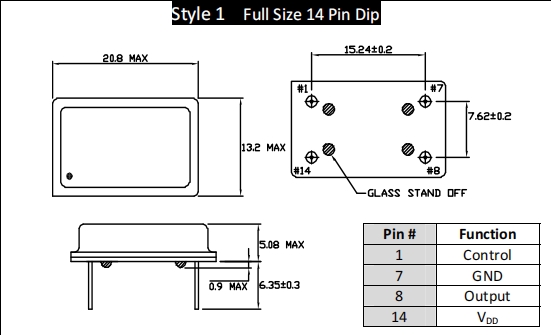

CPPFXT7L-A7BR-12.0TS 卡迪納爾晶振 OSC晶振 6G基站晶振 尺寸圖

產品特性：

可編程兩次

標準包選項

2.7V也可選
