頻率：50MHZ
尺寸：5.0x3.2mm
卡迪納爾5032陶瓷晶振,CX532Z-A2B3C5-70-50.0D18,CX532定位系統晶振，尺寸5.0x3.2mm，頻率50MHZ，美國Cardinal晶振，卡迪納爾陶瓷晶振，兩腳貼片晶振，無源晶振，SMD晶振，貼片無源晶體，輕薄型晶振，5032mm無源晶振，50MHZ貼片晶振，陶瓷晶振，環保晶振，低損耗晶振，低耗能晶振，低耗能晶振，高品質晶振，高精度晶振，定位系統晶振，智能手機晶振，藍牙專用晶振，物聯網晶振，小型設備晶振，游戲設備晶振，無線局域網晶振，尋呼機晶振，具有低耗能高精度的特點。
貼片晶體產品廣泛應用各個領域之中，比較常用于定位系統，智能手機，藍牙，物聯網，小型設備，游戲設備，無線局域網，尋呼機等領域.卡迪納爾5032陶瓷晶振,CX532Z-A2B3C5-70-50.0D18,CX532定位系統晶振.
卡迪納爾5032陶瓷晶振,CX532Z-A2B3C5-70-50.0D18,CX532定位系統晶振，尺寸5.0x3.2mm，頻率50MHZ，美國Cardinal晶振，卡迪納爾陶瓷晶振，兩腳貼片晶振，無源晶振，SMD晶振，貼片無源晶體，輕薄型晶振，5032mm無源晶振，50MHZ貼片晶振，陶瓷晶振，環保晶振，低損耗晶振，低耗能晶振，低耗能晶振，高品質晶振，高精度晶振，定位系統晶振，智能手機晶振，藍牙專用晶振，物聯網晶振，小型設備晶振，游戲設備晶振，無線局域網晶振，尋呼機晶振，具有低耗能高精度的特點。
貼片晶體產品廣泛應用各個領域之中，比較常用于定位系統，智能手機，藍牙，物聯網，小型設備，游戲設備，無線局域網，尋呼機等領域.卡迪納爾5032陶瓷晶振,CX532Z-A2B3C5-70-50.0D18,CX532定位系統晶振.

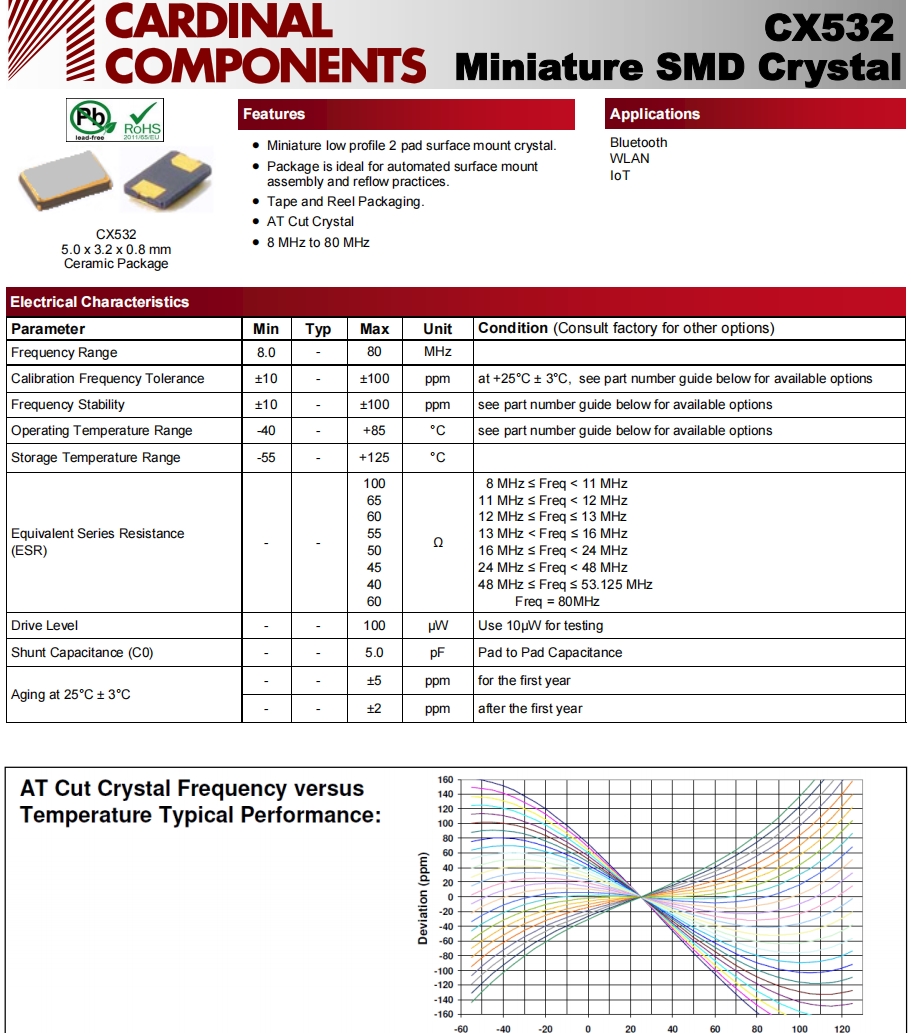

卡迪納爾5032陶瓷晶振,CX532Z-A2B3C5-70-50.0D18,CX532定位系統晶振 參數表
| Parameter | Min | Typ | Max | Unit | Condition (Consult factory for other options) | ||||||||||||||||||||||||||||||
| Frequency Range |
|
50.0 |
|
MHz | |||||||||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C, see part number guide below for available options | ||||||||||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | |||||||||||||||||||||||||||||||
|
Equivalent Series Resistance (ESR) |
- | - |
100 65 60 55 50 45 40 60 |
Ω |
8 MHz ≤ Freq < 11 MHz 11 MHz ≤ Freq < 12 MHz 12 MHz ≤ Freq ≤ 13 MHz 13 MHz < Freq ≤ 16 MHz 16 MHz ≤ Freq < 24 MHz 24 MHz ≤ Freq < 48 MHz 48 MHz ≤ Freq ≤ 53.125 MHz Freq = 80MHz |
||||||||||||||||||||||||||||||
| Drive Level | - | - | 100 | µW | Use 10µW for testing | ||||||||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 5.0 | pF | Pad to Pad Capacitance | ||||||||||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year | ||||||||||||||||||||||||||||||
| - | - | ±2 | ppm | after the first year | |||||||||||||||||||||||||||||||

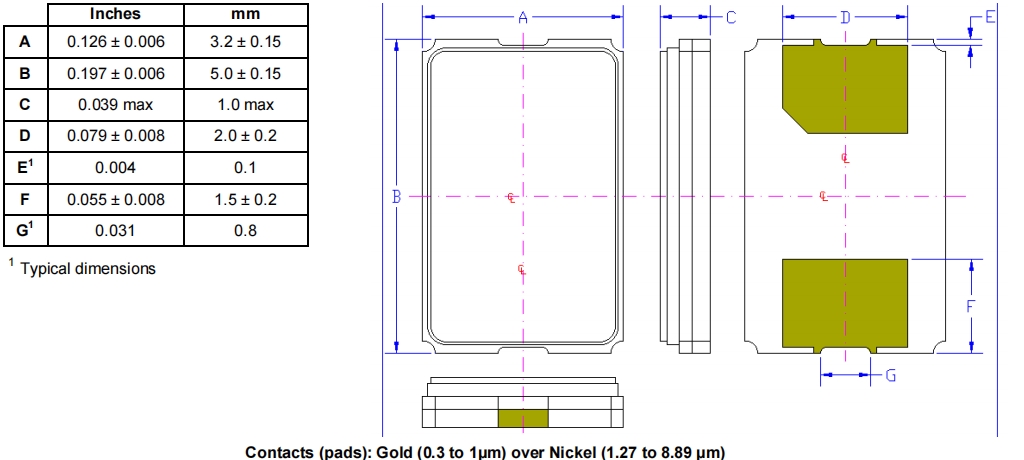

卡迪納爾5032陶瓷晶振,CX532Z-A2B3C5-70-50.0D18,CX532定位系統晶振 尺寸圖
卡迪納爾5032陶瓷晶振,CX532Z-A2B3C5-70-50.0D18,CX532定位系統晶振
諧振器產品特點:
微型低剖面2焊盤表面安裝晶體。
包裝是自動表面安裝的理想選擇組裝和回流實踐。
磁帶和卷軸包裝。
AT切割水晶
8MHz至80MHz
| Manufacturer Part Number 原廠編碼 | Manufacturer廠家 | Description 參數 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Operating Temperature 工作溫度 |
| CTF6-A2C5-32.768KD12.5 | Cardinal晶振 | CRYSTAL 32.7680KHZ 12.5PF T/H | CTF6 | 32.768kHz | - | -40°C ~ 85°C |
| CX5Z-A5B2C5-70-7.37280D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CX5 | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-12.288D18 | Cardinal晶振 | CRYSTAL 12.2880MHZ 18PF SMD | CX532 | 12.288MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM4 | 12MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-25.0D18-F | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CSM4 | 25MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX532 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CX5 | 7.3728MHz | ±50ppm | -40°C ~ 125°C |
| CX325Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX325 | 20MHz | ±50ppm | -20°C ~ 70°C |
| CX635A-A5B2C3-40-18.432D13 | Cardinal晶振 | CRYSTAL 18.4320MHZ 13PF SMD | CX635A | 18.432MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CSM4 | 10MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CSM4 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-6.0D18 | Cardinal晶振 | CRYSTAL 6.0000MHZ 18PF SMD | CSM4 | 6MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM4 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-29.49152D18-F | Cardinal晶振 | CRYSTAL 29.49152MHZ 18PF SMD | CSM4 | 29.49152MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CRYSTAL 26.0000MHZ 18PF SMD | CSM4 | 26MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM4 | 4MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CRYSTAL 9.8304MHZ 18PF SMD | CSM4 | 9.8304MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM4 | 11.0592MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM4 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM4 | 7.3728MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX5 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CX5 | 24.576MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -10°C ~ 70°C |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -10°C ~ 60°C |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CRYSTAL 19.6608MHZ 18PF SMD | CX532 | 19.6608MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CX532 | 33MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CRYSTAL 17.7456MHZ 18PF SMD | CX532 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CRYSTAL 50.0000MHZ 18PF SMD | CX532 | 50MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CRYSTAL 30.0000MHZ 18PF SMD | CX532 | 30MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -20°C ~ 70°C |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD晶振 | CX5 | 25MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX532 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-14.7456D18 | Cardinal晶振 | CRYSTAL 14.7456MHZ 18PF SMD | CSM4 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX5 | 12MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX5 | 12MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX635BZ-A1B2C3-80-14.31818D20 | Cardinal晶振 | CRYSTAL 14.31818MHZ 20PF SMD | CX635B | 14.31818MHz | ±50ppm | -10°C ~ 70°C |
| CX532Z-A5B3C5-70-18.432D18 | Cardinal晶振 | CRYSTAL 18.4320MHZ 18PF SMD | CX532 | 18.432MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CSM4 | 33MHz | ±30ppm | -40°C ~ 85°C |
