頻率：16MHz
尺寸：2.0*1.6mm
FC1BSCCEM16.0-T3,石英晶體諧振器,高頻晶振,福克斯電子,四腳貼片晶振,石英晶振,高頻晶振,福克斯進口晶振,FOX超小型晶振,6G信號發射塔晶振,福克斯晶振深圳授權代理商,福克斯石英晶振,耐高溫特性使得它能夠在-40°C至85°C的環境下能夠平穩的運行,負載電容:10pF,頻率:16MHz,頻率偏差:±30ppm,頻率容差:±30ppm,型號:FC1BS,
FC1BSCCEM16.0-T3,石英晶體諧振器,高頻晶振,福克斯電子
| 原廠編碼 | FC1BSCCEM16.0-T3 |
| 頻率 | 16MHz |
| 廠家 | FOX晶振 |
| 型號 | FC1BS |
| 頻率偏差 | ±30ppm |
| 負載電容 | 10pF |
| 工作溫度 | -40°C至85°C |

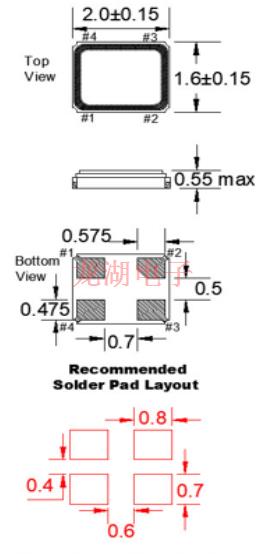

| 尺寸 | 2.0*1.6mm |
FC1BSCCEM16.0-T3,石英晶體諧振器,高頻晶振,福克斯電子
| 編碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 頻率容差 | 負載電容 |
| FC3BACAGI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 12 pF |
| FC3BACALI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 18 pF |
| FC3BACBDI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±30ppm | 8 pF |
| FC3BACCGM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BACCLP12.0-T3 | Fox crystal | FC3BA | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| FC3BAEBDI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI16.0-T1 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI20.0-T1 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BQBBME12.0-T3 | Fox crystal | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME16.0-T1 | Fox crystal | FC3BQ | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME24.0-T1 | Fox crystal | FC3BQ | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME25.0-T1 | Fox crystal | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME25.0-T3 | Fox crystal | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME27.0-T1 | Fox crystal | FC3BQ | 27 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM12.0-T1 | Fox crystal | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM12.0-T3 | Fox crystal | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T1 | Fox crystal | FC3BQ | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T3 | Fox crystal | FC3BQ | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM25.0-T1 | Fox crystal | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
深圳市龍湖電子有限公司
服務熱線：86-0755-29952551
手機聯系：136-3294-3514
Q Q聯系：969080538
郵 箱：longhusz@163.com
地 址：深圳市寶安區新安街道安樂社區二街
貼片晶振本身體積小,超薄型石英晶體諧振器,特別適用于有目前高速發展的高端電子數碼產品,因為晶振本身小型化需求的市場領域,小型,薄型是對應陶瓷諧振器（偏差大）和普通的石英晶體諧振器（偏差小）的中間領域的一種性價比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航HDD, SSD, USB, Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性.
