頻率：16MHz
尺寸：3.2*2.5mm
FC3BACBDI16.0-T3,石英貼片,fox小型晶振,環保晶振,福克斯電子石英晶振諧振器,超薄晶振,小尺寸晶振,無源貼片晶振,進口晶振,導熱型晶振,FC3BA晶振,16MHz晶振,車載晶振,在-40到12度也能平穩的且持續的運行,優秀的適應性子在各種環境已有能夠很快的適應,醫療器械晶振,智能機器人晶振面,有著陶瓷晶振更好的抗沖擊
FC3BACBDI16.0-T3,石英貼片,fox小型晶振,環保晶振
原廠編碼
FC3BACBDI16.0-T3
頻率
16MHz
廠家
FOX晶振
型號
FC3BA
頻率偏差
±50ppm
負載電容
8pF
工作溫度
-40°C至12°C

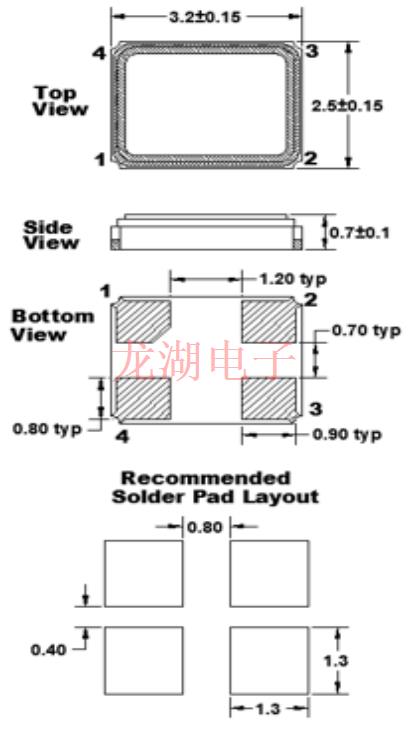

尺寸
3.2*2.5mm
FC3BACBDI16.0-T3,石英貼片,fox小型晶振,環保晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 頻率容差 | 負載電容 |
| FC2BSBBMM16.0-T1 | Fox crystal | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC2BSBBMM16.0-T3 | Fox crystal | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BABBKM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±50ppm | 16 pF |
| FC3BACAGI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 12 pF |
| FC3BACALI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 18 pF |
| FC3BACBDI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±30ppm | 8 pF |
| FC3BACCGM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BACCLP12.0-T3 | Fox crystal | FC3BA | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| FC3BAEBDI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI16.0-T1 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI20.0-T1 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI8.0-T1 | Fox crystal | FC3BA | 8 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBGI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BQBBDM20.0-T3 | Fox crystal | FC3BQ | 20 MHz | ±50ppm | ±50ppm | 8 pF |
| FC3BQBBME12.0-T3 | Fox crystal | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME16.0-T1 | Fox crystal | FC3BQ | 16 MHz | ±50ppm | ±50ppm | 20 pF |
