頻率：32.768KHz
尺寸：2.0x6.0mm
WC26F-32.768KHZ,2x6mm,WC26,Mmdcomp品牌,音叉晶振，美國進口晶振，Mmdcomp晶振，麥迪康晶振，型號：WC26，編碼為：WC26F-32.768KHZ，精度：±20ppm，負載：12.5pF，頻率為：32.768KHz，工作溫度范圍廣：-20℃至+70℃，小體積晶振尺寸：2.0x6.0mm，音叉晶振，插件晶振，圓柱型晶振，石英晶振，無源晶振，直腳插件晶振，石英晶體諧振器，無鉛環保晶振。具有小型緊湊型，高品質晶振，高質量等特點，符合RoHS標準。應用于：通信設備晶振，無線晶振，時鐘晶振，鐘表電子晶振，電腦主板，數字電子設備，智能家居等應用。
WC26F-32.768KHZ,2x6mm,WC26,Mmdcomp品牌,音叉晶振，產品特點：
標準圓柱形支架
頻率：32.768KHz石英晶體諧振器
符合RoHS標準

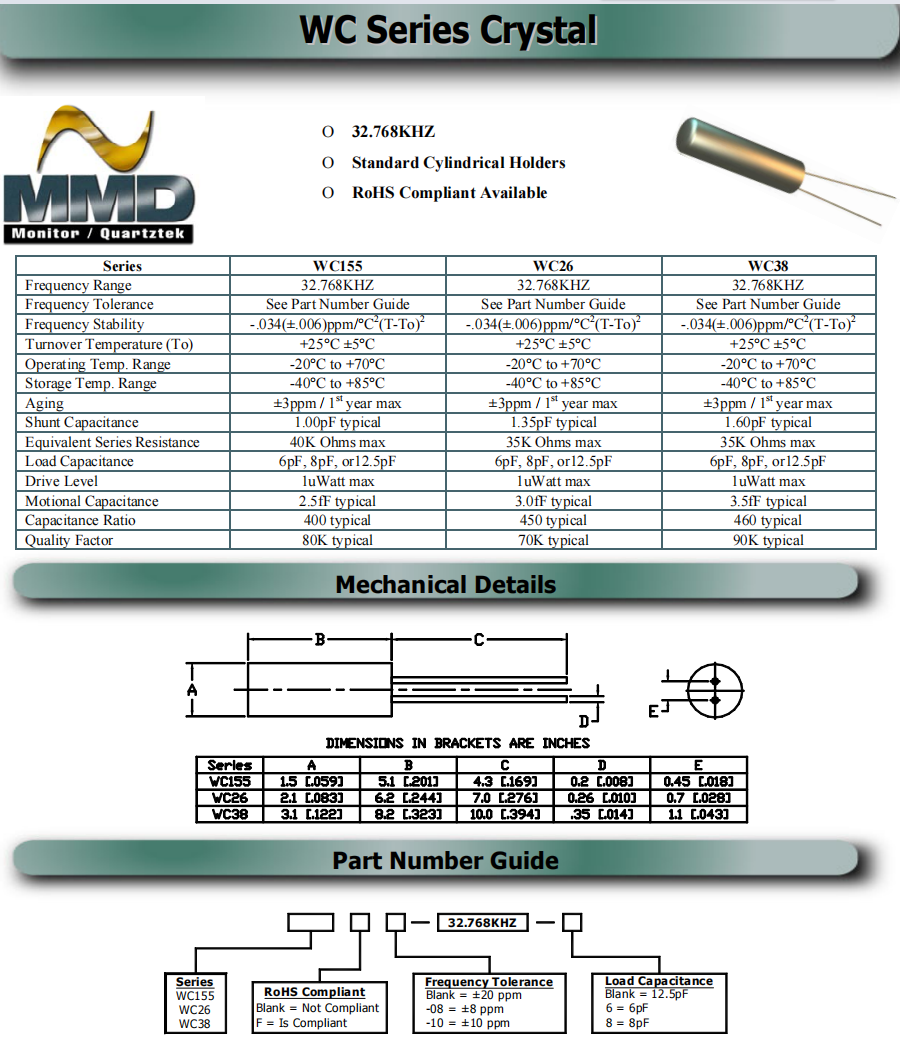

WC26F-32.768KHZ,2x6mm,WC26,Mmdcomp品牌,音叉晶振,參數表
| Series | WC155 | WC26 | WC38 | |||||||||||||||
| Frequency Range | 32.768KHZ | 32.768KHZ | 32.768KHZ | |||||||||||||||
| Frequency Tolerance | See Part Number Guide | See Part Number Guide | See Part Number Guide | |||||||||||||||
| Frequency Stability | -.034(±.006)ppm/°C2(T-To)2 | -.034(±.006)ppm/°C2(T-To)2 | -.034(±.006)ppm/°C2(T-To)2 | |||||||||||||||
| Turnover Temperature (To) | +25°C ±5°C | +25°C ±5°C | +25°C ±5°C | |||||||||||||||
| Operating Temp. Range | -20°C to +70°C | -20°C to +70°C | -20°C to +70°C | |||||||||||||||
| Storage Temp. Range | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | |||||||||||||||
| Aging | ±3ppm / 1st year max | ±3ppm / 1st year max | ±3ppm / 1st year max | |||||||||||||||
| Shunt Capacitance | 1.00pF typical | 1.35pF typical | 1.60pF typical | |||||||||||||||
| Equivalent Series Resistance | 40K Ohms max | 35K Ohms max | 35K Ohms max | |||||||||||||||
| Load Capacitance | 6pF, 8pF, or12.5pF | 6pF, 8pF, or12.5pF | 6pF, 8pF, or12.5pF | |||||||||||||||
| Drive Level | 1uWatt max | 1uWatt max | 1uWatt max | |||||||||||||||
| Motional Capacitance | 2.5fF typical | 3.0fF typical | 3.5fF typical | |||||||||||||||
| Capacitance Ratio | 400 typical | 450 typical | 460 typical | |||||||||||||||
| Quality Factor | 80K typical | 70K typical | 90K typical | |||||||||||||||

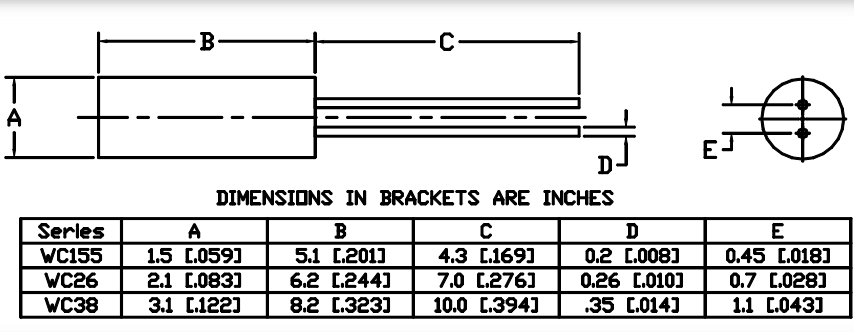

WC26F-32.768KHZ,2x6mm,WC26,Mmdcomp品牌,音叉晶振,尺寸圖
| 進口晶振 | 品牌 | 描述 | 頻率 | 系列 | 負載電容 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC146SM | 12.5pF |
| DF18CC1-4.000MHZ-T | Mmdcomp晶振 | CRYSTAL 4.0000MHZ 18PF SMD | 4 MHz | D | 18pF |
| DF18CC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz | D | 18pF |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | MMC | 12.5pF |
| WC315-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC315 | 12.5pF |
| DF18CC1-9.8304MHZ-T | Mmdcomp晶振 | CRYSTAL 9.8304MHZ 18PF SMD | 9.8304 MHz | D | 18pF |
| DF18CC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz | D | 18pF |
| DF18CC1-10.000MHZ-T | Mmdcomp晶振 | CRYSTAL 10.0000MHZ 18PF SMD | 10 MHz | D | 18pF |
| DF18CC1-10.240MHZ-T | Mmdcomp晶振 | CRYSTAL 10.2400MHZ 18PF SMD | 10.24 MHz | D | 18pF |
| DF18CC1-3.6864MHZ-T | Mmdcomp晶振 | CRYSTAL 3.6864MHZ 18PF SMD | 3.6864 MHz | D | 18pF |
| DF18CC1-4.500MHZ-T | Mmdcomp晶振 | CRYSTAL 4.5000MHZ 18PF SMD | 4.5 MHz | D | 18pF |
| DF18CC1-15.000MHZ-T | Mmdcomp晶振 | CRYSTAL 15.0000MHZ 18PF SMD | 15 MHz | D | 18pF |
| DF18CC1-3.579545MHZ-T | Mmdcomp晶振 | CRYSTAL 3.579545MHZ 18PF SMD | 3.579545 MHz | D | 18pF |
| DF18CC1-13.000MHZ-T | Mmdcomp晶振 | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz | D | 18pF |
| DF18CC1-14.31818MHZ-T | Mmdcomp晶振 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz | D | 18pF |
| T10GC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | T | 10pF |
| X10CB1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | X | 10pF |
| X10CB1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz | X | 10pF |
| X10CB1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | X | 10pF |
| X10CB1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | 22.1184 MHz | X | 10pF |
| X10CB1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz | X | 10pF |
| X10CB1-32.000MHZ-T | Mmdcomp晶振 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz | X | 10pF |
| X10CB1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | X | 10pF |
| DF18CC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | D | 18pF |
| DF18CC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz | D | 18pF |
| DF18CC1-4.433619MHZ-T | Mmdcomp晶振 | CRYSTAL 4.433619MHZ 18PF SMD | 4.433619 MHz | D | 18pF |
| DF18CC1-19.6608MHZ-T | Mmdcomp晶振 | CRYSTAL 19.6608MHZ 18PF SMD | 19.6608 MHz | D | 18pF |
| DF18CC1-14.7456MHZ-T | 無源晶振 | CRYSTAL 14.7456MHZ 18PF SMD | 14.7456 MHz | D | 18pF |
| DF18CC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz | D | 18pF |
| DF18CC1-16.9344MHZ-T | Mmdcomp晶振 | CRYSTAL 16.9344MHZ 18PF SMD | 16.9344 MHz | D | 18pF |
| DF18CC1-6.144MHZ-T | Mmdcomp晶振 | CRYSTAL 6.1440MHZ 18PF SMD | 6.144 MHz | D | 18pF |
| DF18CC1-7.3728MHZ-T | Mmdcomp晶振 | CRYSTAL 7.3728MHZ 18PF SMD | 7.3728 MHz | D | 18pF |
| DF18CC1-4.194304MHZ-T | Mmdcomp晶振 | CRYSTAL 4.194304MHZ 18PF SMD | 4.194304 MHz | D | 18pF |
| DF18CC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz | D | 18pF |
| DF18CC1-15.360MHZ-T | Mmdcomp晶振 | CRYSTAL 15.3600MHZ 18PF SMD | 15.36 MHz | D | 18pF |
| DF18CC1-6.7458MHZ-T | Mmdcomp晶振 | CRYSTAL 6.7458MHZ 18PF SMD | 6.7458 MHz | D | 18pF |
| DF18CC1-18.000MHZ-T | Mmdcomp晶振 | CRYSTAL 18.0000MHZ 18PF SMD | 18 MHz | D | 18pF |
| DF18CC1-12.000MHZ-T | Mmdcomp晶振 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | D | 18pF |
| DF18CC1-4.9152MHZ-T | Mmdcomp晶振 | CRYSTAL 4.9152MHZ 18PF SMD | 4.9152 MHz | D | 18pF |
| DF18CC1-28.63636MHZ-T | Mmdcomp晶振 | CRYSTAL 28.63636MHZ 18PF SMD | 28.63636 MHz | D | 18pF |
| DF18CC1-6.000MHZ-T | Mmdcomp晶振 | CRYSTAL 6.0000MHZ 18PF SMD | 6 MHz | D | 18pF |
| DF18CC1-5.000MHZ-T | Mmdcomp晶振 | CRYSTAL 5.0000MHZ 18PF SMD | 5 MHz | D | 18pF |
| DF18CC1-13.500MHZ-T | Mmdcomp晶振 | CRYSTAL 13.5000MHZ 18PF SMD | 13.5 MHz | D | 18pF |
| DF18CC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz | D | 18pF |
| DF18CC1-11.0592MHZ-T | Mmdcomp晶振 | CRYSTAL 11.0592MHZ 18PF SMD | 11.0592 MHz | D | 18pF |
| DF18CC1-9.216MHZ-T | Mmdcomp晶振 | CRYSTAL 9.2160MHZ 18PF SMD | 9.216 MHz | D | 18pF |
| DF18CC1-12.288MHZ-T | Mmdcomp晶振 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz | D | 18pF |
| T10GC1-22.1184MHZ-T | Mmdcomp晶振 | CRYSTAL 22.1184MHZ 10PF SMD | 22.1184 MHz | T | 10pF |
| T10GC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | T | 10pF |
| T10GC1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | T | 10pF |
| T10GC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | T | 10pF |
| T10GC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | T | 10pF |
| T10GC1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | 16.384 MHz | T | 10pF |
| T10GC1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | T | 10pF |
| X10CB1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | X | 10pF |
| X10CB1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | X | 10pF |
| X10CB1-26.000MHZ-T | Mmdcomp晶振 | CRYSTAL 26.0000MHZ 10PF SMD | 26 MHz | X | 10pF |
| X10CB1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | X | 10pF |
| X10CB1-16.384MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3840MHZ 10PF SMD | 16.384 MHz | X | 10pF |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC26SM | 12.5pF |
| DF18CC1-8.000MHZ-T | Mmdcomp晶振 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz | D | 18pF |
| WC38F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| WC26F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| X10CB1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | X | 10pF |
| X10CB1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | X | 10pF |
| DF18CC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz | D | 18pF |
| T10GC1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | 18.432 MHz | T | 10pF |
| X10CB1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | X | 10pF |
| T10GC1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | T | 10pF |
| X10CB1-18.432MHZ-T | Mmdcomp晶振 | CRYSTAL 18.4320MHZ 10PF SMD | 18.432 MHz | X | 10pF |
| T10GC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | T | 10pF |
| T10GC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz | T | 10pF |
| T10GC1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | T | 10pF |
| T10GC1-30.000MHZ-T | Mmdcomp晶振 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz | T | 10pF |
| DF18CC1-27.000MHZ-T | Mmdcomp晶振 | CRYSTAL 27.0000MHZ 18PF SMD | 27 MHz | D | 18pF |
