頻率：32.768KHz
尺寸：2.0x6.0mm
WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振，美國進口晶振，MMD晶振，Mmdcomp晶振，麥迪康晶振，產品編碼為：WC26SMFC-32.768KHZ-T，型號：WC26SM，精度：±10ppm，頻率為：32.768KHz，負載：12.5pF，工作溫度范圍廣：-40℃至+85℃，小體積晶振尺寸：2.0x6.0mm，插件晶體，石英晶振，無源晶振，石英晶體，彎腳插件晶振，石英晶體諧振器，無鉛環保晶振。具有小型緊湊型，高性能晶振，耐熱及耐環境特點，符合RoHS。應用于：通訊設備晶振，藍牙模塊，時鐘晶振，儀器儀表設備，電腦主板，數字顯示設備，智能家居等應用。
WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振，產品特點：
表面安裝式時鐘晶體
頻率：32.768KHz，小型緊湊型
符合RoHS

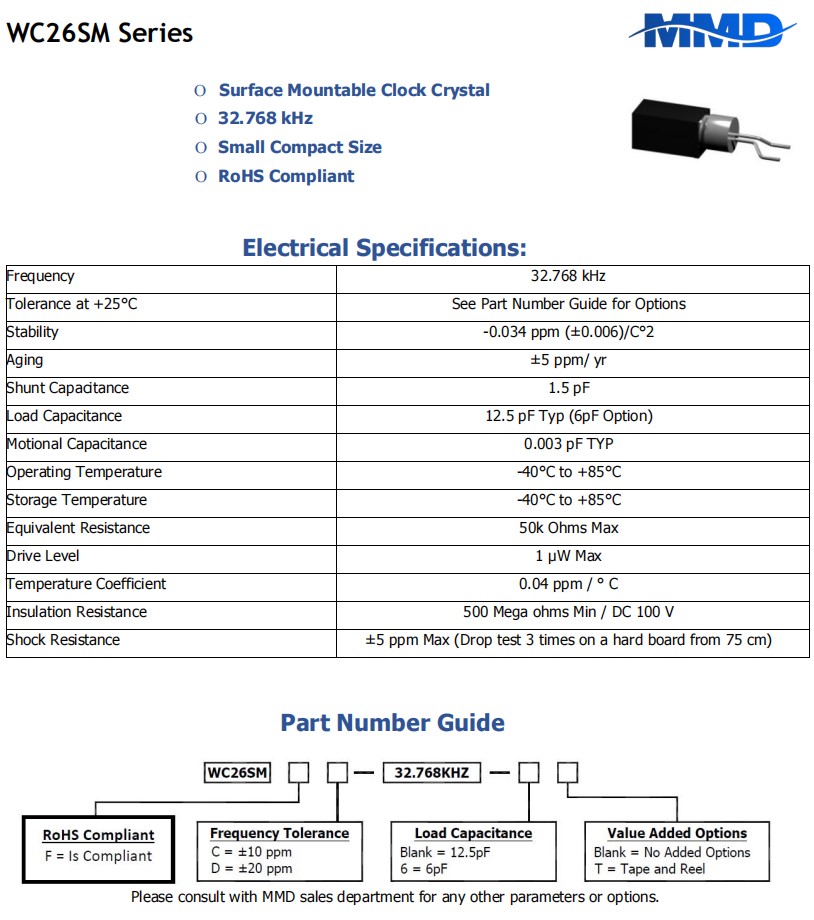

WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振,參數表
| Frequency | 32.768 kHz | |||||
| Tolerance at +25°C | See Part Number Guide for Options | |||||
| Stability | -0.034 ppm (±0.006)/C°2 | |||||
| Aging | ±5 ppm/ yr | |||||
| Shunt Capacitance | 1.5 pF | |||||
| Load Capacitance | 12.5 pF Typ (6pF Option) | |||||
| Motional Capacitance | 0.003 pF TYP | |||||
| Operating Temperature | -40°C to +85°C | |||||
| Storage Temperature | -40°C to +85°C | |||||
| Equivalent Resistance | 50k Ohms Max | |||||
| Drive Level | 1 µW Max | |||||
| Temperature Coefficient | 0.04 ppm / ° C | |||||
| Insulation Resistance | 500 Mega ohms Min / DC 100 V | |||||
| Shock Resistance | ±5 ppm Max (Drop test 3 times on a hard board from 75 cm) |
|||||

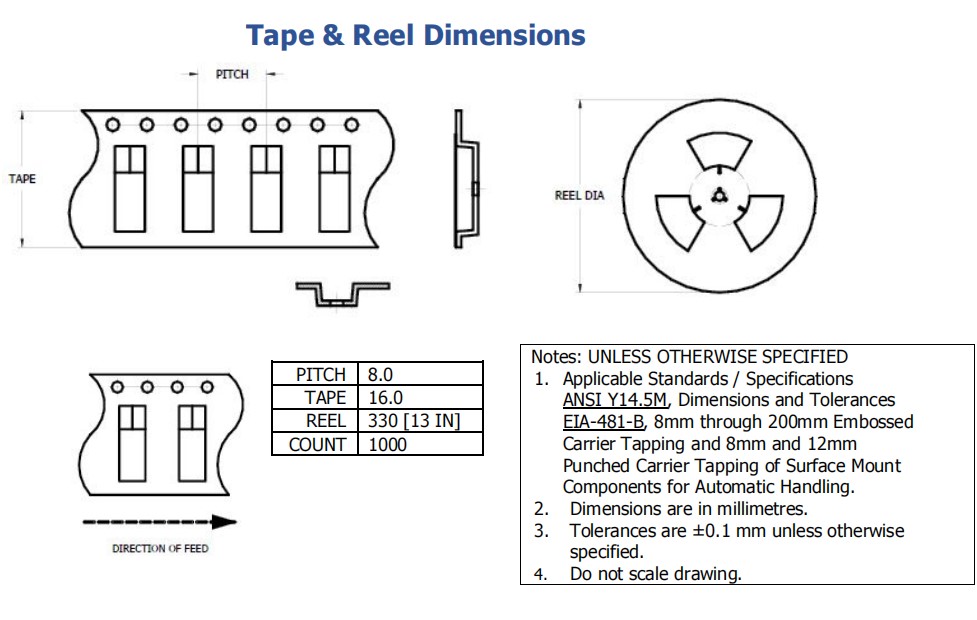

WC26SMFC-32.768KHZ-T,2x6mm,WC26SM,Mmdcomp陶瓷晶振,尺寸圖
| 進口晶振 | 品牌 | 描述 | 頻率 | 系列 | 負載電容 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC146SM | 12.5pF |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | MMC | 12.5pF |
| WC315-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC315 | 12.5pF |
| DF18CC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz | D | 18pF |
| DF18CC1-10.240MHZ-T | Mmdcomp晶振 | CRYSTAL 10.2400MHZ 18PF SMD | 10.24 MHz | D | 18pF |
| DF18CC1-13.000MHZ-T | Mmdcomp晶振 | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz | D | 18pF |
| T10GC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | T | 10pF |
| X10CB1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | X | 10pF |
| X10CB1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | X | 10pF |
| X10CB1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | X | 10pF |
| DF18CC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | D | 18pF |
| DF18CC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz | D | 18pF |
| DF18CC1-18.000MHZ-T | Mmdcomp晶振 | CRYSTAL 18.0000MHZ 18PF SMD | 18 MHz | D | 18pF |
| DF18CC1-12.000MHZ-T | Mmdcomp晶振 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | D | 18pF |
| DF18CC1-13.500MHZ-T | Mmdcomp晶振 | CRYSTAL 13.5000MHZ 18PF SMD | 13.5 MHz | D | 18pF |
| DF18CC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz | D | 18pF |
| DF18CC1-12.288MHZ-T | Mmdcomp晶振 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz | D | 18pF |
| T10GC1-24.000MHZ-T | 無源晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | T | 10pF |
| T10GC1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | T | 10pF |
| T10GC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | T | 10pF |
| T10GC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | T | 10pF |
| T10GC1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | T | 10pF |
| X10CB1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | X | 10pF |
| X10CB1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | X | 10pF |
| X10CB1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | X | 10pF |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC26SM | 12.5pF |
| WC38F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| WC26F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| X10CB1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | X | 10pF |
| X10CB1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | X | 10pF |
| DF18CC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz | D | 18pF |
| X10CB1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | X | 10pF |
| T10GC1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | T | 10pF |
| T10GC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | T | 10pF |
| T10GC1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | T | 10pF |
