LH-1

Renesas超低抖動晶振,XPL736125.000000I,高精度測量設備晶振，進口晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPL736125.000000I，頻率為：125.000MHz，小體積晶振尺寸：7.0x5.0x1.7mm封裝，8墊腳貼片晶振，LVDS輸出差分晶體振蕩器，差分晶振，石英晶振，SMD晶振，有源晶振，石英晶體振蕩器，電壓3.3V，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低相位噪聲，低損耗，低耗能，低電平等特點。應用于：移動通訊設備，物聯網，無線網絡，藍牙模塊，路由器，交換機，以太網，儀器儀表、SATA，SAS，光纖通道，導航儀，醫療設備，安防設備等應用。

XP系列是超低相位噪聲的基于石英的PLL振蕩器，支持大范圍的頻率和輸出接口類型。這些設備被設計為操作在三種不同的電源供應，并可在三種包裝尺寸與幾種針形配置，以及三種操作溫度范圍。XP設備可以通過編程產生從15MHz到2100MHz的輸出頻率，分辨率低至1Hz的精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。

LH-2

Renesas超低抖動晶振,XPL736125.000000I,高精度測量設備晶振,參數表

Parameter	TestCondition		Minimum	Typical	Maximum	Units
OutputFrequencyRange	LVDS,LVPECL,CML.			—	125.000	MHz
OutputFrequencyRange	HCSL.		15	—	725
Frequency Stability	Temperature=-40°Cto+85°C.		—	—	±25	ppm
Frequency Stability	Temperature=-40°Cto+105°C.		—	—	±50	ppm
Frequency Tolerance (25°C)	Temperature=25°C.		-15	±10	-15	ppm
Aging(1styear)	TA=25°C.		—	—	±3	ppm
Aging(10years)	TA=25°C.		—	—	±10	ppm
Output Load	LVDS.	Differential.	—	100	—	Ω
	LVPECL.	VDD-2.0V.	—	50	—
	HCSL.	ToGND.	—	50	—
Start-up Time	Output valid time after VDD meets minimum specified level.		—	5	—	ms
OutputRiseTime	LVDS.	20% – 80%, 156.25MHz	—	299	400	ps
	LVPECL.		—	287	400
	HCSL.		—	306	400
	CML		—	301	400
OutputFallTime	LVDS.	20% – 80%, 156.25MHz	—	279	400	ps
	LVPECL.		—	274	400
	HCSL.		—	284	400
	CML		—	279	400
OutputClockDutyCycle	LVDS.	156.25MHz	48	—	52	%
	LVPECL.	156.25MHz	48	—	52
	HCSL.	156.25MHz	48	—	52
	CML	156.25MHz	48	—	52
OutputEnable/DisableTime	—	—	—	1	—	ms

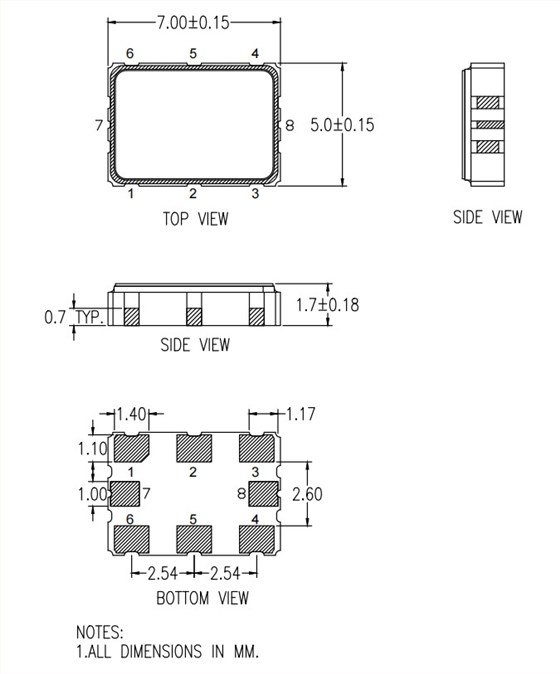

Renesas超低抖動晶振,XPL736125.000000I,高精度測量設備晶振,尺寸圖

Renesas超低抖動晶振,XPL736125.000000I,高精度測量設備晶振

產品特點：

輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：

7.0×5.0×1.7mm石英晶體振蕩器

5.0×3.2×1.17mm

3.2×2.5×1.07mm
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm

編碼	進口晶振	描述	系列	頻率	輸出	電壓
XPL536800.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	800 MHz	LVDS	3.3V
XPL526200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	200 MHz	LVDS	2.5V
XPL316133.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	133.333333 MHz	LVDS	1.8V
XPL336016.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	16 MHz	LVDS	3.3V
XPL536C10.937500I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	1.2109375 GHz	LVDS	3.3V
XPL736156.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	156.25 MHz	LVDS	3.3V
XPL536148.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	148.5 MHz	LVDS	3.3V
XPL736148.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	148.5 MHz	LVDS	3.3V
XPL336148.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	148.5 MHz	LVDS	3.3V
XPL336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156.25 MHz	LVDS	3.3V
XPL336125.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	125 MHz	LVDS	3.3V
XPL316050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	50 MHz	LVDS	1.8V
XPL316032.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	32 MHz	LVDS	1.8V
XPL516156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS	1.8V
XPL336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	100 MHz	LVDS	3.3V
XPL736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	125 MHz	LVDS	3.3V
XPL536148.163548I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	148.163548 MHz	LVDS	3.3V
XPL736300.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	300 MHz	LVDS	3.3V
XPL316156.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156 MHz	LVDS	1.8V
XPL326200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	200 MHz	LVDS	2.5V
XPL526312.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	312.5 MHz	LVDS	2.5V
XPL336040.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	40 MHz	LVDS	3.3V
XPL736800.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	800 MHz	LVDS	3.3V
XPL536070.656000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	70.656 MHz	LVDS	3.3V
XPL316033.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	33.333333 MHz	LVDS	1.8V
XPL316080.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	80 MHz	LVDS	1.8V
XPL336200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	200 MHz	LVDS	3.3V
XPL336644.531250I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	644.53125 MHz	LVDS	3.3V
XPL326156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156.25 MHz	LVDS	2.5V
XPL326500.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	500 MHz	LVDS	2.5V
XPL336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	830 MHz	LVDS	3.3V
XPL516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	625 MHz	LVDS	1.8V
XPL316322.265625I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	322.265625 MHz	LVDS	1.8V
XPL526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS	2.5V
XPL726B00.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	1.1 GHz	LVDS	2.5V
XPL336049.152000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	49.152 MHz	LVDS	3.3V
XPL316026.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	26 MHz	LVDS	1.8V
XPL736016.254000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	16.254 MHz	LVDS	3.3V
XPL336070.656000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	70.656 MHz	LVDS	3.3V
XPL726C00.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	1.2 GHz	LVDS	2.5V
XPL536200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	200 MHz	LVDS	3.3V
XPL326161.132800I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	161.1328 MHz	LVDS	2.5V
XPL336160.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	160 MHz	LVDS	3.3V
XPL336830.078125I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	830.078125 MHz	LVDS	3.3V
XPL336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	312.5 MHz	LVDS	3.3V
XPL526027.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	27 MHz	LVDS	2.5V
XPL516125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	1.8V
XPL726156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS	2.5V
XPL726200.000000I	石英晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS	2.5V
XPL736148.351648I	Renesas晶振	XTAL OSC XO 148.351648MHZ LVDS	XPL	148.351648 MHz	LVDS	3.3V
XPL526125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	2.5V
XPL736F00.000000I	Renesas晶振	XTAL OSC XO 1.5000GHZ LVDS SMD	XPL	1.5 GHz	LVDS	3.3V
XPL736165.000000I	Renesas晶振	XTAL OSC XO 165.0000MHZ LVDS SMD	XPL	165 MHz	LVDS	3.3V
XPL736200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS	3.3V
XPL726125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	2.5V
XPL726166.666000I	Renesas晶振	XTAL OSC XO 166.6660MHZ LVDS SMD	XPL	166.666 MHz	LVDS	2.5V
XPL736322.265625I	Renesas晶振	XTAL OSC XO 322.265625MHZ LVDS	XPL	322.265625 MHz	LVDS	3.3V
XPL536800.000000K	Renesas晶振	XTAL OSC XO 800.0000MHZ LVDS SMD	XPL	800 MHz	LVDS	3.3V
XPL735156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS	3.3V
XPL735015.000000K	Renesas晶振	XTAL OSC XO 15.0000MHZ LVDS SMD	XPL	15 MHz	LVDS	3.3V
XPL735100.000000K	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	3.3V
XPL725200.000000K	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS	2.5V
XPL735025.000000K	Renesas晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	XPL	25 MHz	LVDS	3.3V
XPL735153.600000K	Renesas晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	XPL	153.6 MHz	LVDS	3.3V
XPL735208.125000K	Renesas晶振	XTAL OSC XO 208.1250MHZ LVDS SMD	XPL	208.125 MHz	LVDS	3.3V
XPL536078.125000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	78.125 MHz	LVDS	3.3V
XPL536250.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	250 MHz	LVDS	3.3V
XPL536150.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	150 MHz	LVDS	3.3V
XPL536125.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	125 MHz	LVDS	3.3V
XPL536156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS	3.3V
XPL336016.800000I	Renesas晶振	XTAL OSC XO 16.8000MHZ LVDS SMD	XPL	16.8 MHz	LVDS	3.3V
XPL316102.400000I	Renesas晶振	XTAL OSC XO 102.4000MHZ LVDS SMD	XPL	102.4 MHz	LVDS	1.8V
XPL336150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	XPL	150 MHz	LVDS	3.3V
XPL326125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	2.5V
XPL336050.000000I	Renesas晶振	XTAL OSC XO 50.0000MHZ LVDS SMD	XPL	50 MHz	LVDS	3.3V
XPL326100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	2.5V
XPL316625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVDS SMD	XPL	625 MHz	LVDS	1.8V
XPL526100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	2.5V
XPL726100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	2.5V
XPL316100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	1.8V
XPL336333.330000I	Renesas晶振	XTAL OSC XO 333.3300MHZ LVDS SMD	XPL	333.33 MHz	LVDS	3.3V
XPL716156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS	1.8V
