當前位置：首頁 » 進口晶振 » Oscilent晶振 » 223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ

prevnext

223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ

頻率：32.768KHZ

尺寸：8.0x3.8mm

223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ,歐美進口晶振,奧斯康利無源晶振,貼片無源晶振,陶瓷晶振,輕薄型晶振,32.768K貼片晶振,音叉晶體,陶瓷諧振器,SMD晶振,8038mm晶體諧振器,尺寸8.0x3.8mm,頻率32.768KHZ,負載6.0pF,無鉛環保晶振,高性能晶振,高可靠晶振,低損耗晶振,無線鼠標晶振,電話機晶振,數字電表晶振,時鐘應用晶振.

訂購熱線：0755-29952551

LH-1

223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ特點:

低調,長期穩定性

貼片晶體行業標準占地面積,卓越的抗震性能

卓越的環境特性,磁帶和卷軸
RoHs/無鉛合規

LH-2

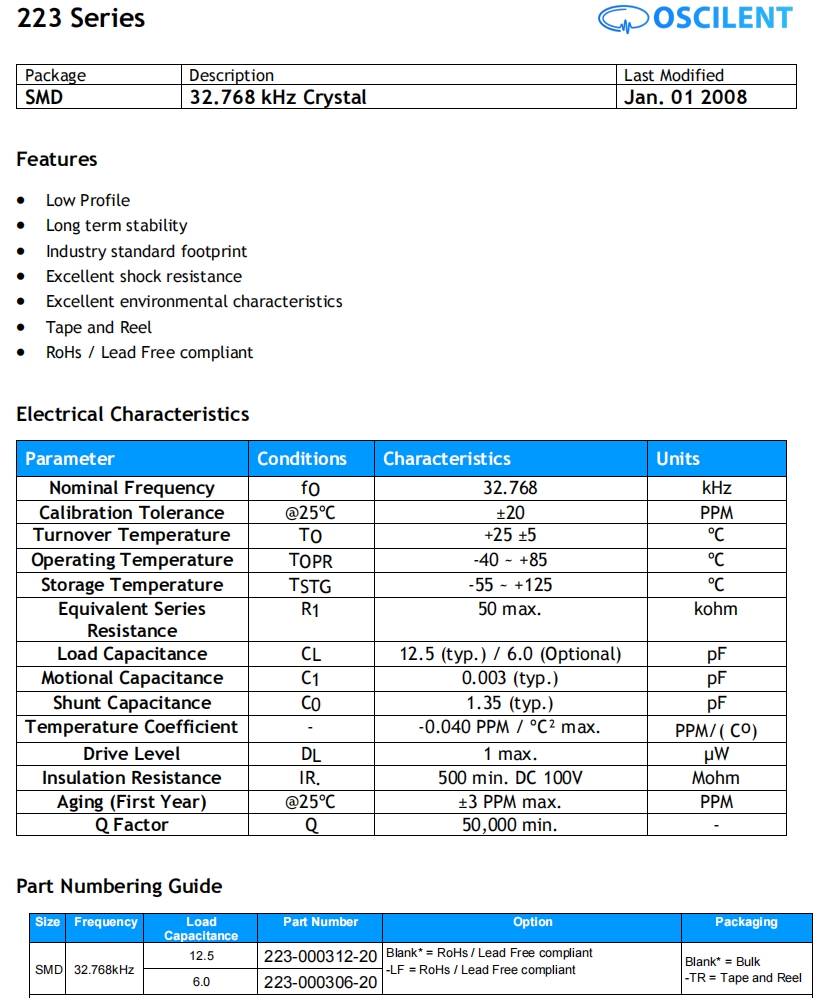

223-000306-20,8038mm,Oscilent時鐘晶振,223系列,32.768KHZ 參數表

Parameter	Conditions	Characteristics	Units
Nominal Frequency	fO	32.768	kHz
Calibration Tolerance	@25ºC	±20	PPM
Turnover Temperature	TO	+25 ±5	ºC
Operating Temperature	TOPR	-40 ~ +85	ºC
Storage Temperature	TSTG	-55 ~ +125	ºC
Equivalent Series Resistance	R1	50 max.	kohm
Load Capacitance	CL	12.5 (typ.) / 6.0 (Optional)	pF
Motional Capacitance	C1	0.003 (typ.)	pF
Shunt Capacitance	C0	1.35 (typ.)	pF
Temperature Coefficient	-	-0.040 PPM / ºC² max.	PPM/( Co)
Drive Level	DL	1 max.	µW
Insulation Resistance	IR.	500 min. DC 100V	Mohm
Aging (First Year)	@25ºC	±3 PPM max.	PPM
Q Factor	Q	50,000 min.	-
