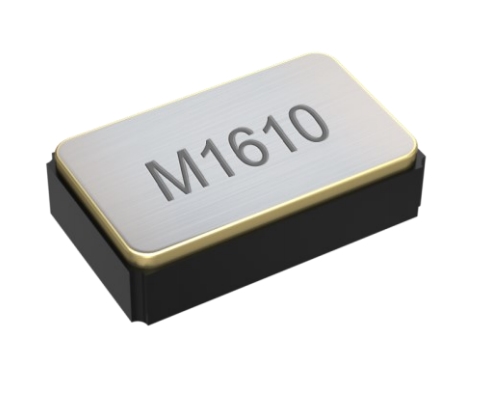

PETERMANN彼得曼晶振 6G網絡晶振 M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C)

頻率：32.768KHZ

尺寸：1.6x1.0mm

PETERMANN彼得曼晶振 6G網絡晶振 M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C)，尺寸1.6x1.0mm，頻率32.768KHZ，德國進口晶振，彼得曼高品質晶振，32.768K音叉晶體，PETERMANN無源晶體，進口無源晶振，兩腳貼片晶振，32.768KHZ貼片晶振，時鐘晶體，SMD晶體，石英晶體，貼片石英晶體，無源貼片晶振，無鉛環保晶振，超輕薄型晶體，音叉晶體，超小型晶振，6G網絡應用晶振，電話機專用晶振，娛樂設備晶振，時計產品晶振，可穿戴設備晶振，汽車晶振，兒童游戲機晶振，數碼相機專用晶振，通信產品晶振，高品質晶振，低損耗晶振，產品具有高質量低損耗的特點，SMD晶體產品還可被廣泛應用各個領域之中，尤其適合于娛樂設備，6G網絡，兒童游戲機，數碼相機，通信產品等領域。PETERMANN彼得曼晶振 6G網絡晶振 M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C).

訂購熱線：0755-29952551

LH-1

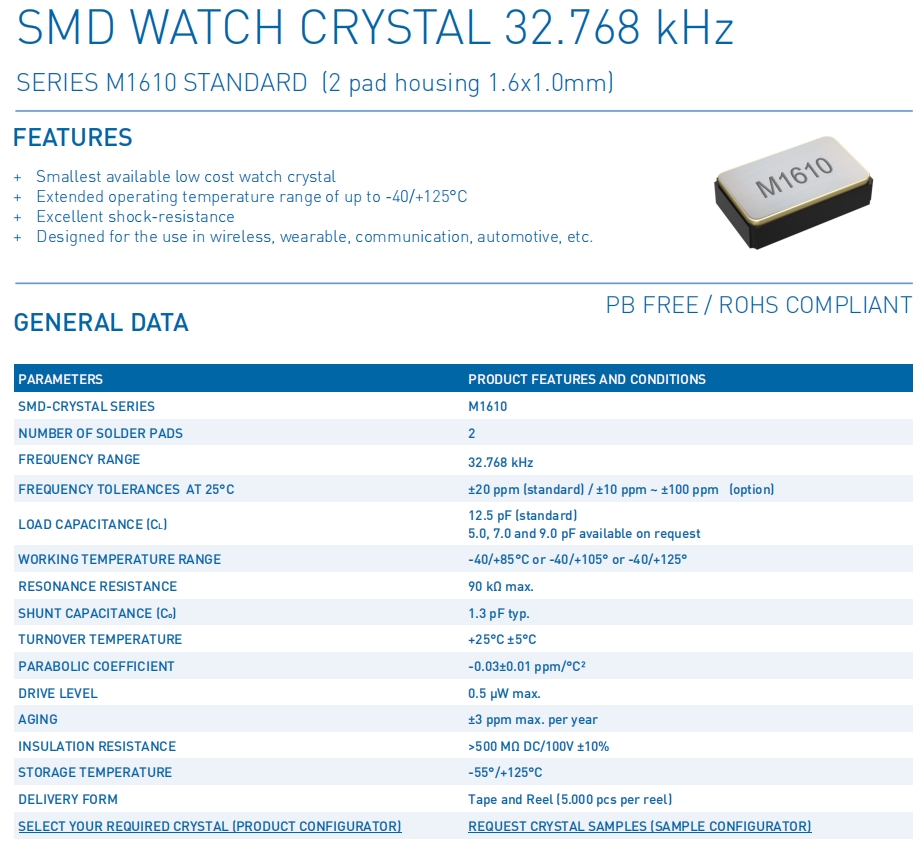

PETERMANN彼得曼晶振 6G網絡晶振 M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C) 參數表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES	M1610
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard) 5.0, 7.0 and 9.0 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C or -40/+105° or -40/+125°
RESONANCE RESISTANCE	90 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.03±0.01 ppm/°C²
DRIVE LEVEL	0.5 μW max.
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-55°/+125°C
DELIVERY FORM	Tape and Reel (5.000 pcs per reel)
