頻率：106.25MHZ
尺寸：7.0x5.0mm
535FB106M250DGR,Si535差分振蕩器,6G交換機晶振,Skyworks晶振，尺寸7.0x5.0mm，頻率106.25MHZ，電壓2.5V，輸出邏輯LVDS，LVDS差分振蕩器，石英差分晶振，差分貼片晶振，低電壓差分晶振，低損耗差分振蕩器，低抖動差分晶振，低相位差分振蕩器，高品質差分晶振，高性能差分振蕩器，有源差分晶振，光模塊差分晶振，通訊模塊差分振蕩器，測試測量差分晶振，網絡設備差分晶振，路由器差分晶振，交換機差分晶振，具有低抖動低相位的特點。
535FB106M250DGR,Si535差分振蕩器,6G交換機晶振,Skyworks晶振，尺寸7.0x5.0mm，頻率106.25MHZ，電壓2.5V，輸出邏輯LVDS，LVDS差分振蕩器，石英差分晶振，差分貼片晶振，低電壓差分晶振，低損耗差分振蕩器，低抖動差分晶振，低相位差分振蕩器，高品質差分晶振，高性能差分振蕩器，有源差分晶振，光模塊差分晶振，通訊模塊差分振蕩器，測試測量差分晶振，網絡設備差分晶振，路由器差分晶振，交換機差分晶振，具有低抖動低相位的特點。
535FB106M250DGR,Si535差分振蕩器,6G交換機晶振,Skyworks晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Supply Voltage1 | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL LVDS |
— — |
111 90 |
121 98 |
mA | ||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x V DD | — | — | V | |||||||||||||||||
| VIL | — | — | 0.5 | V | ||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 100 | — | 312.5 | MHz | ||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA = –40°C — +85°C | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| LVPECL Output Option1 | VO | Mid-level | V DD – 1.42 | — | V DD – 1.25 | V | ||||||||||||||||
| VOD | Swing (diff) | 1.1 | — | 1.9 | VPP | |||||||||||||||||
| VSE | Swing (Single-ended) | 0.55 | — | 0.95 | VPP | |||||||||||||||||
| LVDS Output Option2 | VO | Mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||
| VOD | Swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||
| Rise/Fall time (20/80%) | tR,t F | — | — | 350 | ps | |||||||||||||||||
| Symmetry (duty cycle) | SYM | Differential | 45 | — | 55 | % | ||||||||||||||||

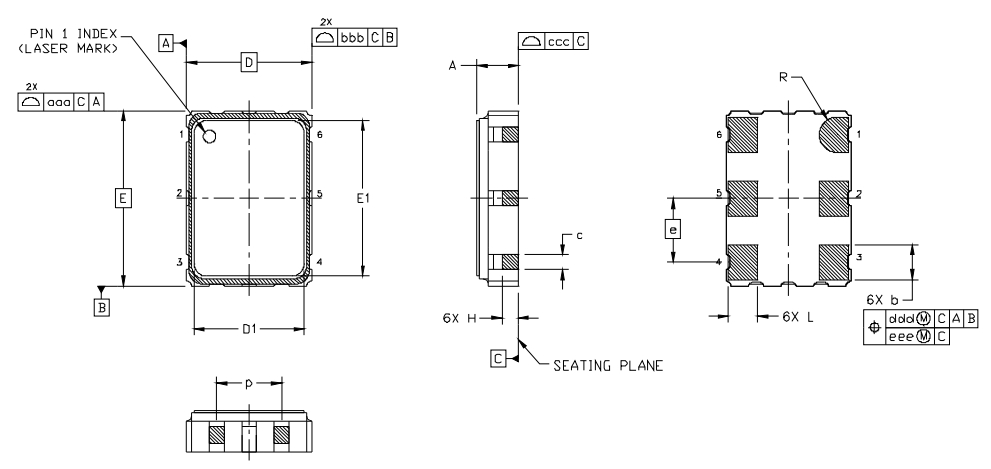

535FB106M250DGR,Si535差分振蕩器,6G交換機晶振,Skyworks晶振 尺寸圖

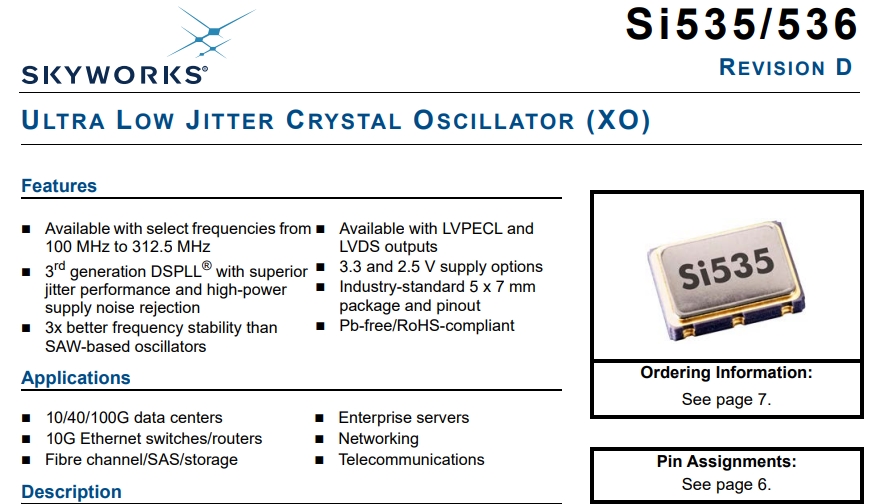

有源振蕩器產品特點:
可從中選擇頻率100MHz至312.5MHz
具有卓越性能的第三代DSPLL®抖動性能和高功率電源噪聲抑制
頻率穩定性比SAW振蕩器
LVPECL和LVDS輸出
3.3和2.5 V電源選項
行業標準5 x 7mm包裝和引腳
無鉛/符合RoHS
