當前位置：首頁 » 進口晶振 » 京瓷晶振 » CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1

prevnext

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1

頻率：16MHZ

尺寸：5.0x3.2mm

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1，尺寸5.0x3.2mm，頻率16MHZ，日本京瓷晶體，日本進口晶振，進口無源晶振，陶瓷諧振器，無源晶振，SMD晶振，無源陶瓷晶振，陶瓷晶振，5032mm貼片晶振，SMD無源晶體，兩腳貼片晶體，低成本晶振，低功耗晶振，低耗能晶振，低老化晶振，高性能晶振，高品質晶振，數字電子專用晶振，數字音頻晶振，汽車音響專用晶振，消費產品晶振，智能音響晶振，藍牙應用晶振，具有良好的可靠性能。

SMD crystal產品比較常用于數字電子，消費產品，汽車，音頻及配件，藍牙應用，智能音響等應用場景。CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1.

訂購熱線：0755-29952551

LH-1

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1 參數表

Item

Symbol

Specification

Units

Remarks

Frequency Range

f_nom

MHZ

Overtone Order

Fundamental

―

Load Capacitance

Frequency Tolerance

f_tol

±20

× 10-6

25°C±3°C

Motional Series Resistance

Table 1

ohm

Drive Level

Table 2

Operating Temp. Range

T_use

-10 to +70

°C

Storage Temp. Range

T_stg

-40 to +85

°C

Frequency Temp. Characteristics

f_tem

±30

× 10-6

Freq. deviation from the value at 25°C

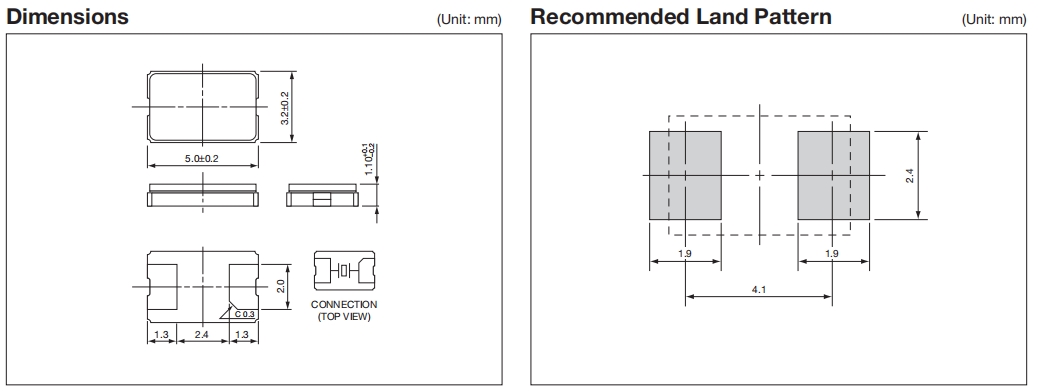

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1 尺寸圖

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1

產品特點:

小而低輪廓（T=最大1.1mm）

（5.0×3.2×1.0mm）

陶瓷面晶振回流兼容

原廠編碼	廠家	型號	頻率	工作溫度
CX3225GB54000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	54MHz	-40°C ~ 85°C
CX3225GB38400D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	38.4MHz	-40°C ~ 85°C
CX3225GB18432P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	18.432MHz	-40°C ~ 85°C
CX3225GB19200D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	19.2MHz	-40°C ~ 85°C
CX3225GB18432D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	18.432MHz	-40°C ~ 85°C
CX3225GB27000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	27MHz	-40°C ~ 85°C
CX3225GB48000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	48MHz	-40°C ~ 85°C
CX3225GB32000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	32MHz	-40°C ~ 85°C
CX3225GB30000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	30MHz	-40°C ~ 85°C
CX3225GB33333D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	33.333MHz	-40°C ~ 85°C
CX3225CA09843D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	9.843MHz	-40°C ~ 125°C
CX3225CA28636D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	28.63636MHz	-40°C ~ 125°C
CX3225CA27000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	27MHz	-40°C ~ 125°C
CX3225CA30000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	30MHz	-40°C ~ 125°C
CX3225GA20000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	20MHz	-40°C ~ 150°C
CX3225GA26000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	26MHz	-40°C ~ 150°C
CX3225GA30000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	30MHz	-40°C ~ 150°C
CX3225GA27000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	27MHz	-40°C ~ 150°C
CX3225GA13560D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	13.56MHz	-40°C ~ 150°C
CX3225GA32000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	32MHz	-40°C ~ 150°C
CX3225GA09843D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	9.843MHz	-40°C ~ 150°C
CX3225SB12000D0FLJCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	12MHz	-30°C ~ 85°C
CX2016DB16000D0WZRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	16MHz	-25°C ~ 75°C
CX5032GB16000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	16MHz	-40°C ~ 85°C
CX3225SB48000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	48MHz	-40°C ~ 85°C
CX5032GB08000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	8MHz	-40°C ~ 85°C
CX2016DB48000C0WLLA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	48MHz	-30°C ~ 85°C
CX3225SB38400D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	38.4MHz	-40°C ~ 85°C
CX2520DB38400D0FZGC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	38.4MHz	-25°C ~ 85°C
CX3225GB25000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	25MHz	-40°C ~ 85°C
CX5032GB10000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	10MHz	-40°C ~ 85°C
ST3215SB32768H5HSZA1	AVX Corp/Kyocera Corp	ST3215SB, Kyocera	32.768kHz	-40°C ~ 125°C
CX3225CA24000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	24MHz	-40°C ~ 125°C
CX2520DB32000D0FLJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	32MHz	-30°C ~ 85°C
CX5032GB14745H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	14.7456MHz	-10°C ~ 70°C
CX5032GB24576H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	24.576MHz	-10°C ~ 70°C
CX3225SB48000D0WPSC2	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	48MHz	-40°C ~ 85°C
CX2520SB13560D0GEJCC	AVX Corp/京瓷晶振	CX2520SB, Kyocera	13.56MHz	-10°C ~ 70°C
CX2520SB40000H0WZK06	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	40MHz	0°C ~ 85°C
CX2520SB40000H0DZF08	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	40MHz	-10°C ~ 85°C
CX3225GB14318P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	14.31818MHz	-40°C ~ 85°C
CX3225GB10000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	10MHz	-40°C ~ 85°C
CX3225GB20000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	20MHz	-40°C ~ 85°C
CX3225GB10000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	10MHz	-40°C ~ 85°C
CX3225GB48000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	48MHz	-40°C ~ 85°C
CX3225GB13560D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	13.56MHz	-40°C ~ 85°C
CX3225GB30000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	30MHz	-40°C ~ 85°C
CX2520DB48000D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	48MHz	-10°C ~ 70°C
CX2520DB24576D0GEJCC	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	24.576MHz	-10°C ~ 70°C
CX3225CA13560D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	13.56MHz	-40°C ~ 125°C
CX3225GB16000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	16MHz	-40°C ~ 85°C
ST3215SB32768E0HPWBB	AVX Corp/Kyocera Corp	ST3215SB, Kyocera	32.768kHz	-40°C ~ 85°C
ST2012SB32768E0HPWBB	AVX Corp/Kyocera Corp	ST2012SB, Kyocera	32.768kHz	-40°C ~ 85°C
CX2016DB16000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	16MHz	-40°C ~ 85°C
CX2520DB25000H0FLJC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	25MHz	-30°C ~ 85°C
CX3225SB13560D0FLJCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	13.56MHz	-30°C ~ 85°C
CX3225SB20000H0FLJCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	20MHz	-30°C ~ 85°C
CX3225SB32000H0FLJCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	32MHz	-30°C ~ 85°C
CX3225SB40000H0FLJCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	40MHz	-30°C ~ 85°C
CX3225GB32000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	32MHz	-10°C ~ 70°C
CX3225GB13000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	13MHz	-40°C ~ 85°C
CX3225GB27120P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	27.12MHz	-40°C ~ 85°C
CX3225SB12000D0FPNCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	12MHz	-40°C ~ 85°C
CX3225SB13560D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	13.56MHz	-40°C ~ 85°C
CX3225SB24000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	24MHz	-40°C ~ 85°C
CX3225SB32000D0FPLCC	AVX Corp/Kyocera Corp	CX3225SB, Kyocera	32MHz	-40°C ~ 85°C
CX2520DB12000C0WLSC1	AVX Corp/Kyocera Corp	CX2520DB, Kyocera	12MHz	-30°C ~ 85°C
ST3215SB32768B0HSZA1	AVX Corp/Kyocera Corp	ST3215SB, Kyocera	32.768kHz	-40°C ~ 125°C
ST3215SB32768E0HSZB1	AVX Corp/Kyocera Corp	ST3215SB, Kyocera	32.768kHz	-40°C ~ 125°C
ST3215SB32768B0HPWB3	AVX Corp/Kyocera Corp	ST3215SB, Kyocera	32.768kHz	-40°C ~ 85°C
CX3225CA16000H0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	16MHz	-40°C ~ 125°C
CX3225GA12000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	12MHz	-40°C ~ 150°C
CT2520DB26000C0FZZA1	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	26MHz	-25°C ~ 85°C
ST2012SB32768Z0HPWB4	AVX Corp/Kyocera Corp	ST2012SB, Kyocera	32.768kHz	-40°C ~ 85°C
CX5032GB08000H0HEQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	8MHz	-10°C ~ 70°C
CX1612DB48000D0FPJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	48MHz	-40°C ~ 85°C
