頻率：26MHZ
尺寸：3.2x2.5mm
E3FB石英諧振器,6G小型設備晶振,鴻星臺灣晶體,E3FB26E004203E，尺寸3.2x2.5mm，頻率26MHZ，Hosonic無源晶振，水晶振動子，石英晶體諧振器，無源石英晶振，無源晶振，石英貼片晶振，3225石英晶振，四腳無源晶體，輕薄型晶體，綠色環保晶振，智能家居晶振，藍牙模塊晶振，無線設備晶振，小型設備專用晶振，便攜式設備晶振，網絡設備晶振，消費電子專用晶振，平板電腦晶振，可穿戴設備晶振，具有良好的可靠性能以及穩定性能.
貼片晶振產品超級適合用于智能家居，藍牙模塊，無線設備，小型設備，便攜式設備，網絡設備，消費電子，平板電腦，可穿戴設備等領域。E3FB石英諧振器,6G小型設備晶振,鴻星臺灣晶體,E3FB26E004203E.
E3FB石英諧振器,6G小型設備晶振,鴻星臺灣晶體,E3FB26E004203E，尺寸3.2x2.5mm，頻率26MHZ，Hosonic無源晶振，水晶振動子，石英晶體諧振器，無源石英晶振，無源晶振，石英貼片晶振，3225石英晶振，四腳無源晶體，輕薄型晶體，綠色環保晶振，智能家居晶振，藍牙模塊晶振，無線設備晶振，小型設備專用晶振，便攜式設備晶振，網絡設備晶振，消費電子專用晶振，平板電腦晶振，可穿戴設備晶振，具有良好的可靠性能以及穩定性能.
貼片晶振產品超級適合用于智能家居，藍牙模塊，無線設備，小型設備，便攜式設備，網絡設備，消費電子，平板電腦，可穿戴設備等領域。E3FB石英諧振器,6G小型設備晶振,鴻星臺灣晶體,E3FB26E004203E.
E3FB石英諧振器,6G小型設備晶振,鴻星臺灣晶體,E3FB26E004203E 參數表
|
Item Frequency Range |
Type F0 |
E3FB | |||||||||||||||||||
| 26MHz | 160to 19.999MHz | 20 to 23.999MHz | 24 to 64.00MHz | ||||||||||||||||||
| Mode of Vibration | Fundamental | ||||||||||||||||||||
| Load Capacitance | CL | 6 to 20pF | |||||||||||||||||||
| Frequency Tolerance | ΔF/ F0 | ±10ppm, ±15ppm, ±30ppm(At 25℃) | |||||||||||||||||||
| Equivalent Series Resistance | ESR | 120Ω max. | 100Ω max. | 80Ω max. | 50Ω max. | ||||||||||||||||
| Temperature Stability | TC | ±10ppm, ±15ppm, ±30ppm(Refer to 25℃) | |||||||||||||||||||
| Operating Temperature Range | TOPR | -20~+70℃,-30~+85℃ Option | |||||||||||||||||||
| Storage Temperature Range | TSTG |
 -55~+125℃
|
|||||||||||||||||||
| Shunt Capacitance | C0 | 3pF max. | |||||||||||||||||||
| Insulator Resistance | IR | 500MΩ min. (At 100VDC) | |||||||||||||||||||
| Drive Level | DL | 50μW(100μW max.) | |||||||||||||||||||
| Aging | Fa | ±2ppm max. (At 25℃,First year) | |||||||||||||||||||
| Packing Unit |
3000pcs/reel |
||||||||||||||||||||

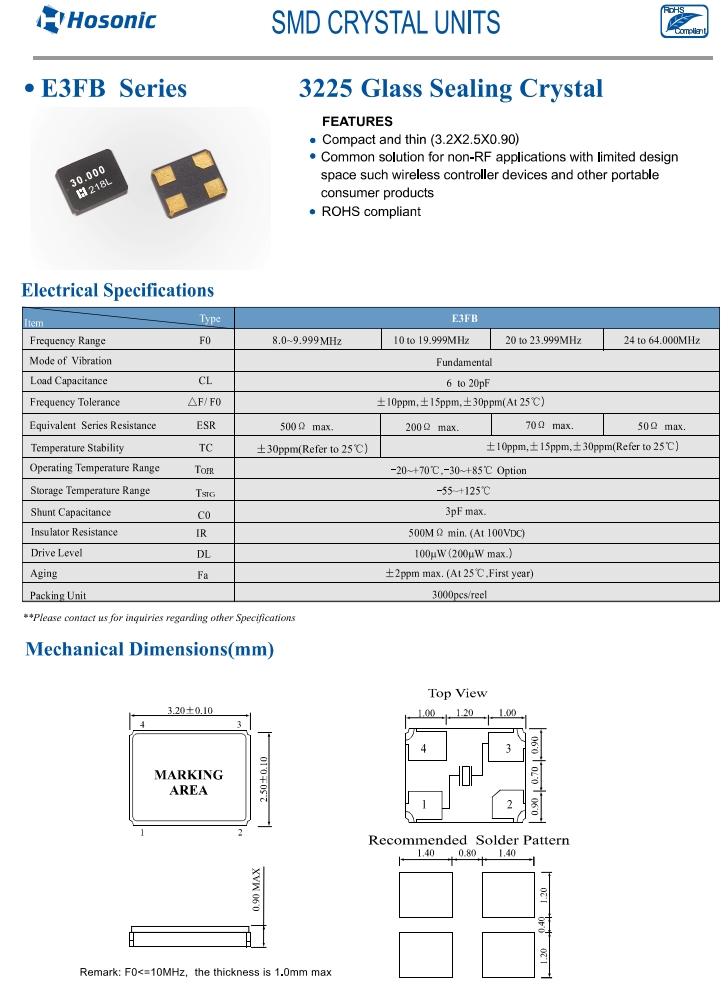

E3FB石英諧振器,6G小型設備晶振,鴻星臺灣晶體,E3FB26E004203E 尺寸圖
Quartz crystal產品特性：
緊湊型和薄型3.2*2.5*0.9mm
設計空間有限的非射頻應用的通用解決方案，
如無線控制器設備和其他便攜式消費產品
更多相關Hosonic鴻星晶振型號
| Mfr Part # | Supplier | Description | Series | Frequency | Frequency Stability穩定度 | Frequency Tolerance | Load Capacitance |
| E3SB25E00003FE | Hosonic鴻星晶振 | XTAL 3225 25MHZ, 18PF/15/15/-40+ | E3SB | 25 MHz | ±15ppm | ±15ppm | 18pF |
| E3SB24E004000E | Hosonic鴻星晶振 | XTAL 3225 24MHZ, 18PF/10/10/-30+ | E3SB | 24 MHz | ±10ppm | ±10ppm | 18pF |
| E3SB32E001500E | Hosonic鴻星晶振 | XTAL 3225 32MHZ, 12PF/10/10/-30+ | E3SB | 32 MHz | ±10ppm | ±10ppm | 12pF |
| E3SB37E0X0004E | Hosonic鴻星晶振 | XTAL 3225 37.4MHZ, 16PF | E3SB | 37.4 MHz | ±10ppm | ±10ppm | 16pF |
| E3SB25E001803E | Hosonic鴻星晶振 | XTAL 3225 25MHZ, 12PF | E3SB石英晶振 | 25 MHz | ±20ppm | ±20ppm | 12pF |
| E3SB16E0X000WE | Hosonic鴻星晶振 | XTAL 3225 16.3840MHZ, 10PF | E3SB | 16.384 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB27E0X000VE | Hosonic鴻星晶振 | XTAL 3225 27.12MHZ, 10PF | E3SB | 27.12 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB27E00000DE | Hosonic鴻星晶振 | XTAL 3225 27MHZ, 10PF | E3SB | 27 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB50E00000AE | Hosonic鴻星晶振 | XTAL 3225 50MHZ, 18PF | E3SB | 50 MHz | ±10ppm | ±10ppm | 18pF |
| E3SB26E000011E | Hosonic鴻星晶振 | XTAL 3225 26MHZ, 12PF | E3SB | 26 MHz | ±10ppm | ±10ppm | 12pF |
| E3SB8E0000003E | Hosonic鴻星晶振 | XTAL 3225 8MHZ, 10PF | E3SB | 8 MHz | ±30ppm | ±30ppm | 10pF |
| E3SB24E00000QE | Hosonic鴻星晶振 | XTAL 3225 24MHZ, 10PF | E3SB | 24 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB40E00010JE | Hosonic鴻星晶振 | XTAL 3225 40MHZ, 12PF | E3SB | 40 MHz | -12ppm, +20ppm | ±5ppm | 12pF |
| E3SB12E000022E | Hosonic鴻星晶振 | XTAL 3225 12MHZ, 18PF | E3SB | 12 MHz | ±30ppm | ±30ppm | 18pF |
| E3SB16E000028E | Hosonic鴻星晶振 | XTAL 3225 16MHZ, 10PF | E3SB | 16 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB40E00090DE | Hosonic鴻星晶振 | XTAL 3225 40MHZ, 12PF/10/20/-30+ | E3SB | 40 MHz | ±20ppm | ±10ppm | 12pF |
| E3SB38E0X0006E | Hosonic鴻星晶振 | XTAL 3225 38.4MHZ, 10PF/10/10/-3 | E3SB | 38.4 MHz | ±10ppm | ±10ppm | 10pF |
| E3SB40E00010KECBB8 | Hosonic鴻星晶振 | XTAL 3225 40MHZ, 6PF/7/15/-40+10 | E3SB | 40 MHz | ±15ppm | ±7ppm | 6pF |
| E3SB39E000006E | Hosonic鴻星晶振 | XTAL 3225 39MHZ, 10PF | E3SB | 39 MHz | ±15ppm | ±8ppm | 10pF |
| E3SB38E0X1806E | Hosonic鴻星晶振 | XTAL 3225 38.400MHZ, 10PF | E3SB | 38.4 MHz | ±20ppm | ±20ppm | 10pF |
| E3SB48E000801ECBB8 | Hosonic鴻星晶振 | XTAL 3225 48MHZ, 12PF/10/10/0+85 | E3SB | 48 MHz | ±10ppm | ±10ppm | 12pF |
| E3SB12E00004EE | Hosonic鴻星晶振 | XTAL 3225 12MHZ, 12PF | E3SB | 12 MHz | ±35ppm | ±8ppm | 12pF |
| E3SB14E0X0002E | Hosonic鴻星晶振 | XTAL 3225 14.7456MHZ, 12PF | E3SB | 14.7456 MHz | ±30ppm | ±30ppm | 12pF |
| E3SB10E000007E | Hosonic鴻星晶振 | XTAL 3225 10MHZ, 12PF | E3SB | 10 MHz | ±30ppm | ±30ppm | 12pF |
| E3SB25E00000DE | Hosonic鴻星晶振 | XTAL 3225 25MHZ, 10PF | E3SB | 25 MHz | ±10ppm | ±10ppm | 10pF |
| E3FB24E00000KE | Hosonic鴻星晶振 | XTAL 3225 24MHZ, 12PF | E3FB | 24 MHz | ±30ppm | ±30ppm | 12pF |
| E3SB48E00000TE | Hosonic鴻星晶振 | XTAL 3225 48MHZ, 18PF | E3SB | 48 MHz | ±30ppm | ±30ppm | 18pF |
| E3SB50E00002AE | Hosonic鴻星晶振 | XTAL 3225 50MHZ, 9PF | E3SB | 50 MHz | ±18ppm | ±7ppm | 9pF |
| E3SB24E000026E | Hosonic鴻星晶振 | E3SB | 24MHz | ±10ppm | 12pF | ||
| E3SB24E000022E | Hosonic鴻星晶振 | E3SB | 24MHz | ±20ppm | 12pF | ||
| E3SB12E000024E | Hosonic鴻星晶振 | E3SB | 12MHz | ±20ppm | 18pF | ||
| E3SB37E0X000HE | Hosonic鴻星晶振 | E3SB | 37.4MHz | ±10ppm | 12pF | ||
| E3SB25E00001HE | Hosonic鴻星晶振 | E3SB | 25MHz | ±15ppm | 16pF | ||
| E3SB26E00010CE | Hosonic鴻星晶振 | E3SB | 26.000MHZ | ±10ppm | 7.5pF | ||
| E3SB16E00000QE | Hosonic鴻星晶振 | E3SB | 16MHz | ±10ppm | 10pF | ||
| E3SB25E000028E | Hosonic鴻星晶振 | E3SB | 25MHz | ±30ppm | 18pF | ||
| E3SB32E00001ME | Hosonic鴻星晶振 | E3SB | 32MHz | 15ppm | 9pF | ||
| E3SB16E00000CE | Hosonic鴻星晶振 | E3SB | 16MHz | ±10ppm | 9pF | ||
| E3SB25E00002CE | Hosonic鴻星晶振 | E3SB | 25MHz | ±15ppm | 18pF | ||
| E3SB12E00003KE | Hosonic鴻星晶振 | E3SB | 12MHz | ±10ppm | 18pF | ||
| E3SB32E000020E | Hosonic鴻星晶振 | E3SB | 32MHz | ±10ppm | 9pF | ||
| E3SB8E000000CE | Hosonic鴻星晶振 | E3SB | 8MHz | ±20ppm | 20pF | ||
| E3SB16E000013E | Hosonic鴻星晶振 | E3SB | 16MHz | ±10ppm | 12pF | ||
| E3SB26E00004QE | Hosonic鴻星晶振 | E3SB | 26MHz | ±10ppm | 20pF | ||
| E3SB40E00001BE | Hosonic鴻星晶振 | E3SB | 40MHz | ±10ppm | 15pF | ||
| E3SB40E00004GE | Hosonic鴻星晶振 | E3SB | 40MHz | ±8ppm | 10pF | ||
| E3FB26E004203E | Hosonic鴻星晶振 | E3FB | 26MHz | ±10ppm | 7.3pF | ||
| E3SB40E00004TE | Hosonic鴻星晶振 | E3SB | 40MHz | ±10ppm | 9pF | ||
| E3SB40E00000DE | Hosonic鴻星晶振 | E3SB | 40MHz | ±10ppm | 12pF | ||
| E3SB40E000030E | Hosonic鴻星晶振 | E3SB | 40MHz | ±10ppm | 8pF | ||
| E3SB27E00002SE | Hosonic鴻星晶振 | E3SB | 27MHz | ±10ppm | 20pF | ||
| E3SB26E000036E | Hosonic鴻星晶振 | E3SB | 26MHz | ±20ppm | 20pF | ||
| E3SB48E00000CE | Hosonic鴻星晶振 | E3SB | 48MHz | ±10ppm | 10pF | ||
| E3SB54E000005E | Hosonic鴻星晶振 | E3SB | 54MHz | ±15ppm | 19pF | ||
| E3SB50E000001E | Hosonic鴻星晶振 | E3SB | 50MHz | ±10ppm | 10pF | ||
| E3SB12E00001SE | Hosonic鴻星晶振 | E3SB | 12MHz | ±30ppm | 16pF | ||
| E3SB32E000007E | Hosonic鴻星晶振 | E3SB | 32MHz | ±10ppm | 10pF | ||
| E3SB50E000004E | Hosonic鴻星晶振 | E3SB | 50MHz | ±10ppm | 12pF | ||
| E3SB16E00000FE | Hosonic鴻星晶振 | E3SB | 16MHz | ±10ppm | 9pF | ||
| E3SB50E00000UE | Hosonic鴻星晶振 | E3SB | 50MHz | ±20ppm | 15pF | ||
| E3SB16E00001DE | Hosonic鴻星晶振 | E3SB | 16MHz | ±10ppm | 16pF | ||
| E3SB48E00002JE | Hosonic鴻星晶振 | E3SB | 48MHz | ±10ppm | 16pF | ||
| E3SB27E0X000GE | Hosonic鴻星晶振 | E3SB | 27.12MHz | ±50ppm | 12pF | ||
| E3SB40E000013E | Hosonic鴻星晶振 | E3SB | 40MHz | ±10ppm | 20pF | ||
| E3SB26E000100E | Hosonic鴻星晶振 | E3SB | 26.000MHz | ±10ppm | 7.7pF | ||
| E3SB48E00000GE | Hosonic鴻星晶振 | E3SB | 48MHz | ±10ppm | 12pF | ||
| E3SB18E0X000SE | Hosonic鴻星晶振 | E3SB | 18.432MHz | ±10ppm | 10pF | ||
| E3SB11E0X0007E | Hosonic鴻星晶振 | E3SB | 11.0592MHz | ±10ppm | 18pF | ||
| E3SB12E00000CE | Hosonic鴻星晶振 | E3SB | 12.000MHz | ±10ppm | 9PF | ||
| E3SB26E000035E | Hosonic鴻星晶振 | E3SB | 26MHz | ±10ppm | 16pF | ||
| E3SB32E00000KE | Hosonic鴻星晶振 | E3SB | 32MHz | ±10ppm | 12pF | ||
| E3SB32E00001WE | Hosonic鴻星晶振 | E3SB | 32MHz | ±10ppm | 15pF | ||
| E3SB25E00003DE | Hosonic鴻星晶振 | E3SB | 25MHz | ±10ppm | 18pF | ||
| E3SB26E000006E | Hosonic鴻星晶振 | E3SB | 26.000MHz | ±10ppm | 8pF | ||
| E3SB27E00000SE | Hosonic鴻星晶振 | E3SB | 27MHz | ±10ppm | 12pF | ||
| E3SB40E000007E | Hosonic鴻星晶振 | E3SB | 40MHz | ±10ppm | 10pF | ||
| E3SB27E000800E | Hosonic鴻星晶振 | E3SB | 27.000MHz | ±10ppm | 12PF | ||
| E3SB48E00002GE | Hosonic鴻星晶振 | E3SB | 48MHz | ±10ppm | 12pF | ||
| E3SB12E000017E | Hosonic鴻星晶振 | E3SB | 12MHz | ±10ppm | 12pF | ||
| E3SB12E00003YE | Hosonic鴻星晶振 | E3SB | 12MHz | ±10ppm | 9pF | ||
| E3SB24E00004XE | Hosonic鴻星晶振 | E3SB | 24MHz | ±10ppm | 16pF | ||
| E3SB12E00004KE | Hosonic鴻星晶振 | E3SB | 12MHz | ±10ppm | 20pF | ||
| E3SB16E00001UE | Hosonic鴻星晶振 | E3SB | 16MHz | ±20ppm | 20pF | ||
| E3SB38E0X000BE | Hosonic鴻星晶振 | E3SB | 38.4MHz | ±10ppm | 12pF | ||
| E3SB12E00002LE | Hosonic鴻星晶振 | E3SB | 12.000MHz | ±10ppm | 20pF | ||
| E3SB12E00003ZE | Hosonic鴻星晶振 | E3SB | 12MHz | ±20ppm | 16pF | ||
| E3SB25E00000VE | Hosonic鴻星晶振 | E3SB | 25MHz | ±10ppm | 12pF | ||
| E3SB48E000011E | Hosonic鴻星晶振 | E3SB | 48MHz | ±10ppm | 20pF | ||
| E3SB27E0X0002E | Hosonic鴻星晶振 | E3SB | 27.12MHz | ±10ppm | 9pF | ||
| E3SB12E0X000TE | Hosonic鴻星晶振 | E3SB | 12.288MHz | ±10ppm | 15pF | ||
| E3SB12E000019E | Hosonic鴻星晶振 | E3SB | 12MHz | ±20ppm | 12pF | ||
| E3SB24E00003LE | Hosonic鴻星晶振 | E3SB | 24MHz | ±10ppm | 20pF | ||
| E3SB37E0X0000E | Hosonic鴻星晶振 | E3SB | 37.4MHz | ±10ppm | 10pF | ||
| E3SB26E00000CE | Hosonic鴻星晶振 | E3SB | 26MHz | ±10ppm | 9pF | ||
| E49B16E00000KE | 臺灣鴻星晶體 | HC-49SM | 16MHz | 16pF | |||
| E49B4E000000GE | Hosonic鴻星晶振 | HC-49SM | 4MHz | ±30ppm | 18pF | ||
| E49B7E00X000AE | Hosonic鴻星晶振 | HC-49SM | 7.3728MHz | ±30ppm | 18pF | ||
| ESB11.0592F18E33F | Hosonic鴻星晶振 | HC-49SM | 11.0592MHz | ±30ppm | 18pF | ||
| ESB12.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 12MHz | ±30ppm | 18pF | ||
| ESB14.7456F18E33F | Hosonic鴻星晶振 | HC-49SM | 14.7456MHz | ±30ppm | 18pF | ||
| ESB16.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 16MHz | ±30ppm | 18pF | ||
| ESB18.4320F18E33F | Hosonic鴻星晶振 | HC-49SM | 18.432MHz | ±30ppm | 18pF | ||
| ESB20.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 20MHz | ±30ppm | 18pF | ||
| ESB24.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 24MHz | ±30ppm | 18pF | ||
| ESB24.5760F18E33F | Hosonic鴻星晶振 | HC-49SM | 24.576MHz | ±30ppm | 18pF | ||
| ESB25.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 25MHz | ±30ppm | 18pF | ||
| ESB3.68640F18E33F | Hosonic鴻星晶振 | HC-49SM | 3.6864MHz | ±30ppm | 18pF | ||
| ESB8.00000F18E33F | Hosonic鴻星晶振 | HC-49SM | 8MHz | ±30ppm | 18pF | ||
| E3SB24E00002ZE | Hosonic鴻星晶振 | E3SB |
