頻率：32MHZ
尺寸：20.8×13.2×5.1mm

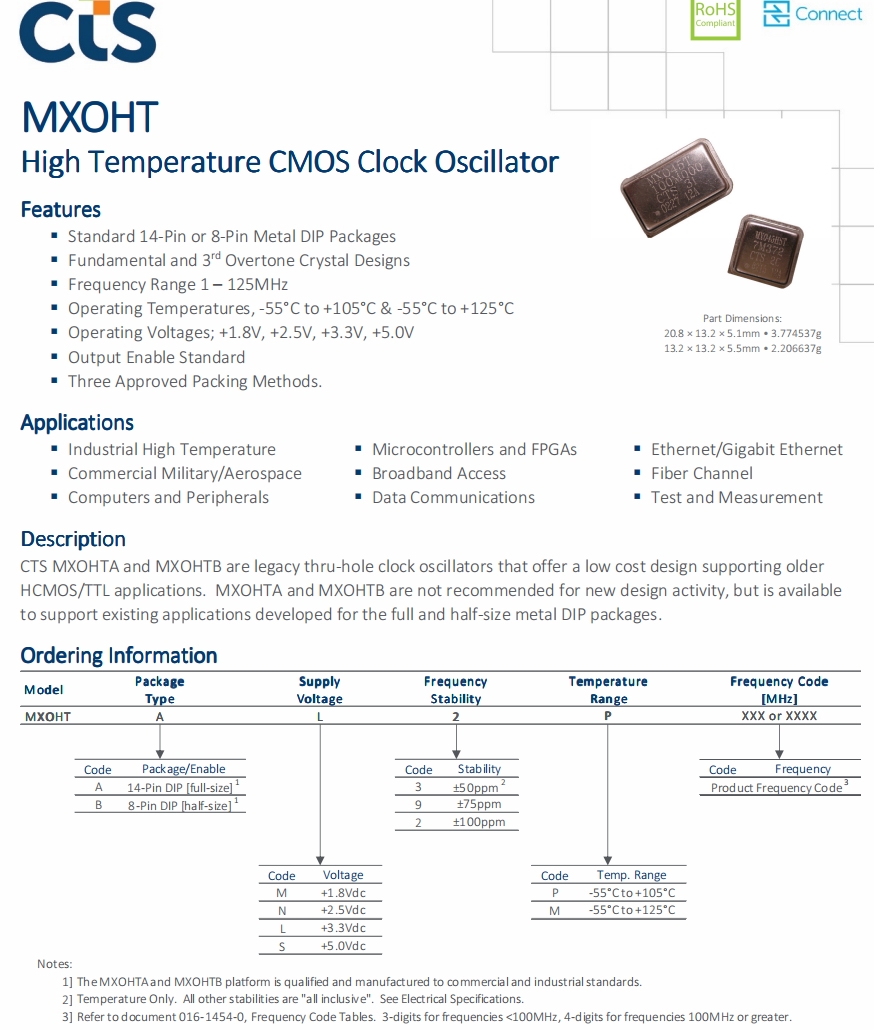

西迪斯晶振,MXOHTAL3M32M0000,6G無線通信晶振,長方型鐘振，尺寸為20.8×13.2×5.1mm,頻率為32MHZ，石英晶體振蕩器，有源振蕩器，XO振蕩器，OSC晶振，高質量晶振，低損耗晶振，低電壓振蕩器，航空航天晶振，數據通信晶振，CTS MXOHTA和MXOHTB是傳統的通孔時鐘振蕩器，提供低成本的設計，支持舊的HCMOS/TTL應用程序。不建議將MXOHTA和MXOHTB用于新的設計活動，但它們是可用的支持為全尺寸和半尺寸金屬DIP封裝開發的現有應用。
OSC晶振產品應用范圍：工業高溫，商業軍事/航空，計算機和外圍設備，微控制器和fpga，寬帶接入，數據通信，以太網/千兆以太網，光纖通道，測試與測量等領域.西迪斯晶振,MXOHTAL3M32M0000,6G無線通信晶振,長方型鐘振.
西迪斯晶振,MXOHTAL3M32M0000,6G無線通信晶振,長方型鐘振，尺寸為20.8×13.2×5.1mm,頻率為32MHZ，石英晶體振蕩器，有源振蕩器，XO振蕩器，OSC晶振，高質量晶振，低損耗晶振，低電壓振蕩器，航空航天晶振，數據通信晶振，CTS MXOHTA和MXOHTB是傳統的通孔時鐘振蕩器，提供低成本的設計，支持舊的HCMOS/TTL應用程序。不建議將MXOHTA和MXOHTB用于新的設計活動，但它們是可用的支持為全尺寸和半尺寸金屬DIP封裝開發的現有應用。
OSC晶振產品應用范圍：工業高溫，商業軍事/航空，計算機和外圍設備，微控制器和fpga，寬帶接入，數據通信，以太網/千兆以太網，光纖通道，測試與測量等領域.西迪斯晶振,MXOHTAL3M32M0000,6G無線通信晶振,長方型鐘振.
西迪斯晶振,MXOHTAL3M32M0000,6G無線通信晶振,長方型鐘振 參數表
| PARAMETER | SYMBOL | CO NDITIONS | MIN | TYP | MAX | UNIT | |||||||||||||||||||
| Maximum Supply Voltage | VCC | - | --0.5 | - | 7 .0 | V | |||||||||||||||||||
| Sup ply Voltage | VCC | ±10% |
1.62 2.25 2.97 4.50 |
1.8 2.5 3.3 5.0 |
1.98 2.75 3.63 5.50 |
V | |||||||||||||||||||
|
Typical @ Nominal Vcc, CL = 15 pF, TA = +25°C @ +1.8V, 1.0MHz to 50MHz @ +1 .8V, 50.1MHz to 125MHz |
- - |
10 20 |
15 mA 25 |
||||||||||||||||||||||
|
ICC Sup ply Current |
@ +2.5V, 1.0MHz to 50MHz @ +2 .5V, 50.1MHz to 125MHz |
- - |
12 25 |
15 mA 30 |
|||||||||||||||||||||
|
@ +3.3V, 1.0MHz to 50MHz @ +3 .3V, 50.1MHz to 125MHz |
- - |
15 30 |
20 mA 40 |
||||||||||||||||||||||
| @ +5.0V, 1.0MHz to 40MHz - 20 30 mA | |||||||||||||||||||||||||
| Output Load | CL | - | - | - | 15 | pF | |||||||||||||||||||
| Operating Temperature | TA | - |
-55 -55 |
+25 |
+105 +125 |
°C | |||||||||||||||||||
| Storage Temperature | TSTG | - | --55 | - | +125 | °C | |||||||||||||||||||
| Frequency Stability | |||||||||||||||||||||||||
| PARAMETER | SYMBOL | CO NDITIONS | MIN | TYP | MAX | UNIT | |||||||||||||||||||
| Frequency Range |
 O
|
+1 .8V, +2.5V, +3 .3V |
1.0 - 125 MHz |
||||||||||||||||||||||
| +5.0V | 1.0 - 40 | ||||||||||||||||||||||||
| Freq uency Stab ility [Note 1] Δf/fO | - | 50, 75 or 100 | ±ppm | ||||||||||||||||||||||
| Aging | Δf/f25 | First Year @ +25°C, nominal VCC | --5 | - | 5 | ppm | |||||||||||||||||||
| 1.] Inclusive of initial tolerance at time of shipment, changes in | supply voltage, load, temperature and | 1st year aging. | Except ±50ppm which is temperature only . | ||||||||||||||||||||||

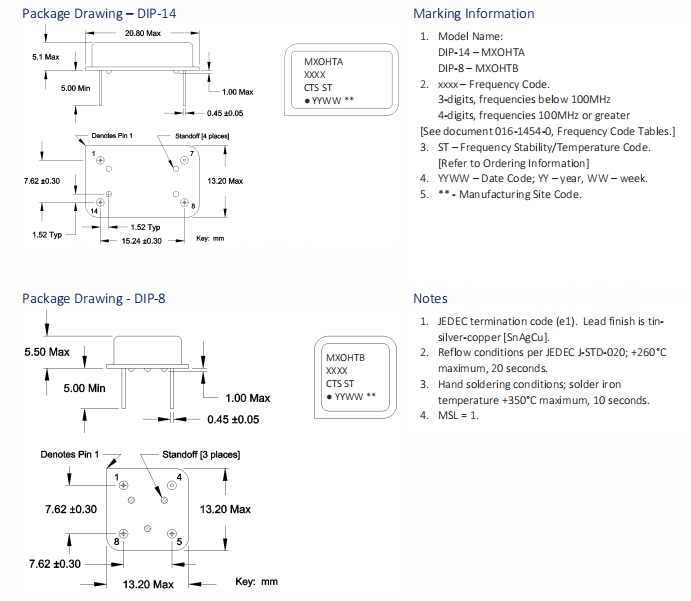

西迪斯晶振,MXOHTAL3M32M0000,6G無線通信晶振,長方型鐘振 尺寸圖
產品特性：
標準14針或8針金屬DIP封裝
基本和第三泛音晶體設計
頻率范圍1 - 125MHz
工作溫度，-55°C至+105°C和-55°C至+125°C
操作電壓;+ 1.8v， + 2.5v， + 3.3v， + 5.0v
輸出使能標準
三種批準的包裝方法。
