頻率：16.000~80.000MHz
尺寸：2.5x2.0mm
Wi-Fi應用晶振NX2520SA-20MHZ-STD-CSW-6/20MHz/2520mm/±10ppm，日本電波工業株式NDK晶振，進口晶振型號NX2520SA，編碼NX2520SA-20MHZ-STD-CSW-6，是一款小體積晶振尺寸2.5x2.0x0.50mm四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，頻率范圍：16MHz~80MHz，NX2520SA-16MHZ-STD-CSW-4具有超小型，輕薄型，優異的耐環境性能，耐熱和耐沖擊性，回流溫度曲線（可用于無鉛焊接)，應用于：電信設備，短程無線設備，消費設備功能，適用于短程無線設備如藍牙、Wi-Fi，以及參考時鐘源如智能手機和平板電腦。

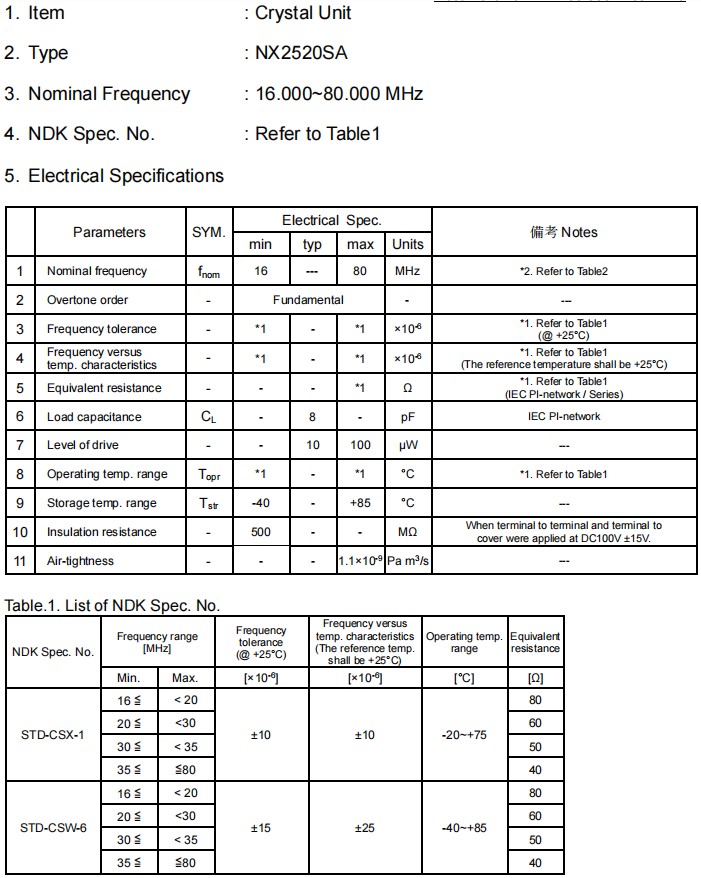

Wi-Fi應用晶振NX2520SA-20MHZ-STD-CSW-6/20MHz/2520mm/±10ppm，參數圖
Item
Model
NX2520SA
Standard
Standard
Optional
Nominal Frequency (MHz)
16 ≤ F ≤ 80
16 ≤ F ≤ 54
16 ≤ F ≤ 80
Overtone Order
Fundamental
Frequency Tolerance
±15 × 10−6
±10 × 10–6
±8×10-6 (16 ≤ F ≤ 40MHz)
±12×10-6 (40 < F ≤ 80MHz)
(25 ±3 °C)
Frequency versus Temperature
±25 × 10−6
±10 × 10–6
±10 × 10–6
Characteristics
(Temp extended case, *1)
(with reference to +25 °C)
Operating Temperature
−40 to +85
–20 to +75
–20 to +75
Range(°C)
(–40 to +85 °C Extended)
Storage Temperature Range (°C)
−40 to +85
−40 to +125
Equivalent Series Resistance
Refer to *2
Refer to *3
Refer to *2
Level of Drive (μW)
10 (Max. 100)
10 (Max. 200) *1
Load Capacitance (pF)
8
6 to 32
Frequency Aging (+25 °C)
---
Max. ±3×10-6 / year *1
Specifications Number
STD-CSW-6
STD-CSX-1
Refer to *4
Wi-Fi應用晶振NX2520SA-20MHZ-STD-CSW-6/20MHz/2520mm/±10ppm，尺寸圖

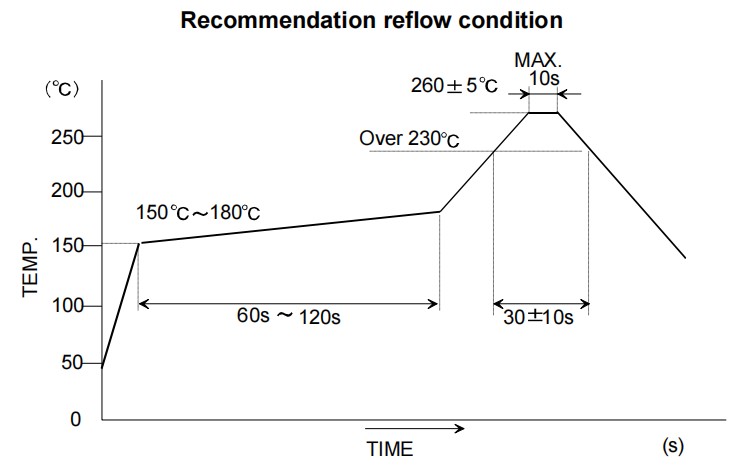

Wi-Fi應用晶振NX2520SA-20MHZ-STD-CSW-6/20MHz/2520mm/±10ppm，建議回流條件

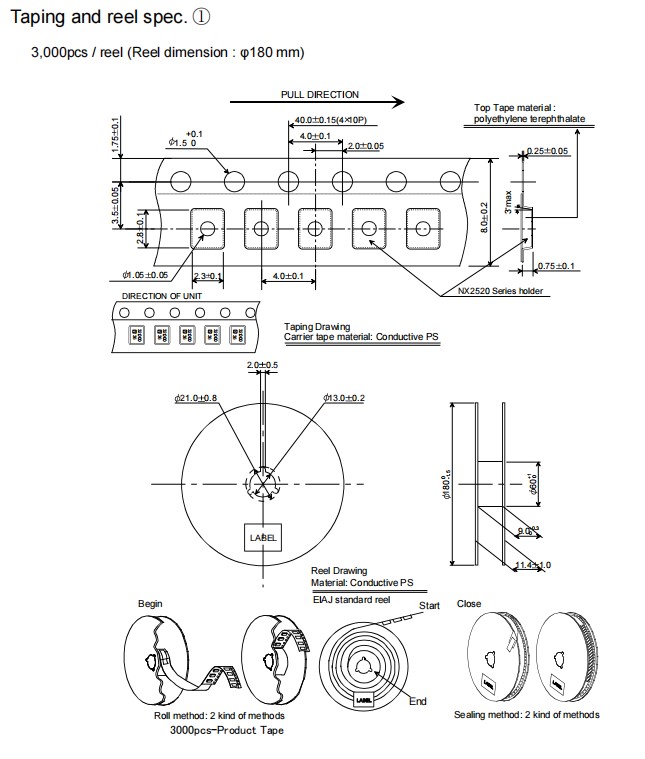

Wi-Fi應用晶振NX2520SA-20MHZ-STD-CSW-6/20MHz/2520mm/±10ppm，膠帶和卷軸規格
| 日本進口晶振 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 包裝/封裝 |
| NX2520SA-16MHZ-STD-CSW-4 | NDK晶振 | NX2520SA | 16MHz | ±15ppm | 4-SMD, No Lead |
| NX2520SA-16.000000MHZ | NDK晶振 | NX2520SA | 16MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-24.000000MHZ | NDK晶振 | NX2520SA | 24MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-24.000000MHZ-B8 | NDK晶振 | NX2520SA | 24MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-48.000000MHZ | NDK晶振 | NX2520SA | 48MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-16MHZ-EXS00A-CS05116 | NDK晶振 | NX2520SA | 16MHz | ±15ppm | 4-SMD, No Lead |
| NX2520SA-25.000M-STD-CSW-5 | NDK晶振 | NX2520SA | 25MHz | ±25ppm | 4-SMD, No Lead |
| NX2520SA-26MHZ-STD-CSX-1 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-26.000000MHZ | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-30.000000MHZ | NDK晶振 | NX2520SA | 30MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-24.576000MHZ | NDK晶振 | NX2520SA | 24.576MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-20.000000MHZ | NDK晶振 | NX2520SA | 20MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-32.000000MHZ | NDK晶振 | NX2520SA | 32MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-44.000000MHZ | NDK晶振 | NX2520SA | 44MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-26.000000MHZ-B9 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| EXS00A-CS05400 | NDK晶振 | NX2520SA | 19.2MHz | ±30ppm | 4-SMD, No Lead |
| NX2520SA-16MHZ-STD-CSW-5 | NDK晶振 | NX2520SA | 16MHz | ±25ppm | 4-SMD, No Lead |
| NX2520SA-16.000000MHZ-W1 | NDK晶振 | NX2520SA | 16MHz | ±20ppm | 4-SMD, No Lead |
| NX2520SA-40.000000MHZ | NDK晶振 | NX2520SA | 40MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-40.000000MHZ-W2 | NDK晶振 | NX2520SA | 40MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-40.000000MHZ-W3 | NDK晶振 | NX2520SA | 40MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-26MHZ-EXS00A-CS05497 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
