頻率：16.384MHZ
尺寸：3.2x2.5mm
NX3225SA電信設備晶振,NX3225SA-16.384MHz-STD-CQR-1,日本電波石英晶體，尺寸3.2x2.5mm，頻率16.384MHZ，日本NDK晶振，日本進口晶振，石英貼片晶振，石英晶體諧振器，石英振動子，SMD晶振，無源晶振，石英晶振，環保晶振，輕薄型晶體，四腳貼片晶振，3225貼片晶振，低功耗晶振，低損耗晶振，低耗能晶振，高質量晶振，高性能晶振，電信設備晶振，智能手機晶振，WIFI應用晶振，藍牙晶振，參考時鐘源專用晶振，平板電腦晶振，視聽設備晶振，無線設備晶振，小型設備晶振，具有良好的穩定性能。
貼片石英晶振產品超級適用于短距離無線設備，如藍牙、Wi-Fi、和智能手機的參考時鐘源和平板電腦，小型設備，視聽設備等領域.NX3225SA電信設備晶振,NX3225SA-16.384MHz-STD-CQR-1,日本電波石英晶體.
NX3225SA電信設備晶振,NX3225SA-16.384MHz-STD-CQR-1,日本電波石英晶體，尺寸3.2x2.5mm，頻率16.384MHZ，日本NDK晶振，日本進口晶振，石英貼片晶振，石英晶體諧振器，石英振動子，SMD晶振，無源晶振，石英晶振，環保晶振，輕薄型晶體，四腳貼片晶振，3225貼片晶振，低功耗晶振，低損耗晶振，低耗能晶振，高質量晶振，高性能晶振，電信設備晶振，智能手機晶振，WIFI應用晶振，藍牙晶振，參考時鐘源專用晶振，平板電腦晶振，視聽設備晶振，無線設備晶振，小型設備晶振，具有良好的穩定性能。
貼片石英晶振產品超級適用于短距離無線設備，如藍牙、Wi-Fi、和智能手機的參考時鐘源和平板電腦，小型設備，視聽設備等領域.NX3225SA電信設備晶振,NX3225SA-16.384MHz-STD-CQR-1,日本電波石英晶體.

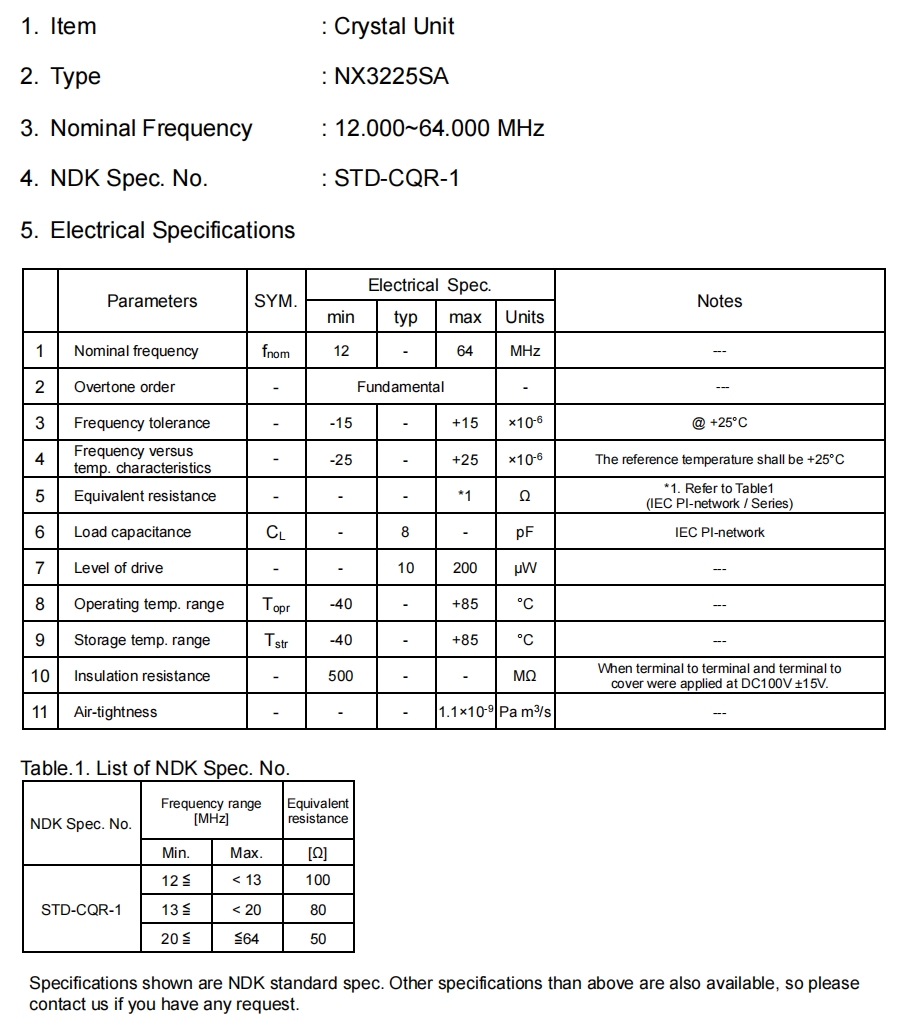

NX3225SA電信設備晶振,NX3225SA-16.384MHz-STD-CQR-1,日本電波石英晶體 參數表
| Parameters | SYM. | Electrical Spec. | Notes | ||||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||||
| Nominal frequency | fnom |
|
16.384 |
|
MHz | --- | |||||||||||||||||
| Overtone order | - | Fundamental | - | --- | |||||||||||||||||||
| Frequency tolerance | - | -15 | - | +15 | ×10-6 | @ +25°C | |||||||||||||||||
|
Frequency versus temp. characteristics |
- | -25 | - | +25 | ×10-6 | The reference temperature shall be +25°C | |||||||||||||||||
| Equivalent resistance | - | - | - | *1 |
Ω |
*1. Refer to Table1 (IEC PI-network / Series) |
|||||||||||||||||
| Load capacitance | CL | - | 8 | - | pF | IEC PI-network | |||||||||||||||||
| Level of drive | - | - | 10 | 200 | µW | --- | |||||||||||||||||
| Operating temp. range | Topr | -40 | - | +85 | °C | --- | |||||||||||||||||
| Storage temp. range | Tstr | -40 | - | +85 | °C | --- | |||||||||||||||||
| Insulation resistance | - | 500 | - | - | M Ω |
When terminal to terminal and terminal to cover were applied at DC100V ±15V. |
|||||||||||||||||
| Air-tightness | - | - | - | 1.1×10-9 | Pa m3/s | --- | |||||||||||||||||

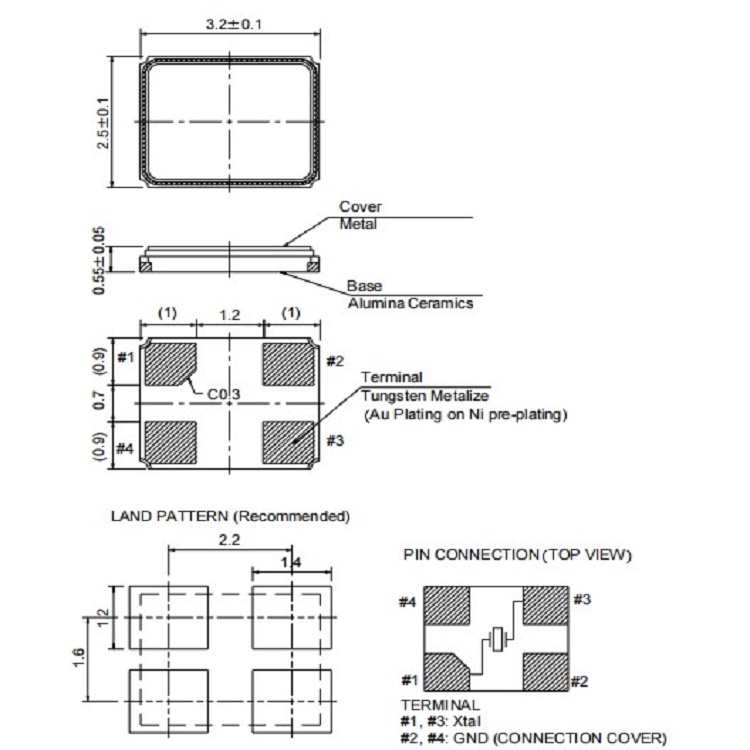

NX3225SA電信設備晶振,NX3225SA-16.384MHz-STD-CQR-1,日本電波石英晶體 尺寸圖
NX3225SA電信設備晶振,NX3225SA-16.384MHz-STD-CQR-1,日本電波石英晶體

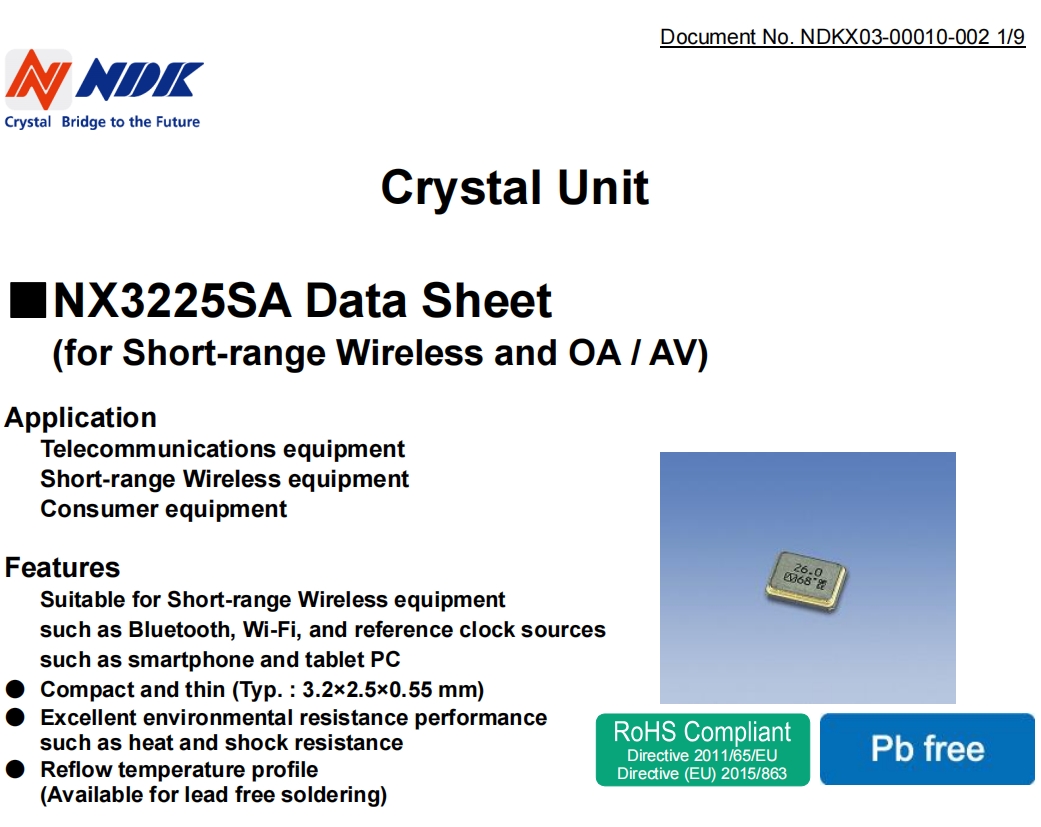

SMD crystal產品特點:
適用于短距離無線設備，如藍牙、Wi-Fi、和智能手機的參考時鐘源和平板電腦
緊湊型和薄(典型。:3.2×2.5×0.55毫米)
優異的耐熱等耐環境性能和耐震強度
回流溫度曲線(適用于無鉛焊接)
| 晶振廠家型號 | Nominal frequency[MHz] | Specification number | Package size(LxW)[mm] | Operating temperature rang[℃] | Storage temperature range[℃] |
| NX2520SA | 30 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 32 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 33 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 36 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 37.4 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 40 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 44 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 45 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 46 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 48 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 49.152 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 50 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 54 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 60 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 74.1 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 80 | STD-CSW-6 | 2.5×2.0 | -40~+85 | -40~+85 |
| NX2520SA | 16 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX2520SA | 19.2 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX2520SA | 24 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX2520SA | 26 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX2520SA | 30 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX2520SA | 32 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX2520SA | 38.4 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX2520SA | 52 | STD-CSX-1 | 2.5×2.0 | -20~+75 | -40~+85 |
| NX3225SA | 12 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 13 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 13.56 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 16 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 16.384 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 20 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 22.579 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 24 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 24.305 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 25 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 26 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 27 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 27.12 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 28.63636 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 32 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 40 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 48 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 50 | STD-CQR-1 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225SA | 12 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225SA | 16 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225SA | 20 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225SA | 24 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225SA | 25 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225SA | 40 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | -40~+125 |
| NX3225GA | 9.844 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 10 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 10.245 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 10.666 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 11.059 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 11.29 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 11.666 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 11.853 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 12 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 12.166 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 12.288 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 12.5 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 12.58 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 12.8 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.08 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.081 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.107 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.226 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.226 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.253 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.29 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.333 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.5 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.521 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.529 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.559 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 13.56 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 14.318 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 14.318 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 14.4 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 14.745 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 14.746 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
| NX3225GA | 15.36 | STD-CRG-2 | 3.2×2.5 | -40~+85 | -40~+85 |
