頻率：156.250000MHz
尺寸：7.0x5.0x1.6mm
MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振，日本進口晶振，EPSON愛普生晶振，型號：MG7050HAN，編碼為：X1M000431001000，頻率為：156.250000MHz，小體積晶振尺寸：7.0x5.0x1.6mm封裝，14墊腳貼片晶振，HCSL輸出差分晶振，差分晶體振蕩器，石英晶體振蕩器，有源晶振，石英晶振，SMD晶振。具有超小型，輕薄型，低相位噪聲，低抖動，低功耗，低電源電壓，高精度，高性能，高品質等特點。本產品是利用鋸波諧振器的基本振蕩的HCSL輸出的高頻振蕩器。這實現了頻率為100~200MHz的低抖動和低噪聲。適用于：移動通訊設備，服務器、導航儀，存儲，網絡，路由器，交換機、物聯網，無線網絡，藍牙模塊晶振，SATA，SAS，光纖通信，10G以太網等應用。

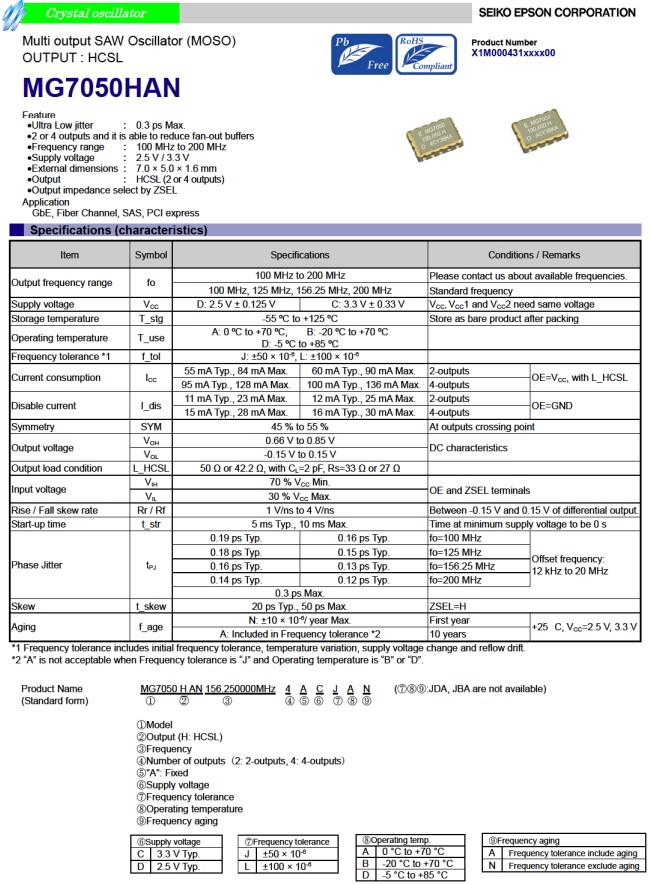

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振 參數表
| Item | Symbol | Specifications | Conditions / Remarks | ||
|---|---|---|---|---|---|
| Output frequency range | f0 | 156.250MHz | Please contact us about available frequencies. | ||
| 100MHz , 125MHz , 156.25MHz , 200MHz | Standard frequency | ||||
| Supply voltage | VCC | D : 2.5V ± 0.125V | C : 3.3V ± 0.33V | VCC1 and VCC2 need same voltage | |
| Storage temperature | T_stg | -55°C to +125°C | Store as bare product after packing | ||
| Operating temperature | T_use |
A : 0°C to +70°C B : -20°C to +70°C D : -5°C to +85°C |
|||
| Frequency tolerance *1 | f_tol |
J : ± 50 × 10-6 L : ±100 × 10-6 |
|||
| Current consumption | ICC |
55 mA Typ. 84 mA Max. |
60 mA Typ. 90 mA Max. |
2-outputs |
OE = VCC with L_HCSL |
|
95 mA Typ. 128 mA Max. |
100 mA Typ. 136 mA Max. |
4-outputs | |||
| Disable current | I_dis |
11 mA Typ. 23 mA Max. |
12 mA Typ. 25 mA Max. |
2-outputs | OE = GND |
|
15 mA Typ. 28 mA Max. |
16 mA Typ. 30 mA Max. |
4-outputs | |||
| Symmetry | SYM | 45%to 55% | At outputs crossing point | ||
| Output voltage | VOH | 0.66 V to 0.85 mV | DC characteristics | ||
| VOL | -0.15 V to 0.15 V | ||||
|
Output load condition |
L_HCSL |
50Ω or 42.2Ω, with CL = 2pF, Rs = 33Ω or 27Ω |
|||
| Input voltage | VIH | 70% VCC Min. | OE and ZSEL terminals | ||
| VIL | 30% VCC Max. | ||||
| Rise time / Fall time | Rr / Rf | 1 V/ns to 4 V/ns | Between -0.15 V and 0.15 V of differential output. | ||
| Start-up time | t_str | 5 ms Typ., 10 ms Max. | Time at minimum supply voltage to be 0 s | ||
| Phase Jitter | tPJ | 0.19 ps Typ. | 0.16 ps Typ. | f0 = 100MHz |
Offset frequency: 12kHz to 20MHz |
| 0.18 ps Typ. | 0.15 ps Typ. | f0 = 125MHz | |||
| 0.16 ps Typ. | 0.13 ps Typ. | f0 = 156.25MHz | |||
| 0.14 ps Typ. | 0.12 ps Typ. | f0 = 200MHz | |||
| 0.3 ps Max. | |||||
| Skew | t_skew | 20ps Typ. 50ps Max. | FSEL = H | ||
| Aging | f_aging | N : ± 10 × 10-6 / year Max. | First year |
+25°C, VCC = 2.5V , 3.3V |
|
| A : Included in Frequency tolerance *2 | 10 years | ||||
MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振 尺寸圖
MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振
產品特性：
超低抖動：0.3ps最大值。
2路或4路輸出，能夠減少扇出
緩沖區
頻率范圍：100MHz~200MHz
供電電壓：2.5V / 3.3V
外形尺寸：7.0×5.0×1.6mm
輸出：HCSL(2或4個輸出)差分晶振
輸出阻抗由ZSEL選擇
無鉛。
符合歐盟RoHS指令
| 晶振編碼 | 品牌 | 型號 | 頻率 | 尺寸 | 輸出方式 |
| X1M000091000100 | EPSON晶振 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000200 | EPSON晶振 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000300 | EPSON晶振 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000400 | EPSON晶振 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000500 | EPSON晶振 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000600 | EPSON晶振 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000700 | EPSON晶振 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000800 | EPSON晶振 | EG-2102CA | 156.250000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091000900 | 貼片晶振 | EG-2102CA | 312.500000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000091001000 | EPSON晶振 | EG-2102CA | 322.265625 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000101000200 | EPSON晶振 | EG-2121CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL |
| X1M000431000400 | EPSON晶振 | MG7050HAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL |
| X1M000431000600 | EPSON晶振 | MG7050HAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL |
| X1M000431000700 | EPSON晶振 | MG7050HAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL |
| X1M000431000800 | EPSON晶振 | MG7050HAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL |
| X1M000431000900 | EPSON晶振 | MG7050HAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL |
| X1M000431001000 | EPSON晶振 | MG7050HAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL |
| X1M000431001100 | EPSON晶振 | MG7050HAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL |
| X1M000461000100 | EPSON晶振 | XG5032HAN | 100.000000 MHz | 5.00 x 3.20 x 1.40 mm | HCSL |
| X1M000461000200 | EPSON晶振 | XG5032HAN | 100.000000 MHz | 5.00 x 3.20 x 1.40 mm | HCSL |
| X1M000461000300 | EPSON晶振 | XG5032HAN | 100.000000 MHz | 5.00 x 3.20 x 1.40 mm | HCSL |
| X1M000461000600 | EPSON晶振 | XG5032HAN | 100.000000 MHz | 5.00 x 3.20 x 1.40 mm | HCSL |
