當前位置：首頁 » 進口晶振 » Renesas瑞薩晶振 » 羅拉LORA模塊晶振,XPL316156.000000I,Renesas通訊設備晶振

prevnext

羅拉LORA模塊晶振,XPL316156.000000I,Renesas通訊設備晶振

頻率：156.000MHz

尺寸：3.2x2.5x1.07mm

羅拉LORA模塊晶振,XPL316156.000000I,Renesas通訊設備晶振，進口晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPL316156.000000I，頻率為：156.000MHz，小體積晶振尺寸：3.2x2.5x1.07mm封裝，8墊腳貼片晶振，LVDS輸出差分晶振，差分晶體振蕩器，3225石英晶振，有源晶振，SMD晶振，石英晶體振蕩器，差分晶振，電壓3.3V。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低相位噪聲，高精度，高性能，高品質等特點，能夠很容易地識別小信號。應用于：通訊設備，物聯網，無線網絡，藍牙模塊，路由器，交換機，以太網，儀器儀表、光纖通道，導航儀，醫療設備，智能家居等應用。

訂購熱線：0755-29952551

LH-1

XP系列是超低相位噪聲的基于石英的PLL振蕩器，支持大范圍的頻率和輸出接口類型。這些有源晶振設備被設計為操作在三種不同的電源供應，并可在三種包裝尺寸與幾種針形配置，以及三種操作溫度范圍。XP設備可以通過編程產生從15MHz到2100MHz的輸出頻率，分辨率低至1Hz的精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。

LH-2

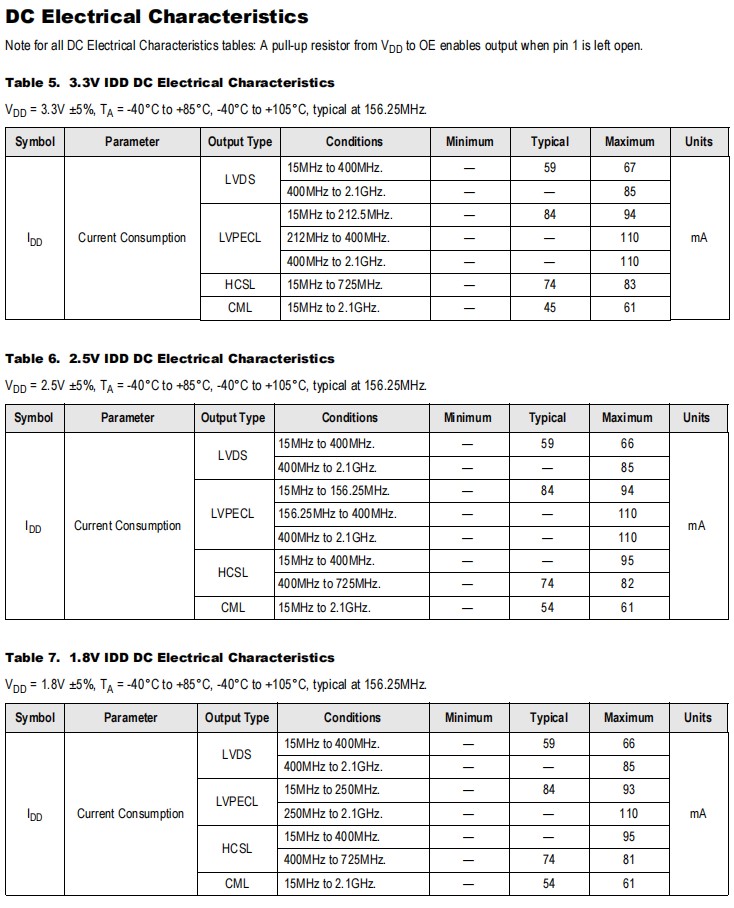

羅拉LORA模塊晶振,XPL316156.000000I,Renesas通訊設備晶振,參數表

Parameter	Test Condition		Minimum	Typical	Maximum	Units
Output Frequency Range	LVDS, LVPECL, CML.			—	156.000	MHz
Output Frequency Range	HCSL.		15	—	725
Frequency Stability	Temperature = -40°C to +85°C.		—	—	±25	ppm
Frequency Stability	Temperature = -40°C to +105°C.		—	—	±50	ppm
Frequency Tolerance (25°C)	Temperature = 25°C.		-15	±10	-15	ppm
Aging (1st year)	TA = 25°C.		—	—	±3	ppm
Aging (10 years)	TA = 25°C.		—	—	±10	ppm
Output Load	LVDS.	Differential.	—	100	—	Ω
	LVPECL.	VDD - 2.0V.	—	50	—
	HCSL.	To GND.	—	50	—
Start-up Time	Output valid time after VDD meets minimum specified level.		—	5	—	ms
Output Rise Time	LVDS.	20% – 80%, 156.25MHz	—	299	400	ps
	LVPECL.		—	287	400
	HCSL.		—	306	400
	CML		—	301	400
Output Fall Time	LVDS.	20% – 80%, 156.25MHz	—	279	400	ps
	LVPECL.		—	274	400
	HCSL.		—	284	400
	CML		—	279	400
Output Clock Duty Cycle	LVDS.	156.25MHz	48	—	52	%
	LVPECL.	156.25MHz	48	—	52
	HCSL.	156.25MHz	48	—	52
	CML	156.25MHz	48	—	52
Output Enable/Disable Time	—	—	—	1	—	ms

LH-3

羅拉LORA模塊晶振,XPL316156.000000I,Renesas通訊設備晶振,尺寸圖

羅拉LORA模塊晶振,XPL316156.000000I,Renesas通訊設備晶振

產品特點：

輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL 差分貼片晶振
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：

7.0×5.0×1.7mm

5.0×3.2×1.17mm

3.2×2.5×1.07mm
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm

石英晶體振蕩器	品牌	描述	系列	頻率	輸出
XPL536800.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	800 MHz	LVDS
XPL526200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	200 MHz	LVDS
XPL316133.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	133.333333 MHz	LVDS
XPL736156.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	156.25 MHz	LVDS
XPL536148.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	148.5 MHz	LVDS
XPL736148.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	148.5 MHz	LVDS
XPL336148.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	148.5 MHz	LVDS
XPL336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156.25 MHz	LVDS
XPL336125.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	125 MHz	LVDS
XPL516156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS
XPL736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	125 MHz	LVDS
XPL536148.163548I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	148.163548 MHz	LVDS
XPL736300.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	300 MHz	LVDS
XPL316156.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156 MHz	LVDS
XPL326200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	200 MHz	LVDS
XPL526312.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	312.5 MHz	LVDS
XPL736800.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	800 MHz	LVDS
XPL336200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	200 MHz	LVDS
XPL336644.531250I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	644.53125 MHz	LVDS
XPL326156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156.25 MHz	LVDS
XPL326500.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	500 MHz	LVDS
XPL336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	830 MHz	LVDS
XPL516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	625 MHz	LVDS
XPL316322.265625I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	322.265625 MHz	LVDS
XPL526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS
XPL536200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	200 MHz	LVDS
XPL326161.132800I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	161.1328 MHz	LVDS
XPL336160.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	160 MHz	LVDS
XPL336830.078125I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	830.078125 MHz	LVDS
XPL336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	312.5 MHz	LVDS
XPL516125.000000I	進口晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS
XPL726156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS
XPL726200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS
XPL736148.351648I	Renesas晶振	XTAL OSC XO 148.351648MHZ LVDS	XPL	148.351648 MHz	LVDS
XPL526125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS
XPL736165.000000I	Renesas晶振	XTAL OSC XO 165.0000MHZ LVDS SMD	XPL	165 MHz	LVDS
XPL736200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS
XPL726125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS
XPL726166.666000I	Renesas晶振	XTAL OSC XO 166.6660MHZ LVDS SMD	XPL	166.666 MHz	LVDS
XPL736322.265625I	Renesas晶振	XTAL OSC XO 322.265625MHZ LVDS	XPL	322.265625 MHz	LVDS
XPL536800.000000K	Renesas晶振	XTAL OSC XO 800.0000MHZ LVDS SMD	XPL	800 MHz	LVDS
XPL735156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS
XPL725200.000000K	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS
XPL735025.000000K	Renesas晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	XPL	25 MHz	LVDS
XPL735153.600000K	Renesas晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	XPL	153.6 MHz	LVDS
XPL735208.125000K	Renesas晶振	XTAL OSC XO 208.1250MHZ LVDS SMD	XPL	208.125 MHz	LVDS
XPL536250.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	250 MHz	LVDS
XPL536150.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	150 MHz	LVDS
XPL536125.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	125 MHz	LVDS
XPL536156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS
XPL316102.400000I	Renesas晶振	XTAL OSC XO 102.4000MHZ LVDS SMD	XPL	102.4 MHz	LVDS
XPL336150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	XPL	150 MHz	LVDS
XPL326125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS
XPL316625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVDS SMD	XPL	625 MHz	LVDS
XPL336333.330000I	Renesas晶振	XTAL OSC XO 333.3300MHZ LVDS SMD	XPL	333.33 MHz	LVDS
XPL716156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS
XPL726219.140625I	Renesas晶振	XTAL OSC XO 219.140625MHZ LVDS	XPL	219.140625 MHz	LVDS
XPL736320.000000I	Renesas晶振	XTAL OSC XO 320.0000MHZ LVDS SMD	XPL	320 MHz	LVDS
XPL726100.040000I	Renesas晶振	XTAL OSC XO 100.0400MHZ LVDS SMD	XPL	100.04 MHz	LVDS
XPL736400.000000I	Renesas晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	XPL	400 MHz	LVDS
XPL726150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	XPL	150 MHz	LVDS
XPL736161.132813I	Renesas晶振	XTAL OSC XO 161.132813MHZ LVDS	XPL	161.132813 MHz	LVDS
XPL716161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XPL	161.132812 MHz	LVDS
XPL726099.750000I	Renesas晶振	XTAL OSC XO 99.7500MHZ LVDS SMD	XPL	99.75 MHz	LVDS
XPL336625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVDS SMD	XPL	625 MHz	LVDS
XPL336148.425824I	Renesas晶振	XTAL OSC XO 148.425824MHZ LVDS	XPL	148.425824 MHz	LVDS
XPL32C912.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	912 MHz	LVDS
XPL336212.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	212.5 MHz	LVDS
XPL316156.250000I	Renesas晶振	CLCC 3.20X2.50X0.90 MM, 2.10MM P	XPL	156.25 MHz	LVDS
XPL536161.132812I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 2.54MM P	XPL	161.132812 MHz	LVDS
XPL336184.320000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	184.32 MHz	LVDS
XPL315212.500000K	Renesas晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	XPL	212.5 MHz	LVDS
XPL315442.708333K	Renesas晶振	XTAL OSC XO 442.708333MHZ LVDS	XPL	442.708333 MHz	LVDS
XPL315250.000000K	Renesas晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	XPL	250 MHz	LVDS
XPL315150.000000K	Renesas晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	XPL	150 MHz	LVDS
XPL315025.000000K	Renesas晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	XPL	25 MHz	LVDS
