美國Silicon晶振 531BC125M000DG 6G以太網晶振 Si531差分振蕩器，尺寸為7.00mmx5.00mm，頻率125MHZ，輸出邏輯LVDS，XO時鐘振蕩器（標準），電壓為3.3V，腳位6-SMD，LVDS輸出晶振，美國進口晶振，差分晶體振蕩器，石英晶體振蕩器，有源貼片晶振，超聲波差分晶振，網絡專用差分晶振，測試測量專用差分晶振，低功耗差分晶振，低抖動差分晶振，具有低抖動低電壓的特點，很適合用于超聲波，SDH，網絡，SD/HD視頻，測試和測量，時鐘和數據恢復，F(xiàn)PGA/ASIC時鐘生成等領域.

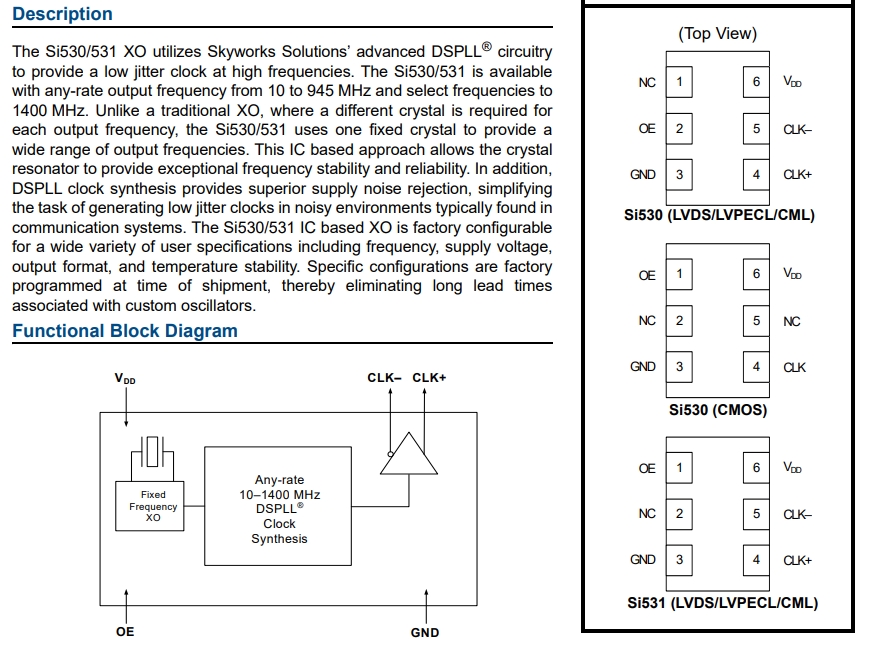

Si530/531 XO利用天空解決方案的先進DSPLL®電路提供一個高頻低抖動時鐘。Si530/531 OSC晶振可提供從10到945MHz的任意速率輸出頻率，并選擇頻率到1400MHz。與傳統的XO不同，每個輸出頻率都需要一個不同的晶體，而Si530/531使用一個固定的晶體來提供一個大范圍的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。美國Silicon晶振 531BC125M000DG 6G以太網晶振 Si531差分振蕩器.
美國Silicon晶振 531BC125M000DG 6G以太網晶振 Si531差分振蕩器，尺寸為7.00mmx5.00mm，頻率125MHZ，輸出邏輯LVDS，XO時鐘振蕩器（標準），電壓為3.3V，腳位6-SMD，LVDS輸出晶振，美國進口晶振，差分晶體振蕩器，石英晶體振蕩器，有源貼片晶振，超聲波差分晶振，網絡專用差分晶振，測試測量專用差分晶振，低功耗差分晶振，低抖動差分晶振，具有低抖動低電壓的特點，很適合用于超聲波，SDH，網絡，SD/HD視頻，測試和測量，時鐘和數據恢復，F(xiàn)PGA/ASIC時鐘生成等領域.
Si530/531 XO利用天空解決方案的先進DSPLL®電路提供一個高頻低抖動時鐘。Si530/531 OSC晶振可提供從10到945MHz的任意速率輸出頻率，并選擇頻率到1400MHz。與傳統的XO不同，每個輸出頻率都需要一個不同的晶體，而Si530/531使用一個固定的晶體來提供一個大范圍的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。美國Silicon晶振 531BC125M000DG 6G以太網晶振 Si531差分振蕩器.
美國Silicon晶振 531BC125M000DG 6G以太網晶振 Si531差分振蕩器 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
| Supply Voltage1 | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
111 99 90 81 |
121 108 98 88 |
mA | |||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | |||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x V DD | — | — | V | ||||||||||||||||||
| VIL | — | — | 0.5 | V | |||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | ºC | ||||||||||||||||||
| Table 2. CLK± Output Frequency Characteristics | |||||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 10 | — | 945 | MHz | |||||||||||||||||
| CMOS | 10 | — | 160 | MHz | |||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | |||||||||||||||||
| Temperature Stability1,3 |
–7 –20 –50 |
— |
+7 +20 +50 |
ppm | |||||||||||||||||||
| Aging | fa | Frequency drift over first year | — | — | ±3 | ppm | |||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | |||||||||||||||||||
| Table 3. CLK± Output Levels and Symmetry | |||||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
| LVPECL Output Option1 | VO | mid-level | V DD – 1.42 | — | V DD – 1.25 | V | |||||||||||||||||
| VOD | swing (diff) | 1.1 | — | 1.9 | VPP | ||||||||||||||||||
| VSE | swing (single-ended) | 0.55 | — | 0.95 | VPP | ||||||||||||||||||
| LVDS Output Option2 | VO | mid-level | 1.125 | 1.20 | 1.275 | V | |||||||||||||||||
| VOD | swing (diff) | 0.5 | 0.7 | 0.9 | VPP | ||||||||||||||||||
| CML Output Option2 | VO | 2.5/3.3 V option mid-level | V DD – 1.30 | V | |||||||||||||||||||
| 1.8 V option mid-level | V DD – 0.36 | V | |||||||||||||||||||||
| VOD | 2.5/3.3 V option swing (diff) | 1.10 | 1.50 | 1.90 | VPP | ||||||||||||||||||
| 1.8 V option swing (diff) | 0.35 | 0.425 | 0.50 | VPP | |||||||||||||||||||
| CMOS Output Option3 | V OH | I OH= 32 mA | 0.8 x V DD | V DD | V | ||||||||||||||||||
| VOL | I OL= 32 mA | 0.4 | V | ||||||||||||||||||||
| Rise/Fall time (20/80%) | tR,t F | LVPECL/LVDS/CML | 350 | ps | |||||||||||||||||||
| CMOS with CL= 15 pF | 1 | ns | |||||||||||||||||||||
| Symmetry (duty cycle) | SYM |
LVPECL: (diff) LVDS: CMOS: |
V DD – 1.3 V 1.25 V (diff) V DD/2 |
45 | 55 | % | |||||||||||||||||

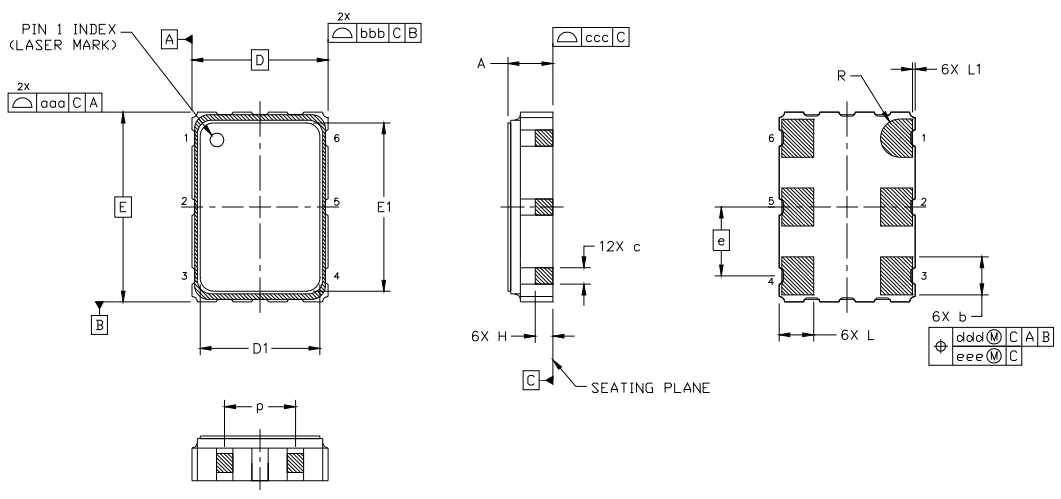

美國Silicon晶振 531BC125M000DG 6G以太網晶振 Si531差分振蕩器 尺寸圖

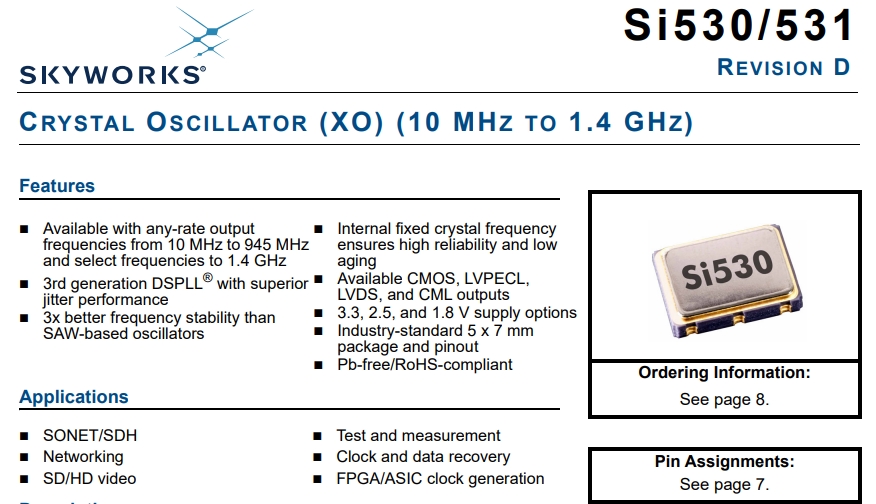

進口有源晶振產品特性：
可用于任何速率輸出
頻率從10兆赫到945兆赫
并選擇1.4 GHz的頻率
具有卓越性能的第三代DSPLL®
抖動性能
頻率穩定性比
SAW振蕩器
內部固定晶體頻率
確保高可靠性和低成本
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5 x 7毫米
包裝和引腳
無鉛/符合RoHS
更多相關Silicon晶振型號
| Manufacturer Part Number原廠代碼 | 晶振廠家 | Series型號 | Frequency 頻率 | Voltage - Supply電壓 | Frequency Stability頻率穩定度 |
| SI50122-A4-GM | Silicon Labs | SI50122-A4 | 100MHz | 2.25 V ~ 3.63 V | +100ppm |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 530FC125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±7ppm |
| 531BC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC250M000DG | Silicon Labs | Si531 | 250MHz | 3.3V | ±7ppm |
| 530AC622M080DG | Silicon Labs | Si530 | 622.08MHz | 3.3V | ±7ppm |
| 511FBA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm |
| 511BBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 510BBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm |
| 510ABA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm |
| 531BC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm |
| 530AC125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±7ppm |
| 531FB106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±20ppm |
| 531AC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC148M500DG | Silicon Labs | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 530AC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm |
| 530BC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm |
| 531BC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 530FC200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±7ppm |
| 536BB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm |
| 536FB156M250DG | Silicon Labs | Si536 | 156.25MHz | 2.5V | ±20ppm |
| 536AB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm |
| 510FBA125M000BAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm |
| 511BBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 510FBA100M000BAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm |
| 511FBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm |
| 510BBA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm |
| 511BBA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm |
| 510BBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm |
| 510BBA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm |
| 511FBA100M000AAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm |
| 511BBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 511FBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm |
| 510FBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm |
| 511BBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 511FBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm |
| 510BBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm |
| 511BBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 510FBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm |
| 511ABA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 510FBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm |
| 511BBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 510BBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm |
| 510ABA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm |
| 510DBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm |
| 531AC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm |
| 531FC125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±7ppm |
| 530AC156M250DG | Silicon晶振 | Si530 | 156.25MHz | 3.3V | ±7ppm |
| 531FC156M250DG | Silicon Labs | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531FC148M500DG | Silicon Labs | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531AC155M520DG | Silicon Labs | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 530AC155M520DG | Silicon Labs | Si530 | 155.52MHz | 3.3V | ±7ppm |
| 531BC155M520DG | Silicon Labs | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531FC200M000DG | Silicon Labs | Si531 | 200MHz | 2.5V | ±7ppm |
| 530BC148M500DG | Silicon Labs | Si530 | 148.5MHz | 3.3V | ±7ppm |
| 536EB156M250DG | Silicon Labs | Si536 | 156.25MHz | 2.5V | ±20ppm |
| 536BB125M000DG | Silicon Labs | Si536 | 125MHz | 3.3V | ±20ppm |
| 531AC622M080DG | Silicon Labs | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531AC312M500DG | Silicon Labs | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 510ABA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm |
| 510BBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm |
