當前位置：首頁 » 進口晶振 » Wi2wi晶振 » 威爾威四腳有源振蕩器,OC5微波通信晶振,OC5-T-26000X-O-D-B-1-R-X

prevnext

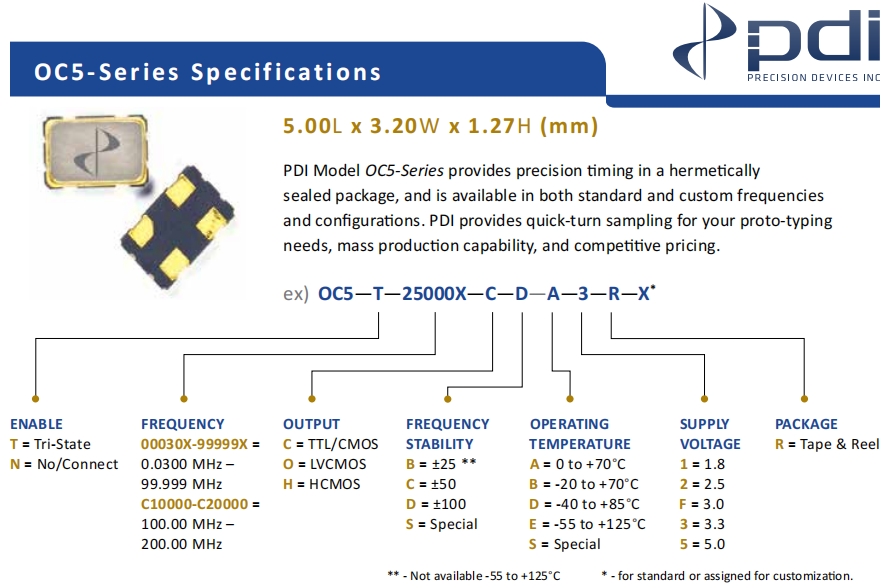

威爾威四腳有源振蕩器,OC5微波通信晶振,OC5-T-26000X-O-D-B-1-R-X

頻率：26MHZ

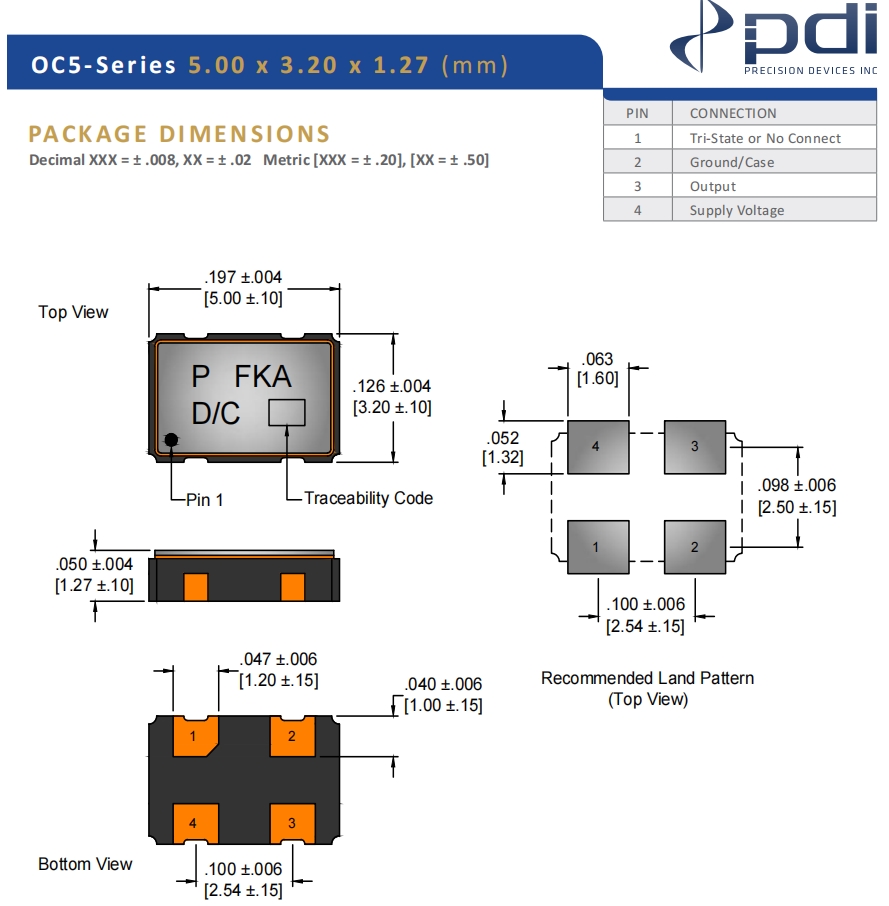

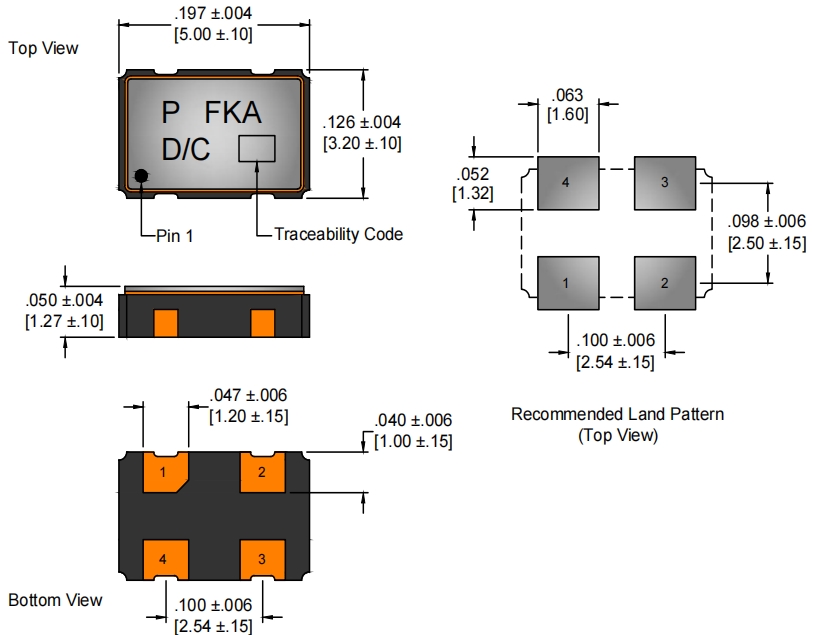

尺寸：5.0x3.2mm

威爾威四腳有源振蕩器,OC5微波通信晶振,OC5-T-26000X-O-D-B-1-R-X，尺寸5.0x3.2mm，頻率26MHZ，輸出邏輯LVCMOS，電壓1.8V，歐美有源晶振，美國Wi2wi振蕩器，5032mm有源晶振，OSC振蕩器，有源晶體振蕩器，石英有源振蕩器，石英晶體振蕩器，時鐘晶體振蕩器，低電壓有源晶振，低功耗有源晶振，低相位有源晶振，低相噪有源晶振，低耗能有源晶振，低抖動有源晶振，微波通信有源晶振，航空航天有源晶振，定位系統有源晶振，交換機有源晶振，測試測量有源晶振，具有低相位相噪的特點。

有源晶振產品比較常用于微波通信，航空航天，定位系統，交換機，測試測量等應用領域。威爾威四腳有源振蕩器,OC5微波通信晶振,OC5-T-26000X-O-D-B-1-R-X.

訂購熱線：0755-29952551

LH-1

有源晶振產品比較常用于微波通信，航空航天，定位系統，交換機，測試測量等應用領域。威爾威四腳有源振蕩器,OC5微波通信晶振,OC5-T-26000X-O-D-B-1-R-X. LH-2

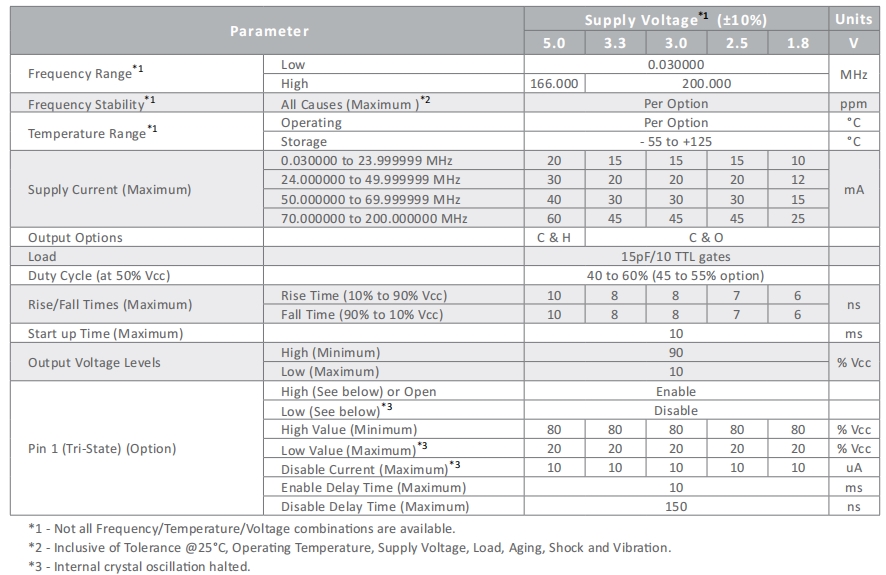

威爾威四腳有源振蕩器,OC5微波通信晶振,OC5-T-26000X-O-D-B-1-R-X 參數表

Parameter		Supply Voltage*1 ( ±10%)					Units
		5.0	3.3	3.0	2.5	1.8	V
Frequency Range*1	Low	0.030000					MHz
	High	166.000	200.000
Frequency Stability*1	All Causes (Maximum )*2	Per Option					ppm
Temperature Range*1	Operating	Per Option					°C
	Storage	- 55 to +125					°C
Supply Current (Maximum)	0.030000 to 23.999999 MHz	20	15	15	15	10	mA
	24.000000 to 49.999999 MHz	30	20	20	20	12
	50.000000 to 69.999999 MHz	40	30	30	30	15
	70.000000 to 200.000000 MHz	60	45	45	45	25
Output Options		C & H	C & O
Load		15pF/10 TTL gates
Duty Cycle (at 50% Vcc)		40 to 60% (45 to 55% option)
Rise/Fall Times (Maximum)	Rise Time (10% to 90% Vcc)	10	8	8	7	6	ns
	Fall Time (90% to 10% Vcc)	10	8	8	7	6
Start up Time (Maximum)		10					ms
Output Voltage Levels	High (Minimum)	90					% Vcc
	Low (Maximum)	10
Pin 1 (Tri-State) (Option)	High (See below) or Open	Enable
	Low (See below) *3	Disable
	High Value (Minimum)	80	80	80	80	80	% Vcc
	Low Value (Maximum)*3	20	20	20	20	20	% Vcc
	Disable Current (Maximum)*3	10	10	10	10	10	uA
	Enable Delay Time (Maximum)	10					ms
	Disable Delay Time (Maximum)	150					ns
