當前位置：首頁 » 進口晶振 » PETERMANN晶振 » 彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF

prevnext

彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF

頻率：32.768KHZ

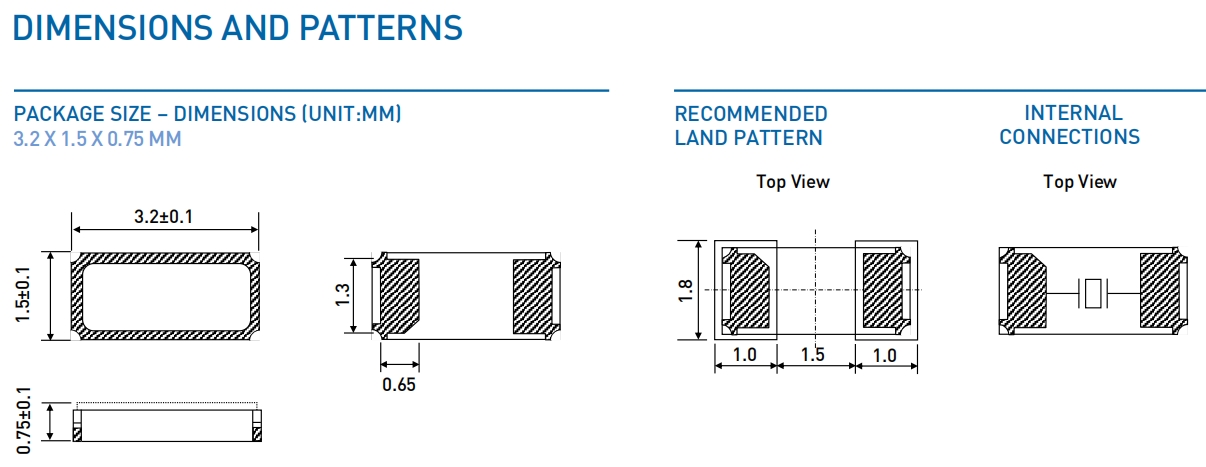

尺寸：3.2x1.5mm

彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF，尺寸3.2x1.5mm，頻率32.768KHZ，PETERMANN無源晶振，德國進口彼得曼貼片晶振，PETERMANN crystal，德國進口晶振，無源貼片晶振，3215系列SMD晶振，音叉晶體，32.768KHZ無源晶體，輕薄型晶振，小體積晶振，32.768KHZ時鐘晶體，無源晶振，兩腳貼片晶振，石英晶體，石英晶體諧振器，無線設備專用晶振，時鐘應用晶振，移動通信晶振，數碼相機專用晶振，兒童游戲機晶振，通信設備晶振，高性能晶振，低損耗晶振，低成本晶振，低耗能晶振，進口音叉晶振，具有輕薄型斯損耗的特點。

32.768KHZ產品比較常用于優秀的時鐘發生器的CPU，無線，移動通信，數碼相機，兒童游戲機，通信設備，儀器儀表，藍牙耳機等領域.彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF.

訂購熱線：0755-29952551

LH-1

LH-2

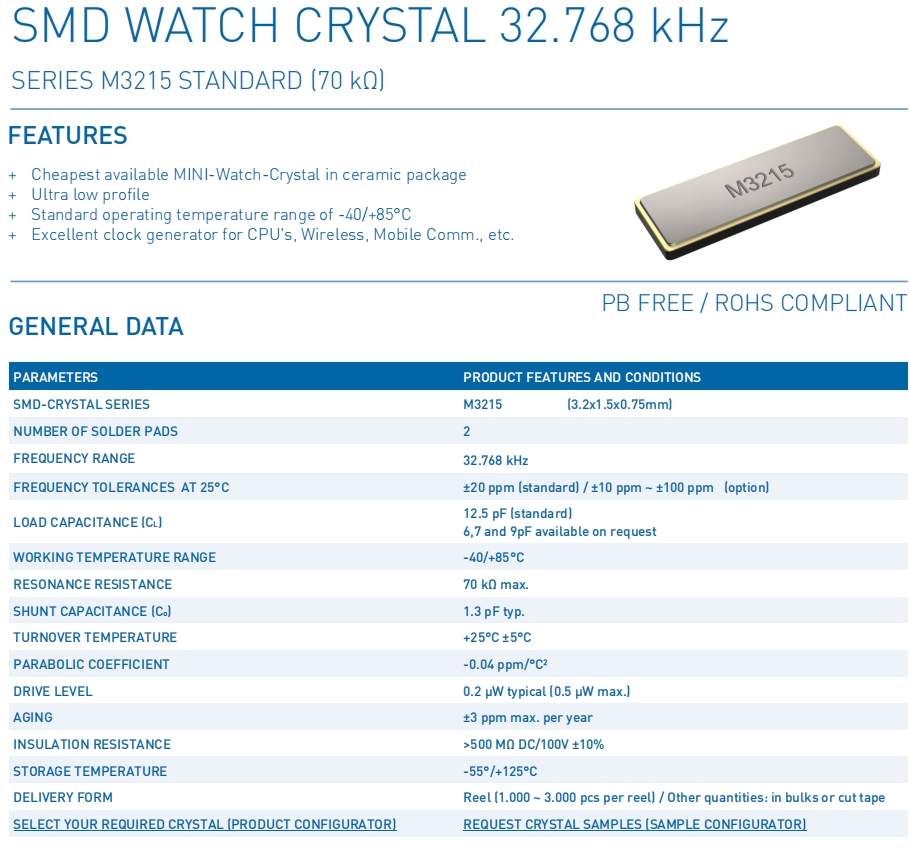

彼得曼音叉晶體,6G無線設備晶振,M3215-32.768kHz-±20ppm-12.5pF 參數表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES	M3215 (3.21.50.75mm)
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard) 6，7 and 9.0 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C
RESONANCE RESISTANCE	70 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.04 ppm/°C²
DRIVE LEVEL	0.2 µW typical (0.5 μW max.)
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-55°/+125°C
DELIVERY FORM	Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape
