頻率：100MHZ
尺寸：2.5*2.0mm
NDK差分振蕩器,6G收發器晶振,NP2520SB-100MHZ-NSC5301B，尺寸為2.5*2.0mm，頻率為100MHZ，支持輸出LVDS，LVDS差分輸出晶振，LVDS差分振蕩器，差分貼片晶振，日本電波差分晶振，差分晶體振蕩器，OSC差分石英晶振，有源差分晶振，低功耗差分晶振，低電壓差分振蕩器，低抖動差分晶振，通訊差分晶振，光通信差分晶振，光收發器差分晶振，6G模塊差分晶振，光通訊差分信號輸出LVDS，具備輕薄型，低電壓低相位的特征.
差分晶振產品應用領域十分廣泛，其中包含5G兼容設備，光通信、光收發器，WDM設備，通信設備，6G模塊,智能產品等領域。NDK差分振蕩器,6G收發器晶振,NP2520SB-100MHZ-NSC5301B.
NDK差分振蕩器,6G收發器晶振,NP2520SB-100MHZ-NSC5301B，尺寸為2.5*2.0mm，頻率為100MHZ，支持輸出LVDS，LVDS差分輸出晶振，LVDS差分振蕩器，差分貼片晶振，日本電波差分晶振，差分晶體振蕩器，OSC差分石英晶振，有源差分晶振，低功耗差分晶振，低電壓差分振蕩器，低抖動差分晶振，通訊差分晶振，光通信差分晶振，光收發器差分晶振，6G模塊差分晶振，光通訊差分信號輸出LVDS，具備輕薄型，低電壓低相位的特征.
差分晶振產品應用領域十分廣泛，其中包含5G兼容設備，光通信、光收發器，WDM設備，通信設備，6G模塊,智能產品等領域。NDK差分振蕩器,6G收發器晶振,NP2520SB-100MHZ-NSC5301B.
NDK差分振蕩器,6G收發器晶振,NP2520SB-100MHZ-NSC5301B 參數表
| Item | Ratings | Notes | ||||||||||||||||||||
| min | max | Units | ||||||||||||||||||||
| Supply Voltage | -0.3 | +4.0 | V | |||||||||||||||||||
| Input Voltage | -0.3 | VCC+0.3 | V | |||||||||||||||||||
| Storage Temperature Range | -55 | +125 | 。C | |||||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||||
| min | typ | max | Units | |||||||||||||||||||
| Nominal Frequency | fnom | 100 |
|
|
MHz | |||||||||||||||||
| Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | ||||||||||||||||||
| Current Consumption (Operating) | ICC | 40 | mA | at 25 。C | ||||||||||||||||||
| Current Consumption (Stand-by) | IST | 30 | μA | at 25 。C | ||||||||||||||||||
| Output Level | LVDS | |||||||||||||||||||||
| Load Capacitance | RL | 100 | Ω | Out-Complementary Out | ||||||||||||||||||
| Operating Temperature Range | Topr | -40 | +85 | 。C | ||||||||||||||||||
| Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | |||||||||||||||||
| Output Voltage | VOD | +0.247 | +0.454 | V | ||||||||||||||||||
| ΔVOD | 50 | mV | ||||||||||||||||||||
| VOS | +1.125 | +1.375 | V | |||||||||||||||||||
| ΔVOS | 50 | mV | ||||||||||||||||||||
| Rise Time(tr), Fall Time(tf) | tr/tf | 0.4 | ns | 20 % to 80 % Waveform | ||||||||||||||||||
| Symmetry | SYM | 45 | 55 | % | at 50 % waveform | |||||||||||||||||
| Start-up Time | tsu | 10 | ms | |||||||||||||||||||
| Phase Jitter | tpj | 100 | fs | *2 | ||||||||||||||||||
| Output Wave Form | - | Square wave | ||||||||||||||||||||
| Stand-by Function | #1 PAD input | #4, 5 PAD output | ||||||||||||||||||||
| H level (0.7 VCC to VCC) or open | Operating | |||||||||||||||||||||
| L level (0.3 VCC max) | High impedance | |||||||||||||||||||||

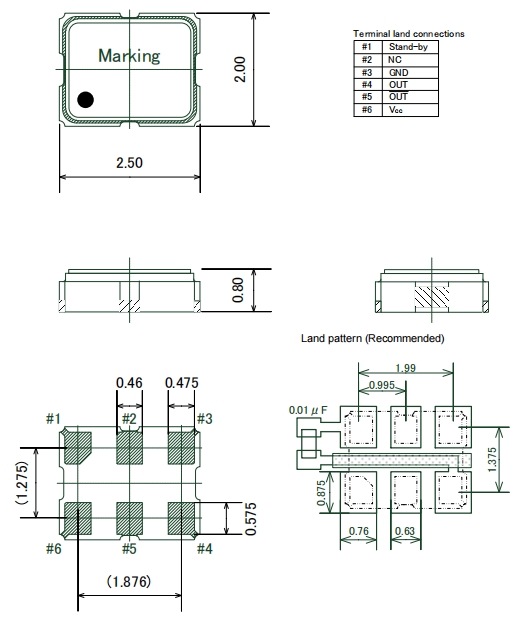

NDK差分振蕩器,6G收發器晶振,NP2520SB-100MHZ-NSC5301B 尺寸圖

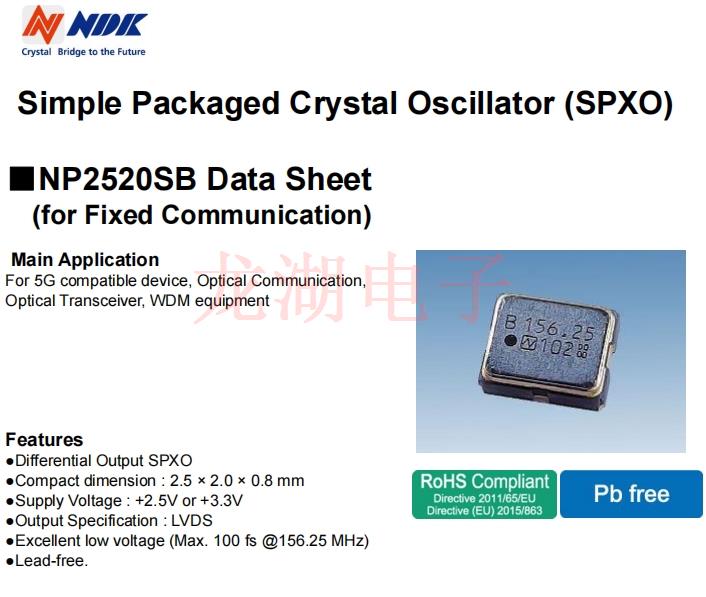

有源晶振產品特性：
更多相關日本NDK晶振型號
| Manufacturer Part Number | Manufacturer | Series | Frequency 頻率 | Voltage - Supply電壓 |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | 32.768kHz | 2.5V |
| NZ2520SB-2.750000MHZ | NDK晶振 | NZ2520SB | 2.75MHz | 3V |
| NZ2520SB-7.600000MHZ | NDK晶振 | NZ2520SB | 7.6MHz | 3V |
| NZ2520SB-5.000000MHZ | NDK晶振 | NZ2520SB | 5MHz | 3V |
| NZ2520SB-10.000000MHZ | NDK晶振 | NZ2520SB | 10MHz | 3V |
| NZ2520SB-19.200MHZ | NDK晶振 | NZ2520SB | 19.2MHz | 3V |
| NZ2520SB-20.000000MHZ | NDK晶振 | NZ2520SB | 20MHz | 3V |
| NZ2520SB-22.000000MHZ | NDK晶振 | NZ2520SB | 22MHz | 3V |
| NZ2520SB-25.600MHZ | NDK晶振 | NZ2520SB | 25.6MHz | 3V |
| NZ2520SB-38.900MHZ | NDK晶振 | NZ2520SB | 38.9MHz | 3V |
| NZ2520SB-40.000000MHZ | NDK晶振 | NZ2520SB | 40MHz | 3V |
| NZ2520SB-41.360MHZ | NDK晶振 | NZ2520SB | 41.36MHz | 3V |
| NZ2520SB-44.000000MHZ | NDK晶振 | NZ2520SB | 44MHz | 3V |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V |
| 2775W-2.176 | NDK晶振 | 2775W | 2.176MHz | 5V |
| 2765E-2.457600MHZ | NDK晶振 | 2765E | 2.4576MHz | 3.3V |
| 2765E-16.666700MHZ | NDK晶振 | 2765E | 16.6667MHz | 3.3V |
| 2765E-25.000000MHZ | NDK晶振 | 2765E | 25MHz | 3.3V |
| 2765E-33.333300MHZ | NDK晶振 | 2765E | 33.3333MHz | 3.3V |
| 2765E-40.000000MHZ | NDK晶振 | 2765E | 40MHz | 3.3V |
| 2765E-50.000000MHZ | NDK晶振 | 2765E | 50MHz | 3.3V |
| 2765E-66.000000MHZ | NDK晶振 | 2765E | 66MHz | 3.3V |
| 2765E-66.667000MHZ | NDK晶振 | 2765E | 66.667MHz | 3.3V |
| 2765E-80.000000MHZ | NDK晶振 | 2765E | 80MHz | 3.3V |
| NZ2520SA-2.750000MHZ | NDK晶振 | NZ2520SA | 2.75MHz | 3V |
| NZ2520SA-5.000000MHZ | NDK晶振 | NZ2520SA | 5MHz | 3V |
| NZ2520SA-7.600000MHZ | NDK晶振 | NZ2520SA | 7.6MHz | 3V |
| NZ2520SA-10.000000MHZ | NDK晶振 | NZ2520SA | 10MHz | 3V |
| NZ2520SA-20.000000MHZ | NDK晶振 | NZ2520SA | 20MHz | 3V |
| NZ2520SA-22.000000MHZ | NDK晶振 | NZ2520SA | 22MHz | 3V |
| NZ2520SA-40.000000MHZ | NDK晶振 | NZ2520SA | 40MHz | 3V |
| NZ2520SA-44.000000MHZ | NDK晶振 | NZ2520SA | 44MHz | 3V |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V |
| NZ2520SA-19.200MHZ | NDK晶振 | NZ2520SA | 19.2MHz | 3V |
| NZ2520SA-25.600MHZ | NDK晶振 | NZ2520SA | 25.6MHz | 3V |
| NZ2520SA-38.900MHZ | NDK晶振 | NZ2520SA | 38.9MHz | 3V |
| NZ2520SA-41.360MHZ | NDK晶振 | NZ2520SA | 41.36MHz | 3V |
