頻率：200MHZ
尺寸：3.2*2.5mm
NDK差分振蕩器,NP3225SB-200MHZ-NSC5238B汽車音響晶振,6G基站晶振，尺寸為3.2*2.5mm,頻率為200MHZ,輸出邏輯LVDS，LVDS輸出晶振，OSC差分振蕩器，LVDS有源振蕩器，進口差分晶振，低電壓差分晶振，低相位差分振蕩器，6G基站差分晶振，6G兼容設備差分晶振，以太網專用差分晶振，光收發器差分振蕩器，汽車電腦專用差分晶振，產品具備低電壓低功耗低相位的特點。
有源晶振產品非常適合用于6G兼容設備、基站、光網絡單元、SDH/SONET設備,低端路由器、以太網、光收發器,汽車音響、汽車電腦等領域。NDK差分振蕩器,NP3225SB-200MHZ-NSC5238B汽車音響晶振,6G基站晶振.
NDK差分振蕩器,NP3225SB-200MHZ-NSC5238B汽車音響晶振,6G基站晶振，尺寸為3.2*2.5mm,頻率為200MHZ,輸出邏輯LVDS，LVDS輸出晶振，OSC差分振蕩器，LVDS有源振蕩器，進口差分晶振，低電壓差分晶振，低相位差分振蕩器，6G基站差分晶振，6G兼容設備差分晶振，以太網專用差分晶振，光收發器差分振蕩器，汽車電腦專用差分晶振，產品具備低電壓低功耗低相位的特點。
有源晶振產品非常適合用于6G兼容設備、基站、光網絡單元、SDH/SONET設備,低端路由器、以太網、光收發器,汽車音響、汽車電腦等領域。NDK差分振蕩器,NP3225SB-200MHZ-NSC5238B汽車音響晶振,6G基站晶振.
NDK差分振蕩器,NP3225SB-200MHZ-NSC5238B汽車音響晶振,6G基站晶振 參數表
| Item | Ratings | Notes | ||||||||||||||||||||
| min | max | Units | ||||||||||||||||||||
| 1 | Supply Voltage | -0.3 | +4.0 | V | ||||||||||||||||||
| 2 | Input Voltage | -0.3 | VCC+0.3 | V | ||||||||||||||||||
| 3 | Storage Temperature Range | -55 | +125 | 。C | ||||||||||||||||||
| 6. Electrical Specifications | ||||||||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||||
| min | typ | max | Units | |||||||||||||||||||
| 1 | Nominal Frequency | fnom |
|
200 | MHz | See Table.2 | ||||||||||||||||
| 2 | Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | |||||||||||||||||
| 3 | Current Consumption (Operating) | ICC | 40 | mA | at 25 。C | |||||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | See Table.1 | μA | at 25 。C | |||||||||||||||||
| 5 | Output Level | - | LVDS | |||||||||||||||||||
| 6 | Load | RL | 100 | Ω | Out-Complementary Out | |||||||||||||||||
| 7 | Operating Temperature Range | Topr | [-40 to +85] to [-40 to +105] | 。C | See Table.1 | |||||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | ||||||||||||||||
| 9 | Differential Output Voltage | VOD | +0.247 | +0.454 | V | |||||||||||||||||
| ΔVOD | 50 | mV | ||||||||||||||||||||
| 10 | Offset Voltage | VOS | 1.125 | 1.375 | V | |||||||||||||||||
| ΔVOS | 50 | mV | ||||||||||||||||||||
| 11 | Rise Time(tr), Fall Time(tf) | tr/tf | 0.4 | ns | 20 % to 80 % waveform | |||||||||||||||||
| 12 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | ||||||||||||||||
| 13 | Start-up Time | tsu | 10 | ms | ||||||||||||||||||
| 14 | Phase Jitter | tpj | 1 | ps | *2 | |||||||||||||||||
| 15 | Output Wave Form | - | Square wave | |||||||||||||||||||
| 16 | Stand-by Function | #1 PAD input | #4, 5 PAD output | |||||||||||||||||||
| H level (0.7 VCC to VCC) or open | Operating | |||||||||||||||||||||
| L level (0.3 VCC max) | High impedance | |||||||||||||||||||||
|
Nominal Frequency |
Operating Temperature Range [。C] |
Current Consumption (Stand-by) |
Supply Voltage [V] | ||||||||||||||||||
| 2.5 V±5 % | 3.3 V±10 % | ||||||||||||||||||||
| 100 to 175 MHz | -40 to +85 | 15 μA MAX. | NSC5343A | NSC5343B | |||||||||||||||||
| -40 to +105 | 30 μA MAX. | NSC5344A | NSC5344B | ||||||||||||||||||
| 175 to 220 MHz | -40 to +85 | 15 μA MAX. | NSC5236A | NSC5236B | |||||||||||||||||
| -40 to +105 | 30 μA MAX. | NSC5238A | NSC5238B | ||||||||||||||||||

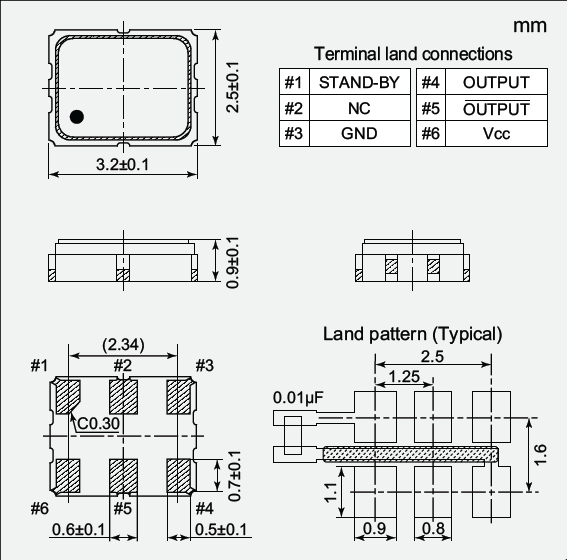

NDK差分振蕩器,NP3225SB-200MHZ-NSC5238B汽車音響晶振,6G基站晶振 尺寸圖
產品特性：
LVDS差分晶振輸出SPXO
緊湊:3.2 x 2.5 x 0.9 mm
電源電壓:+2.5V或+3.3V
低相位抖動:輸入。100fs @156.25 MHz
可以通過膠帶和紅外回流(無鉛)自動安裝
無鉛
符合AEC-Q200標準
