頻率：100MHZ
尺寸：5.0*3.2mm
NP5032SC-100MHZ-NSC5403C,6G光通訊晶振,日本電波HCSL振蕩器，尺寸5.0*3.2mm，頻率100MHZ，輸出邏輯HCSL，HCSL差分晶振，差分貼片晶振，HCSL差分晶體振蕩器，SPXO差分晶振，有源差分晶振，石英差分振蕩器，低電壓差分晶振，低相位差分晶振，低抖動差分晶振，高頻差分晶振，高性能差分晶振，高品質差分振蕩器，網絡設備差分晶振，儀器設備晶振，產品常用于SONET，SDH，與千兆以太網相關的設備等領域。
差分晶振是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL,HCSL具有低電平,低抖動,低相位,低功耗等特性。NP5032SC-100MHZ-NSC5403C,6G光通訊晶振,日本電波HCSL振蕩器.
NP5032SC-100MHZ-NSC5403C,6G光通訊晶振,日本電波HCSL振蕩器，尺寸5.0*3.2mm，頻率100MHZ，輸出邏輯HCSL，HCSL差分晶振，差分貼片晶振，HCSL差分晶體振蕩器，SPXO差分晶振，有源差分晶振，石英差分振蕩器，低電壓差分晶振，低相位差分晶振，低抖動差分晶振，高頻差分晶振，高性能差分晶振，高品質差分振蕩器，網絡設備差分晶振，儀器設備晶振，產品常用于SONET，SDH，與千兆以太網相關的設備等領域。
差分晶振是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL,HCSL具有低電平,低抖動,低相位,低功耗等特性。NP5032SC-100MHZ-NSC5403C,6G光通訊晶振,日本電波HCSL振蕩器.
NP5032SC-100MHZ-NSC5403C,6G光通訊晶振,日本電波HCSL振蕩器 參數表
| Item | Ratings | Notes | ||||||||||||||||||
| min | max | Units | ||||||||||||||||||
| 1 | Supply Voltage | -0.3 | +4.0 | V | ||||||||||||||||
| 2 | Input Voltage | -0.3 | VCC+0.3 | V | ||||||||||||||||
| 3 | Storage Temperature Range | -55 | +125 | 。C | ||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||
| min | typ | max | Units | |||||||||||||||||
| 1 | Nominal Frequency | fnom |
|
100 |
|
MHz | See Table.2 | |||||||||||||
| 2 | Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | |||||||||||||||
| 3 | Current Consumption (Operating) | ICC | 60 | mA | at 25 。C | |||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | 30 | μA | at 25 。C | |||||||||||||||
| 5 | Output Level | - | HCSL | |||||||||||||||||
| 6 | Load | RL | 50 | Ω | ||||||||||||||||
| 7 | Operating Temperature Range | Topr | [0 to +70] to [-40 to +85] | 。C | See Table.1 | |||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | ± 25 to ± 100 | ppm | See Table.1, *1 | |||||||||||||||
| 9 | Output Voltage | VOL | -0.15 | +0.15 | V | |||||||||||||||
| VOH | +0.66 | +0.85 | V | |||||||||||||||||
| 10 | Rise Time(tr), Fall Time(tf) | tr/tf | 0.7 | ns | 0.175 to 0.525 V | |||||||||||||||
| 11 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | ||||||||||||||
| 12 | Phase Jitter | tpj | 1 | ps | *2 | |||||||||||||||
| 13 | Output Wave Form | - | Square wave | |||||||||||||||||
| 14 | Stand-by Function | #1 PAD input | #4, 5 PAD output | |||||||||||||||||
| H level (0.7 VCC to VCC) or open | Operating | |||||||||||||||||||
| L level (0.3 VCC max) | High impedance | |||||||||||||||||||

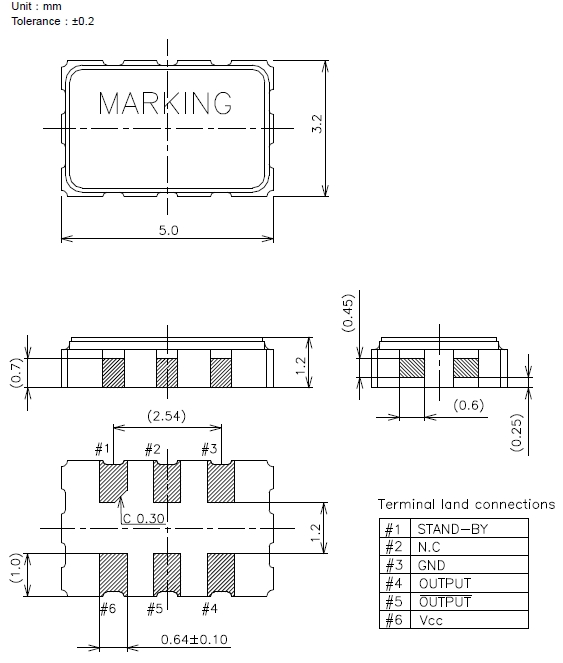

NP5032SC-100MHZ-NSC5403C,6G光通訊晶振,日本電波HCSL振蕩器 尺寸圖
有源晶體振蕩器產品特性：
更多相關日本電波NDK CRYSTAL型號
| Model | Nominal frequency[MHz] | Specification number | Manufacturer | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] | Storage temperature range[℃] | Supply voltage[V] |
| NP5032SB | 148.5MHZ | NSC5401C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 156.25MHZ | NSC5401C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +2.5±0.125 |
| NP5032SB | 100MHZ | NSC5402C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 102.564MHZ | NSC5402C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 125MHZ | NSC5402C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 148.5MHZ | NSC5402C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +3.3±0.33 |
| NP5032SB | 156.25MHZ | NSC5402C | NDK晶振 | 5.0x3.2 | LVDS | -40~85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 100MHZ | NSC5403A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +2.5±0.25 |
| NP5032SC | 102.564MHZ | NSC5403A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +2.5±0.25 |
| NP5032SC | 125MHZ | NSC5403A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +2.5±0.25 |
| NP5032SC | 148.5MHZ | NSC5403A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +2.5±0.25 |
| NP5032SC | 156.25MHZ | NSC5403A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +2.5±0.25 |
| NP5032SC | 100MHZ | NSC5404A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +3.3±0.33 |
| NP5032SC | 102.564MHZ | NSC5404A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +3.3±0.33 |
| NP5032SC | 125MHZ | NSC5404A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +3.3±0.33 |
| NP5032SC | 148.5MHZ | NSC5404A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +3.3±0.33 |
| NP5032SC | 156.25MHZ | NSC5404A | NDK晶振 | 5.0x3.2 | HCSL | 0~+70 | -55~+125 | +3.3±0.33 |
| NP5032SC | 100MHZ | NSC5403B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 102.564MHZ | NSC5403B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 125MHZ | NSC5403B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 148.5MHZ | NSC5403B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 156.25MHZ | NSC5403B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 100MHZ | NSC5404B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 102.564MHZ | NSC5404B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 125MHZ | NSC5404B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 148.5MHZ | NSC5404B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 156.25MHZ | NSC5404B | NDK晶振 | 5.0x3.2 | HCSL | 0~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 100MHZ | NSC5403C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 102.564MHZ | NSC5403C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 125MHZ | NSC5403C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 148.5MHZ | NSC5403C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 156.25MHZ | NSC5403C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +2.5±0.25 |
| NP5032SC | 100MHZ | NSC5404C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 102.564MHZ | NSC5404C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 125MHZ | NSC5404C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 148.5MHZ | NSC5404C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SC | 156.25MHZ | NSC5404C | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | LVDS | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~2100 | NDK晶振 | 5.0x3.2 | CML | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 2.5 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~700 | NDK晶振 | 5.0x3.2 | HCSL | -40~+85 | -55~+125 | 3.3 | |
| NP5032SK,SL,SM,SN | 15~200 | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~200 | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~200 | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 | -55~+125 | 1.8 | |
| NP5032SK,SL,SM,SN | 15~200 | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 | -55~+125 | 2.5 |
