頻率：150.000000MHz
尺寸：7.0x5.0x1.6mm
愛普生7050mm晶振,X1M000411000900,MG7050EAN低功耗晶振，日本進口晶振，EPSON愛普生株式會社，型號：MG7050EAN，編碼為：X1M000411000900，頻率：150.000000MHz，小體積晶振尺寸：7.0x5.0x1.6mm封裝，14墊腳貼片晶振，基于SAW的差分多輸出LV-PECL差分晶體振蕩器，差分晶振，有源晶振，石英晶振，石英晶體振蕩器。本產品是利用鋸波諧振器的基本振蕩的LV-PECL輸出的高頻振蕩器。這實現了頻率為100~700MHz的低抖動和低噪聲，具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低耗能，低損耗，低相位噪聲，高精度，高性能，高品質等特點。石英晶振應用程序 ：GbE、光纖通道、SAS、PCI express 服務器、存儲、路由器/交換機， 網絡、OTN、無線網絡，藍牙模塊、物聯網應用等。

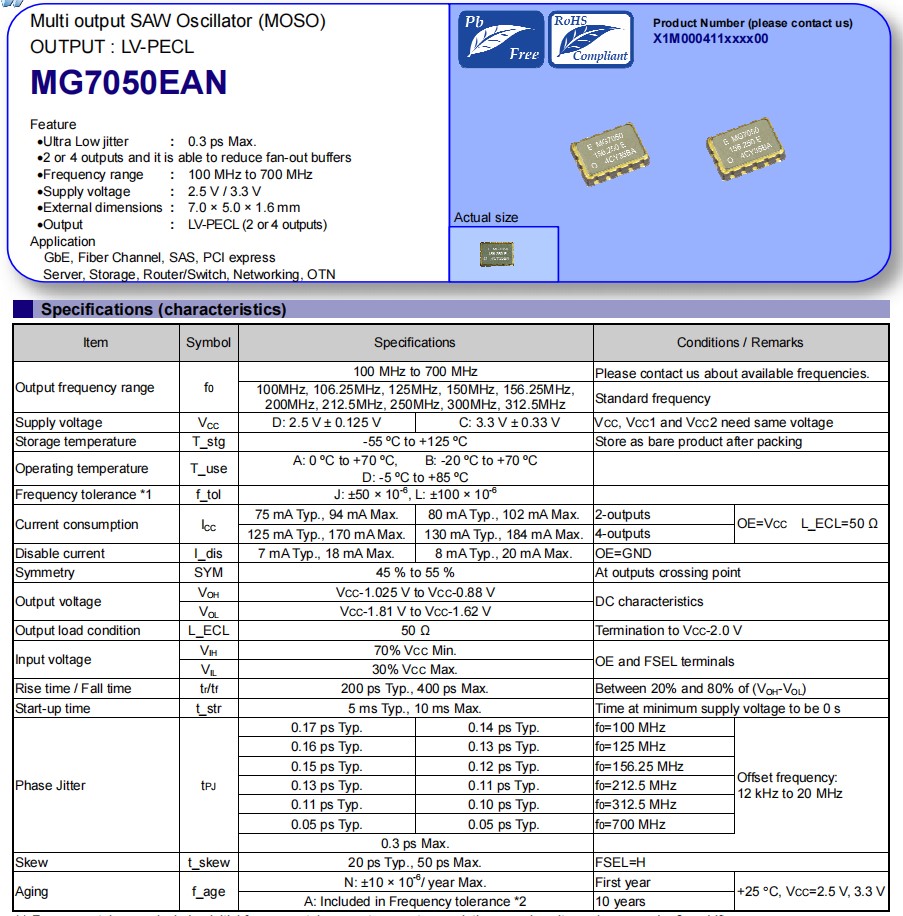

愛普生7050mm晶振,X1M000411000900,MG7050EAN低功耗晶振 參數表
| Item | Symbol | MG7050EAN 規格說明 | Conditions / Remarks | ||
| 150.000MHz | Please contact us about available frequencies. | ||||
| Output frequency range | f0 | 100MHz, 106.25MHz, 125MHz, 150MHz, 156.25MHz, | Standard frequency | ||
| 200MHz, 212.5MHz, 250MHz, 300MHz, 312.5MHz | |||||
| Supply voltage | VCC | D: 2.5 V ± 0.125 V | C: 3.3 V ± 0.33 V | VCC, VCC1 and VCC2 need same voltage | |
| Storage temperature | T_stg | -55 ºC to +125 ºC | Store as bare product after packing | ||
| Operating temperature | T_use | A: 0 ºC to +70 ºC, B: -20 ºC to +70 ºC | |||
| D: -5 ºC to +85 ºC | |||||
| Frequency tolerance *1 | f_tol | J: ±50 × 10-6, L: ±100 × 10-6 | |||
| Current consumption | ICC | 75 mA Typ., 94 mA Max. | 80 mA Typ., 102 mA Max. | 2-outputs | OE=VCC L_ECL=50Ω |
| 125 mA Typ., 170 mA Max. | 130 mA Typ., 184 mA Max. | 4-outputs | |||
| Disable current | I_dis | 7 mA Typ., 18 mA Max. | 8 mA Typ., 20 mA Max. | OE=GND | |
| Symmetry | SYM | 45 % to 55 % | At outputs crossing point | ||
| Output voltage | VOH | VCC-1.025 V to VCC-0.88 V | DC characteristics | ||
| VOL | VCC-1.81 V to VCC-1.62 V | ||||
| Output load condition | L_ECL | 50Ω | Termination to VCC-2.0 V | ||
| Input voltage | VIH | 70% VCC Min. | OE and FSEL terminals | ||
| VIL | 30% VCC Max. | ||||
| Rise time / Fall time | tr/tf | 200 ps Typ., 400 ps Max. | Between 20% and 80% of (VOH-VOL) | ||
| Start-up time | t_str | 5 ms Typ., 10 ms Max. | Time at minimum supply voltage to be 0 s | ||
| 0.17 ps Typ. | 0.14 ps Typ. | f0=100 MHz | |||
| 0.16 ps Typ. | 0.13 ps Typ. | f0=125 MHz | |||
| 0.15 ps Typ. | 0.12 ps Typ. | f0=156.25 MHz | Offset frequency: 12 kHz to 20 MHz | ||
| Phase Jitter | tPJ | 0.13 ps Typ. | 0.11 ps Typ. | f0=212.5 MHz | |
| 0.11 ps Typ. | 0.10 ps Typ. | f0=312.5 MHz | |||
| 0.05 ps Typ. | 0.05 ps Typ. | f0=700 MHz | |||
| 0.3 ps Max. | |||||
| Skew | t_skew | 20 ps Typ., 50 ps Max. | FSEL=H | ||
| Aging | f_age | N: ±10 × 10-6/ year Max. | First year | +25 °C, VCC=2.5 V, 3.3 V | |
| A: Included in Frequency tolerance *2 | 10 years | ||||
愛普生7050mm晶振,X1M000411000900,MG7050EAN低功耗晶振 尺寸圖
愛普生7050mm晶振,X1M000411000900,MG7050EAN低功耗晶振
產品特點：
超低抖動： 0.3ps Max
2或4輸出，它能夠減少風扇輸出緩沖器
頻率范圍： 100MHz到700MHz
電源電壓： 2.5V / 3.3V
外部尺寸： 7.0×5.0×1.6mm
輸出： LV-PECL（2或4輸出）差分貼片晶振
Pb免費
符合歐盟RoHS的指令
| 編碼 | 晶振生產廠家 | 型號 | 頻率 | 尺寸 | 輸出方式 |
| X1G004511000100 | EPSON晶振 | SG7050EBN | 156.250000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511000200 | EPSON晶振 | SG7050EBN | 125.000000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511000300 | EPSON晶振 | SG7050EBN | 100.000000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511000400 | EPSON晶振 | SG7050EBN | 106.250000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511000500 | EPSON晶振 | SG7050EBN | 122.880000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511000700 | EPSON晶振 | SG7050EBN | 150.000000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511000800 | EPSON晶振 | SG7050EBN | 155.520000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511001100 | EPSON晶振 | SG7050EBN | 114.285000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511001200 | EPSON晶振 | SG7050EBN | 156.253906 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511060100 | EPSON晶振 | SG7050EBN | 156.250000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511060200 | EPSON晶振 | SG7050EBN | 125.000000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1G004511060300 | EPSON晶振 | SG7050EBN | 100.000000 MHz | 7.00 x 5.00 x 1.70 mm | LV-PECL |
| X1M000411000200 | EPSON晶振 | MG7050EAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411000500 | EPSON晶振 | MG7050EAN | 150.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411000600 | EPSON晶振 | MG7050EAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411000700 | EPSON晶振 | MG7050EAN | 669.325580 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411000800 | EPSON晶振 | MG7050EAN | 150.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411000900 | EPSON晶振 | MG7050EAN | 150.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001000 | 振蕩器 | MG7050EAN | 150.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001100 | EPSON晶振 | MG7050EAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001200 | EPSON晶振 | MG7050EAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001300 | EPSON晶振 | MG7050EAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001400 | EPSON晶振 | MG7050EAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001500 | EPSON晶振 | MG7050EAN | 125.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001600 | EPSON晶振 | MG7050EAN | 200.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001700 | EPSON晶振 | MG7050EAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001800 | EPSON晶振 | MG7050EAN | 125.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411001900 | EPSON晶振 | MG7050EAN | 200.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411002000 | EPSON晶振 | MG7050EAN | 156.253906 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411002100 | EPSON晶振 | MG7050EAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411002200 | EPSON晶振 | MG7050EAN | 125.000000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411002300 | EPSON晶振 | MG7050EAN | 156.253906 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411002400 | EPSON晶振 | MG7050EAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411002500 | EPSON晶振 | MG7050EAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
| X1M000411002600 | EPSON晶振 | MG7050EAN | 312.500000 MHz | 7.00 x 5.00 x 1.60 mm | LV-PECL |
